Code: SIP05795

SIP PRO 200A AC/DC TIG/ARC Welder with Pulse | 158h x 280w x 138d mm | 230v (16A) - (Not supplied)

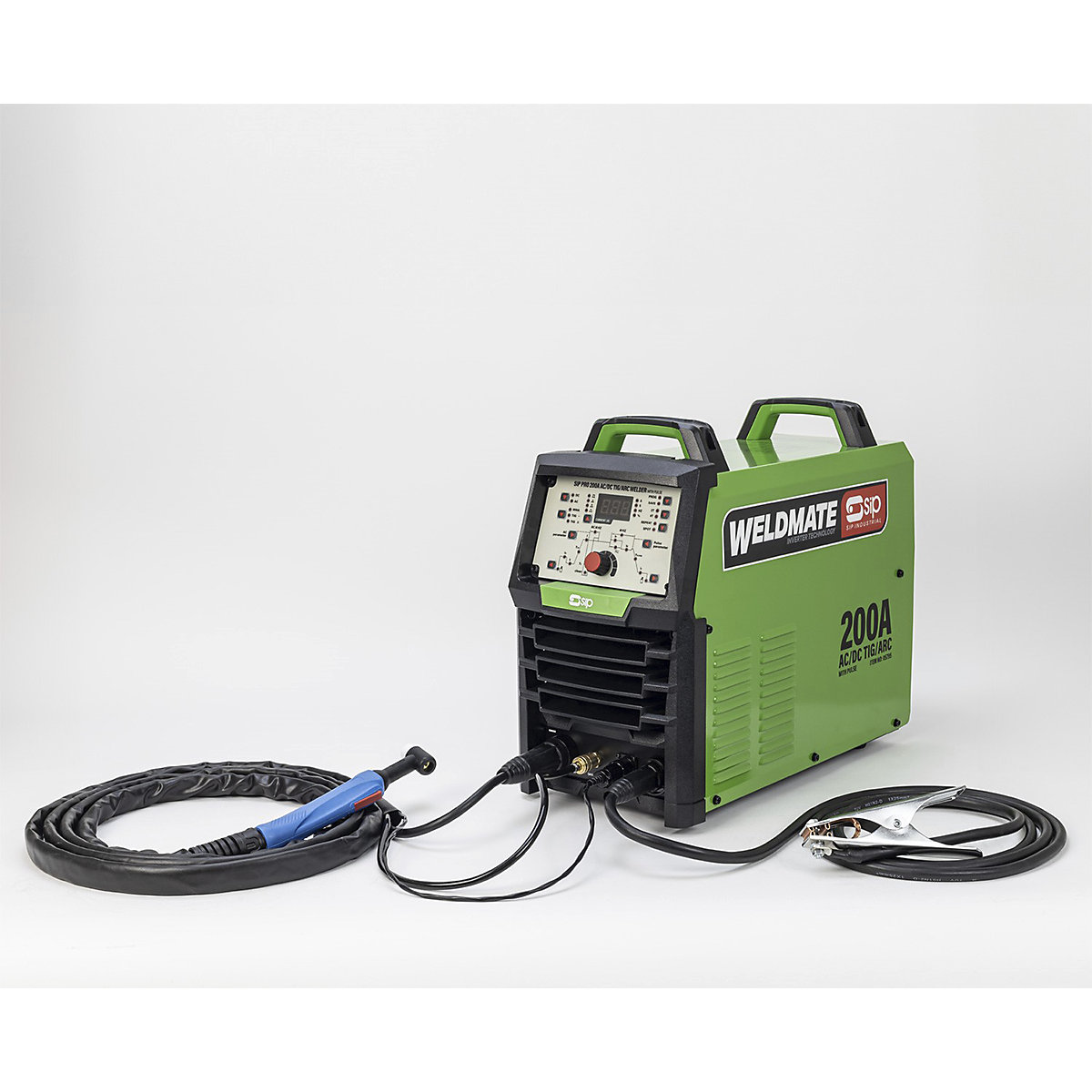

SIP PRO 200A AC/DC TIG/ARC Welder with Pulse
Code: SIP05795
Product description

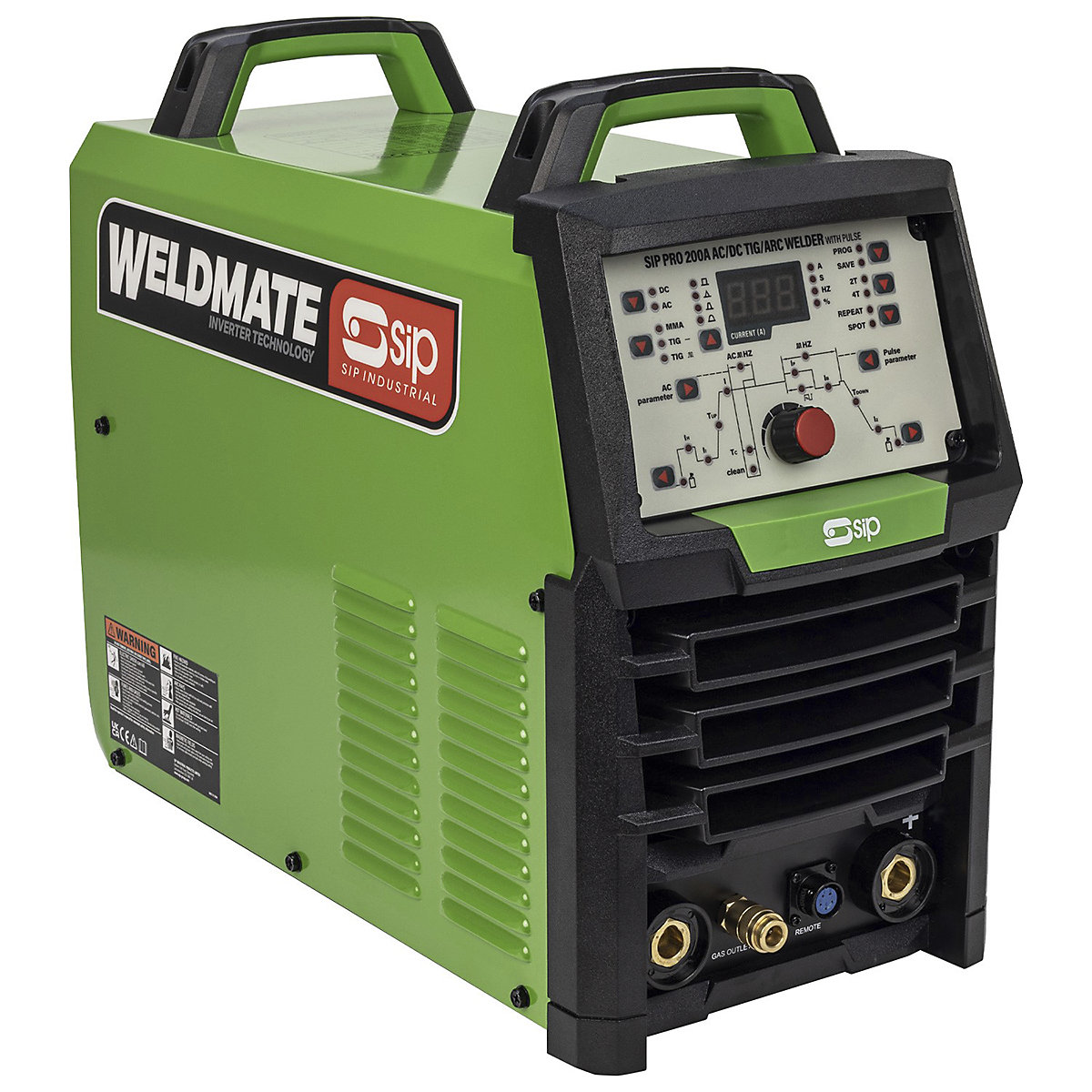

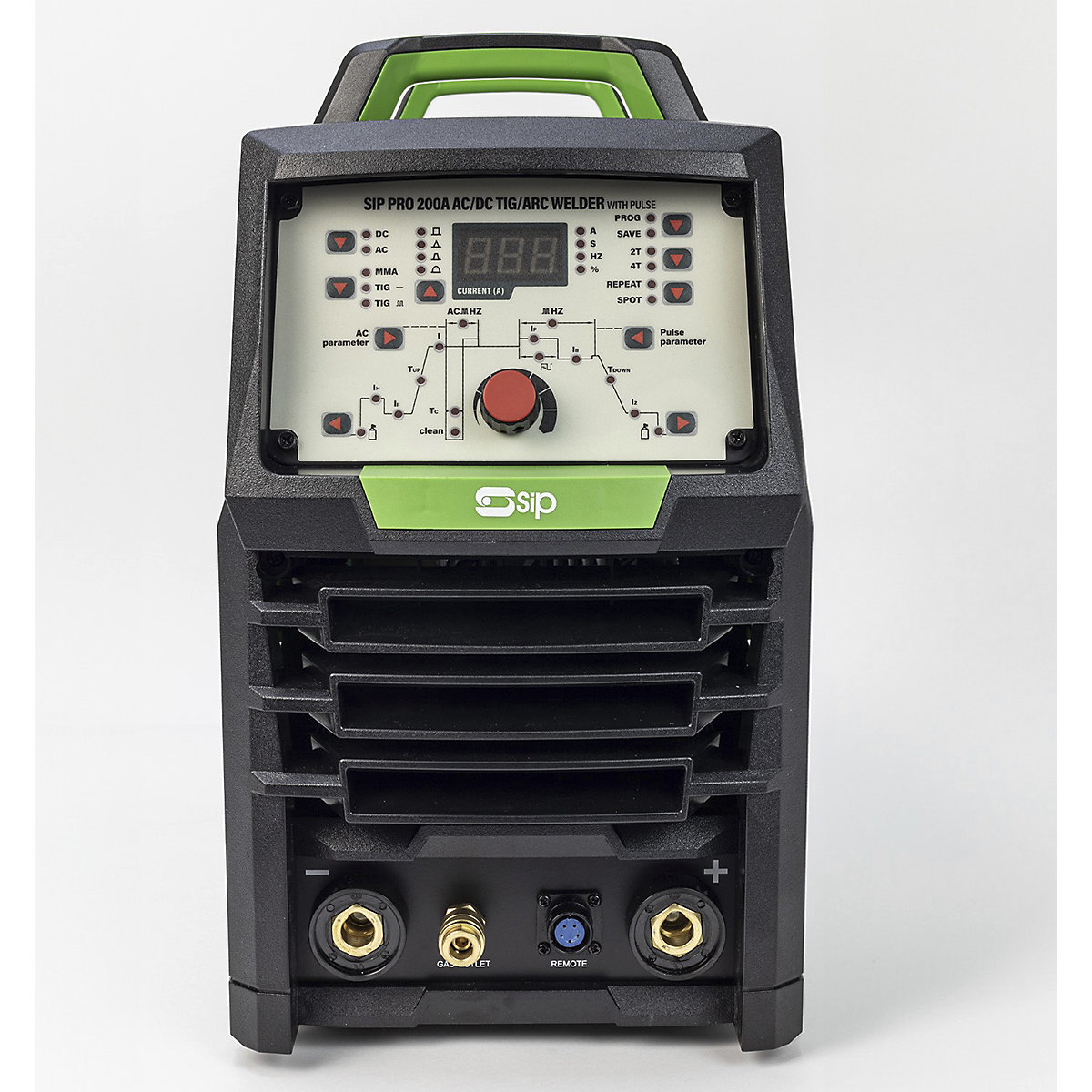

The SIP WELDMATE® PRO 200A AC/DC TIG/ARC Welder with Pulse is a dual process welder with AC/DC TIG capability for professional applications. This powerful inverter welder can be used for both TIG and ARC welding processes for outstanding versatility in demanding environments.

  • AC/DC welding for greater versatility in professional applications
  • Dual TIG and ARC processes for flexibility at high duty cycles
  • TIG Pulse facility for a smoother and more controlled weld

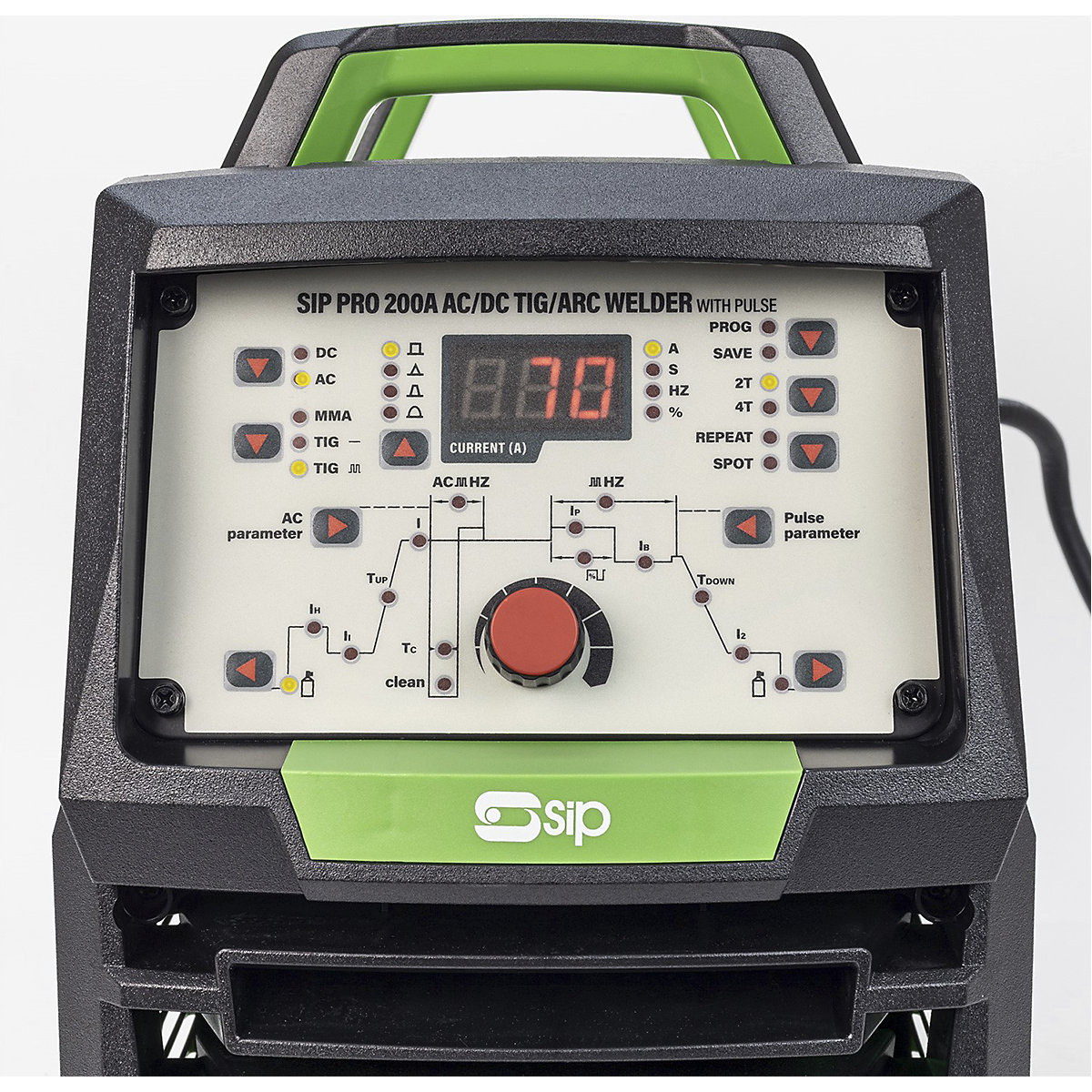

  • Multi-stage pulse parameter adjustment for greater welding arc control
  • 4 AC waveforms for superior welding control with different material types
  • Suitable for aluminium, stainless steel, mild steels, brass and copper
  • SIP 2-Year Standard Silver Warranty

Please Note: Foot Pedal Control is sold separately, code: SIP05795

Specifications

Specifications     SIP PRO 200A AC/DC TIG/ARC Welder with Pulse

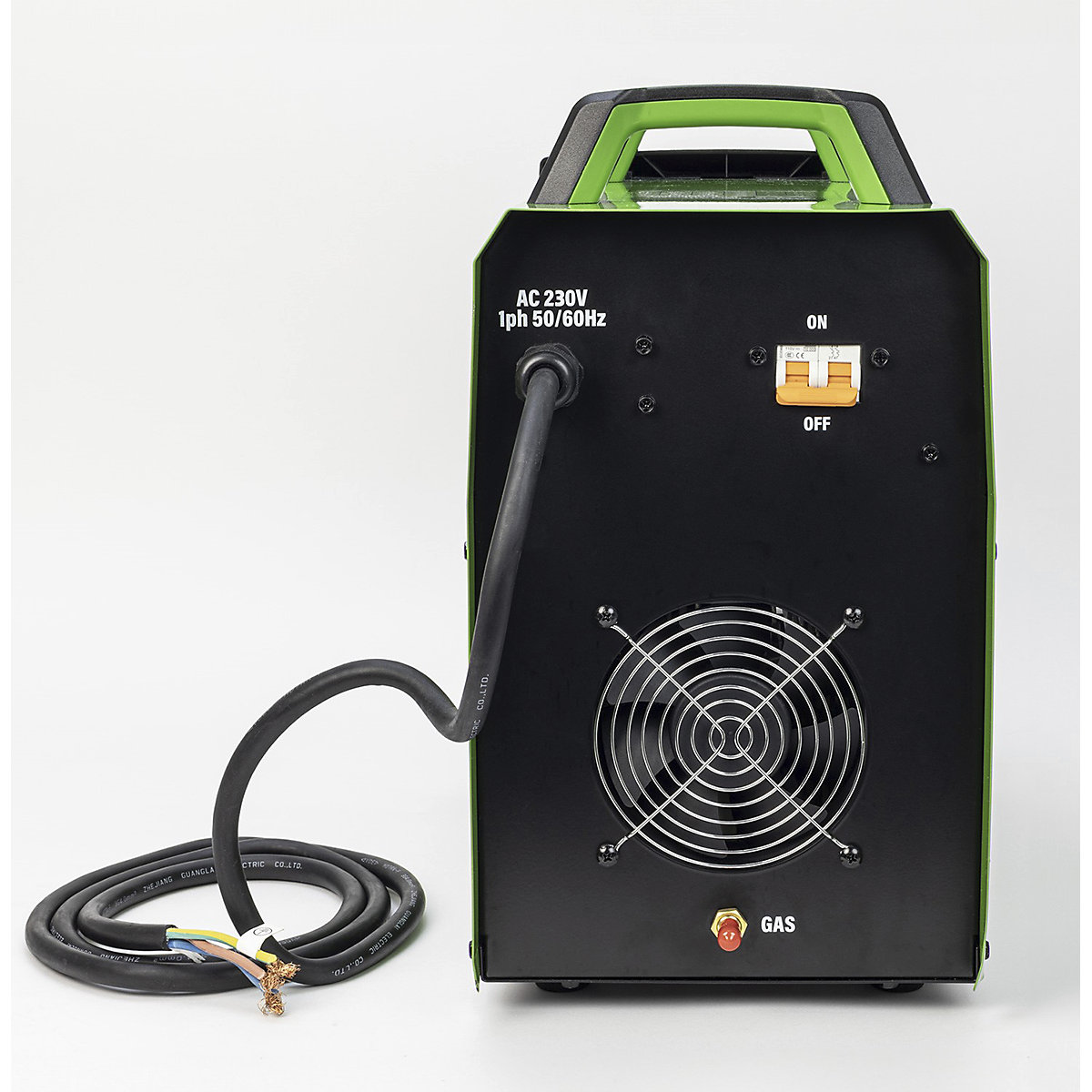

Input Supply: 230v (16A) (not supplied))
Output Current (TIG AC/DC): 5A - 200A (AC) / 5A - 200A (DC)
Output Current (MMA DC): 30A - 160A (DC)
TIG AC/DC
Duty Cycle @ 40°C / 10min 200A @ 25% / 150A @ 60% / 120A @ 100% (TIG AC/DC)
Duty Cycle @ 40°C / 10min 160A @ 25% / 110A @ 60% / 90A @ 100% (MMA)
Duty Cycle @ 20°C / 10min 200A @ 60% / 150A @ 100% (TIG AC/DC)
Duty Cycle @ 20°C / 10min 160A @ 60% / 130A @ 100% (MMA)
Protection: IP21S/H
Net Weight: 15.90kg
Gross Weight: 17.50kg
Product Dimensions: 395h x 480w x 225d mm
Packaged Dimensions: 440h x 560w x 330d mm
‌
‌
‌
‌
‌
