Code: SESFC500COMBO

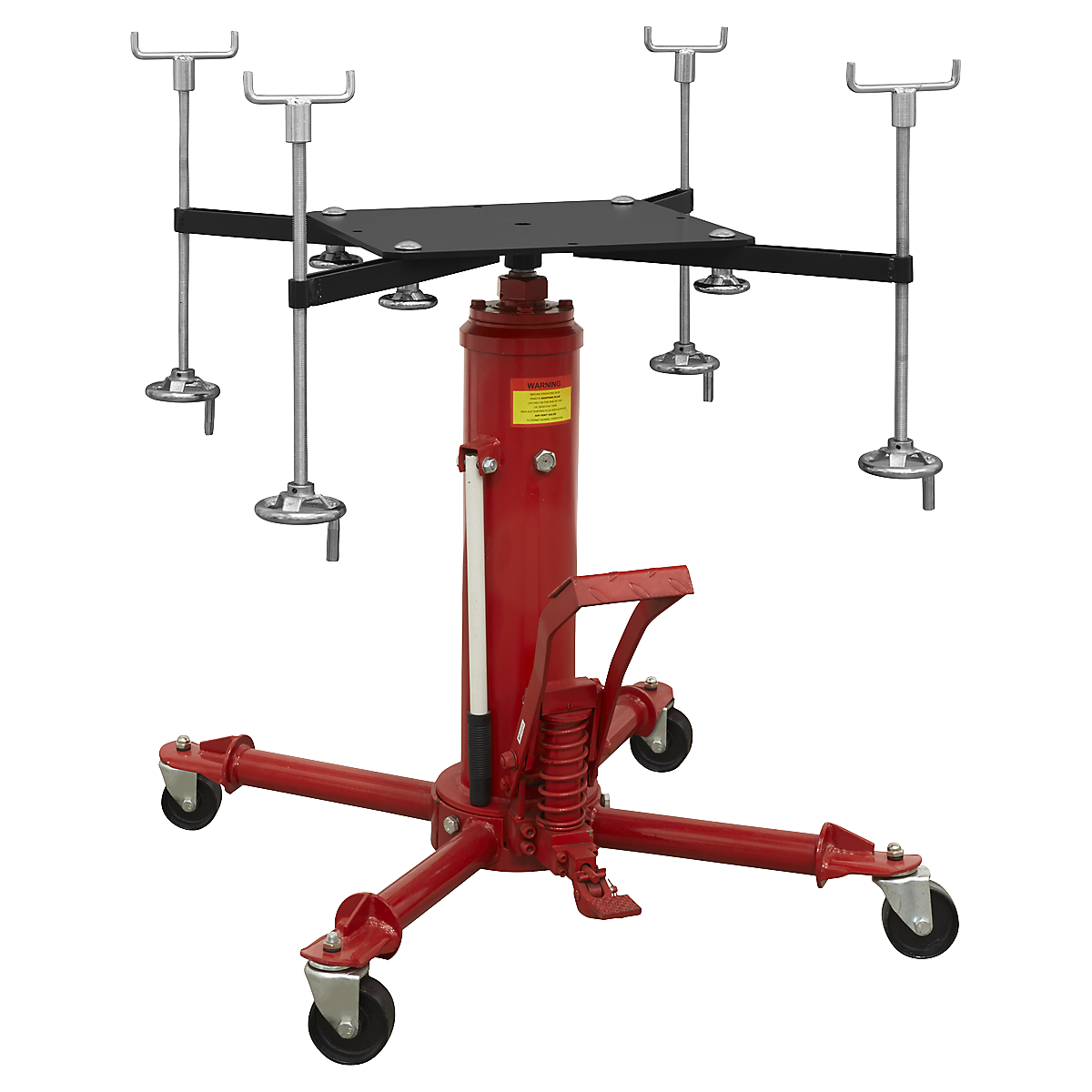

Sealey Subframe Cradle and 500kg Transmission Jack Combo

Sealey Subframe Cradle and 500kg Transmission Jack Combo
Delivery time: 4-5 Working Days
Product description

Telescopic Ram - a two-stage ram reduces the clearance.

  • High Speed Lift - quick lift, when unladen, reducing the foot pumps required to meet the load. But when laden slows to give control and accuracy
  • Foot Pedal Operation - keeping hands free for fixings and adjustments
  • Safe - Spring loaded dead man's safety release control reduces the risk of inadvertent lowering
  • Highly Manoeuvrable - large, smooth running castors, make positioning quick and easy
  • Versatile Adaptor - Fully adjustable Subframe/Engine support and supplied with various designs of fittings to suit different applications
  • Easy Assembly - the adaptor can be fitted and removed from the transmission jack with ease as required
  • Will assist in the removal and fitting of complete engine assemblies, rear axles, gearboxes, fuel tanks, exhaust systems and other awkward loads
  • Labour saving design allows many jobs to be carried out by one person

Specifications

SESFC500COMBO
Base Size: 1000 x 1000mm
Capacity: 500TTJ - 500kg and SFC01 - 450kg
Fixed/Adjustable Saddle: Adjustable
Maximum Saddle Height: 1875mm
Minimum Saddle Height: 890mm
Nett Weight: 95.5kg
Optional Accessories: N/A
Pump Strokes to Maximum Height: N/A
Ram Extensions: 2
Saddle Adjustment - Left-to-Right: 65mm
Saddle Tilt - Backward: 22°
Saddle Tilt - Forward: 28°
‌
‌
‌
‌
‌
