Code: KKMPBGY1

Metal Parts Bin | Grey | 75h x 103w x 165d mm

Metal Parts Bins with Grey Painted Finish
Metal Parts Bins with Grey Painted Finish, Metal Parts Bins with Grey Painted Finish, Metal Parts Bin | Grey | 75h x 103w x 165d mm-0
Metal Parts Bins with Grey Painted Finish (Product illustration 2)-1
Metal Parts Bins with Grey Painted Finish (Product illustration 3)-2
Metal Parts Bins with Grey Painted Finish (Product illustration 4)-3
Height [mm]
Width [mm]
Depth [mm]
Delivery time: 4-7 Working Days
Product description

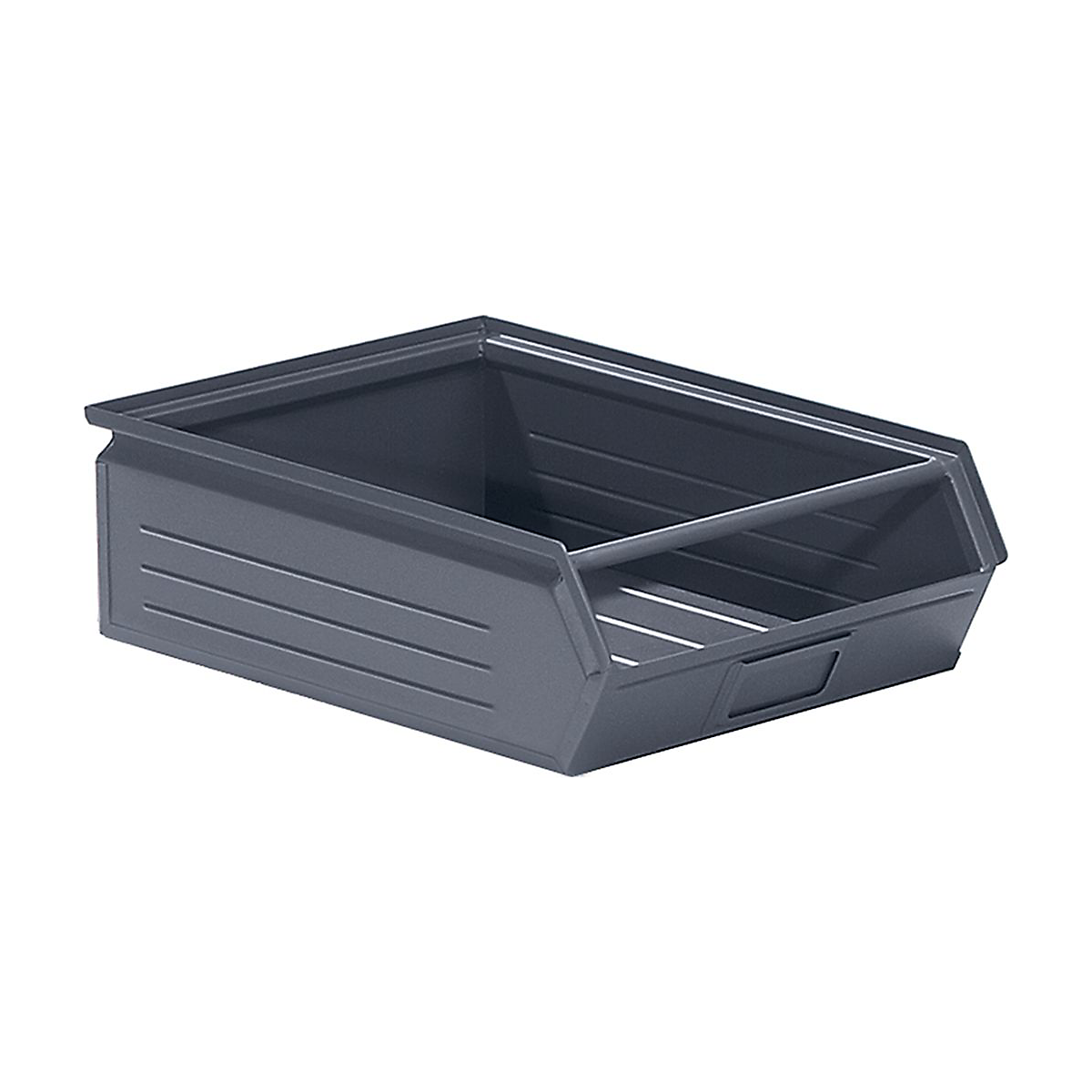

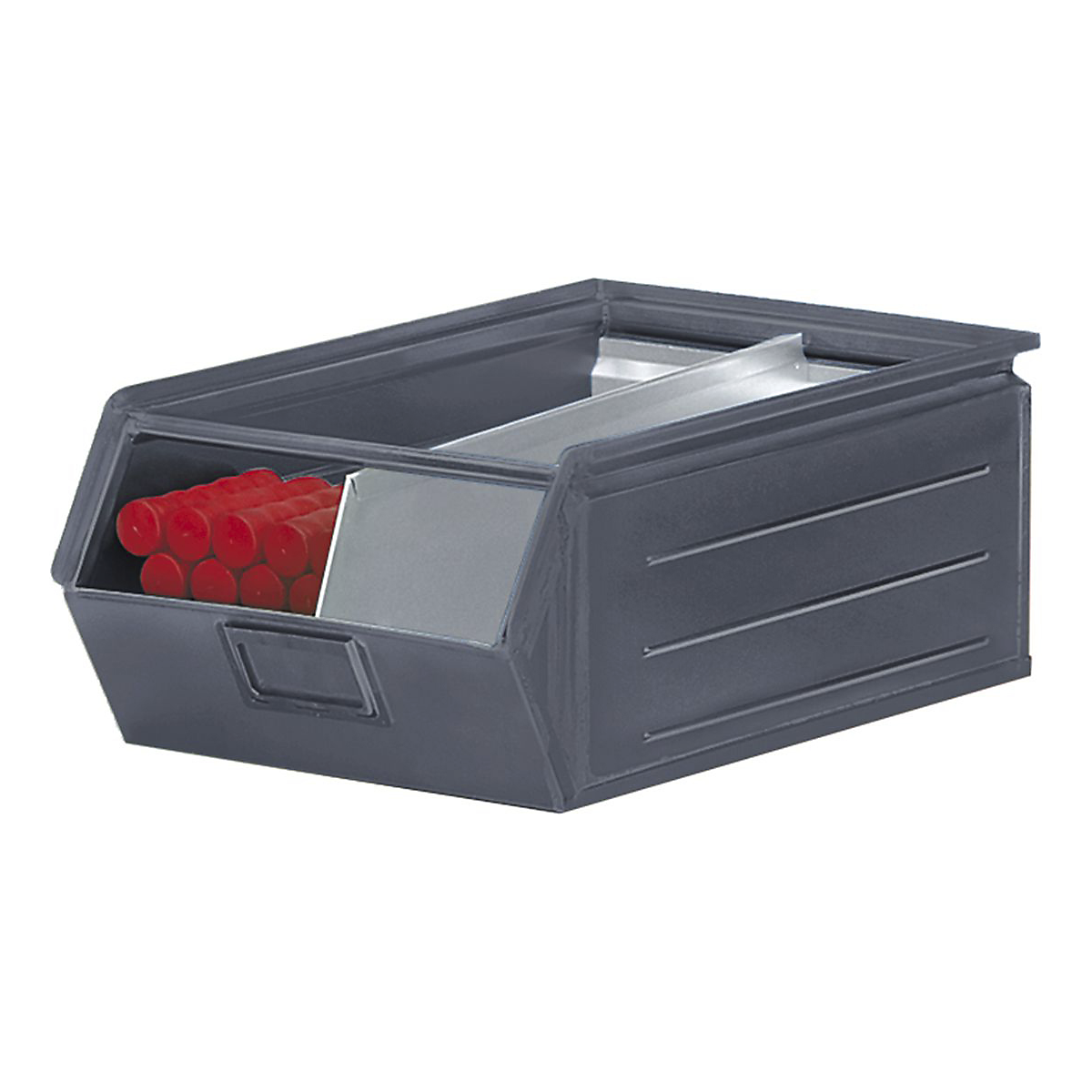

Open-fronted part bins manufactured from sheet steel. Designed for colour co-ordinated storage and for intensive use in harsher working environments

  • Available in 9 different sizes/capacities
  • 3-sided stacking ledge for stable and secure stacking
  • Precision-welded corners
  • Riveted carrying rod and folding rear handle*
  • Card insert holder
  • Suitable for use with roller conveyors
  • Painted Basalt Grey finish (RAL 7012)
  • Temperature resistance: -30°C to +120°C (non-naked flame)
  • Maximum load capacity: 10-50kg
  • Maximum stacking load: 1000kg

*Not available with the 2 smallest bin sizes (0.8 and 2.6 Litres)

Stock Code Capacity External Dimensions Internal Dimensions
KKMPBGY1 0.8l 75h x 103w x 165d mm 65h x 80w x 155d mm
KKMPBGY2 2.6l 130h x 148w x 240d mm 120h x 125w x 225d mm
KKMPBGY3 7.2l 145h x 210w x 350d mm 135h x 180w x 330d mm
KKMPBGY4 10l 200h x 210w x 363d mm 185h x 180w x 350d mm

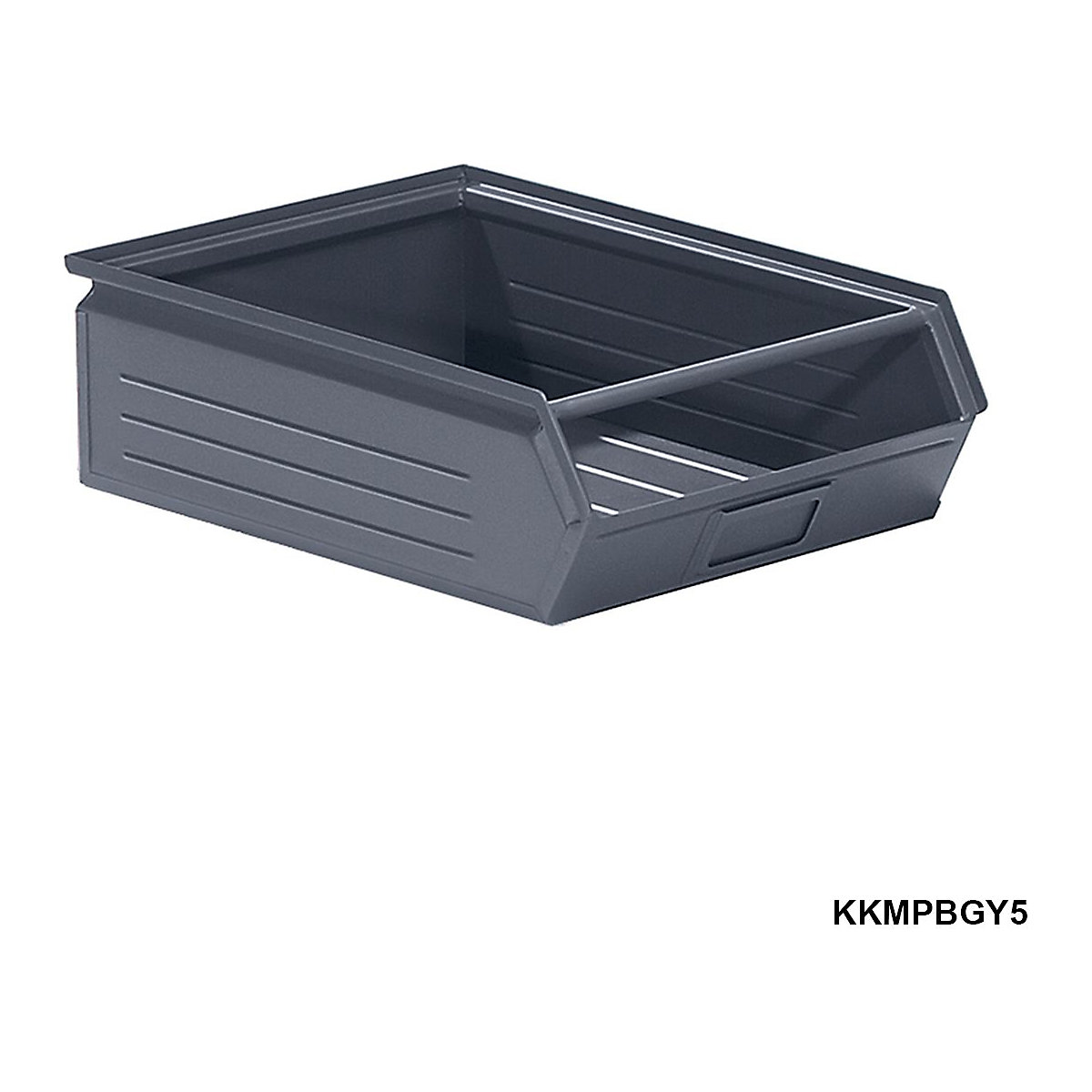

KKMPBGY5 16l 145h x 310w x 504d mm 130h x 280w x 485d mm

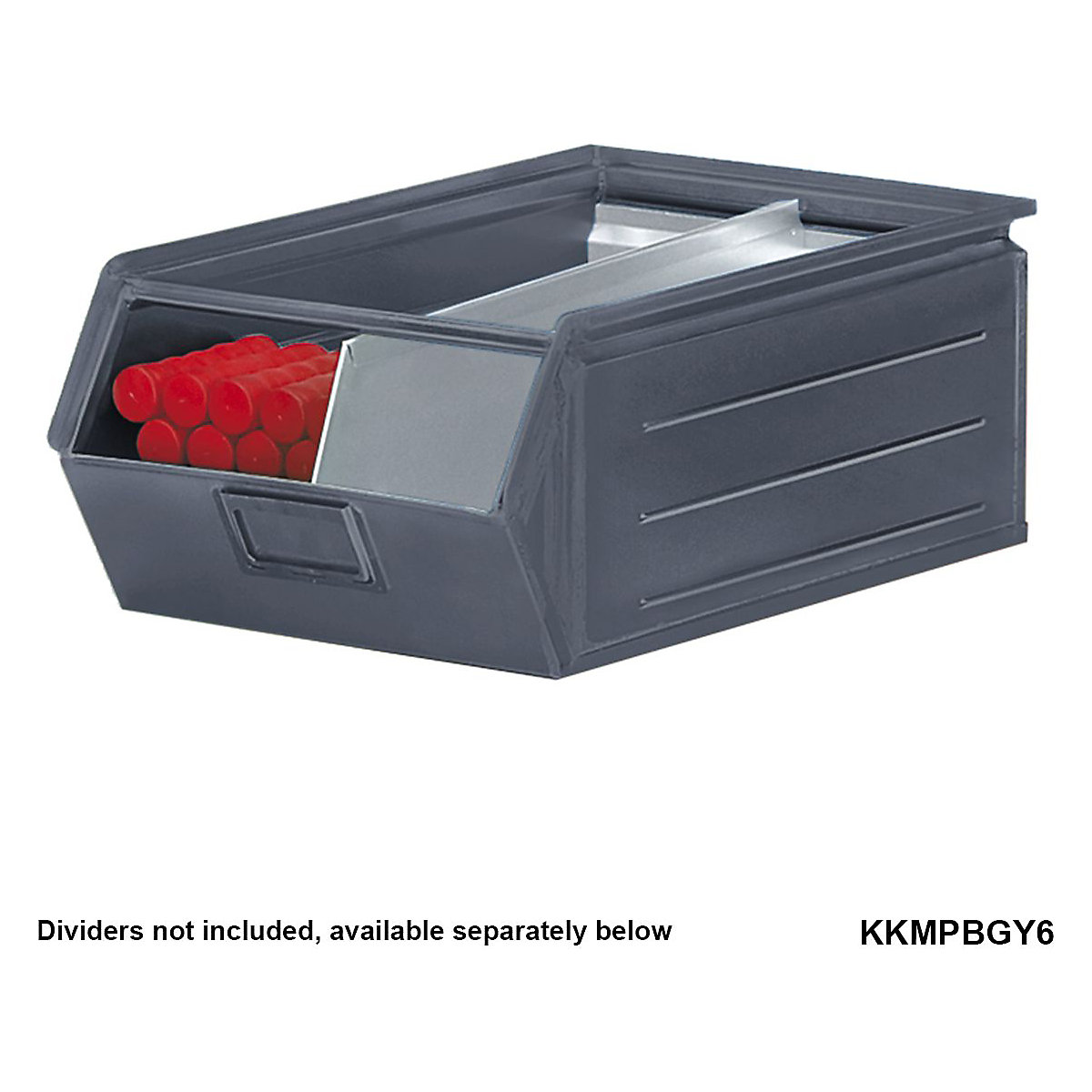

KKMPBGY6 23l 200h x 310w x 515d mm 185h x 280w x 500d mm
KKMPBGY7 37l 300h x 310w x 544d mm 290h x 280w x 530d mm
KKMPBGY8 55.5l 300h x 460w x 544d mm 290h x 430w x 530d mm

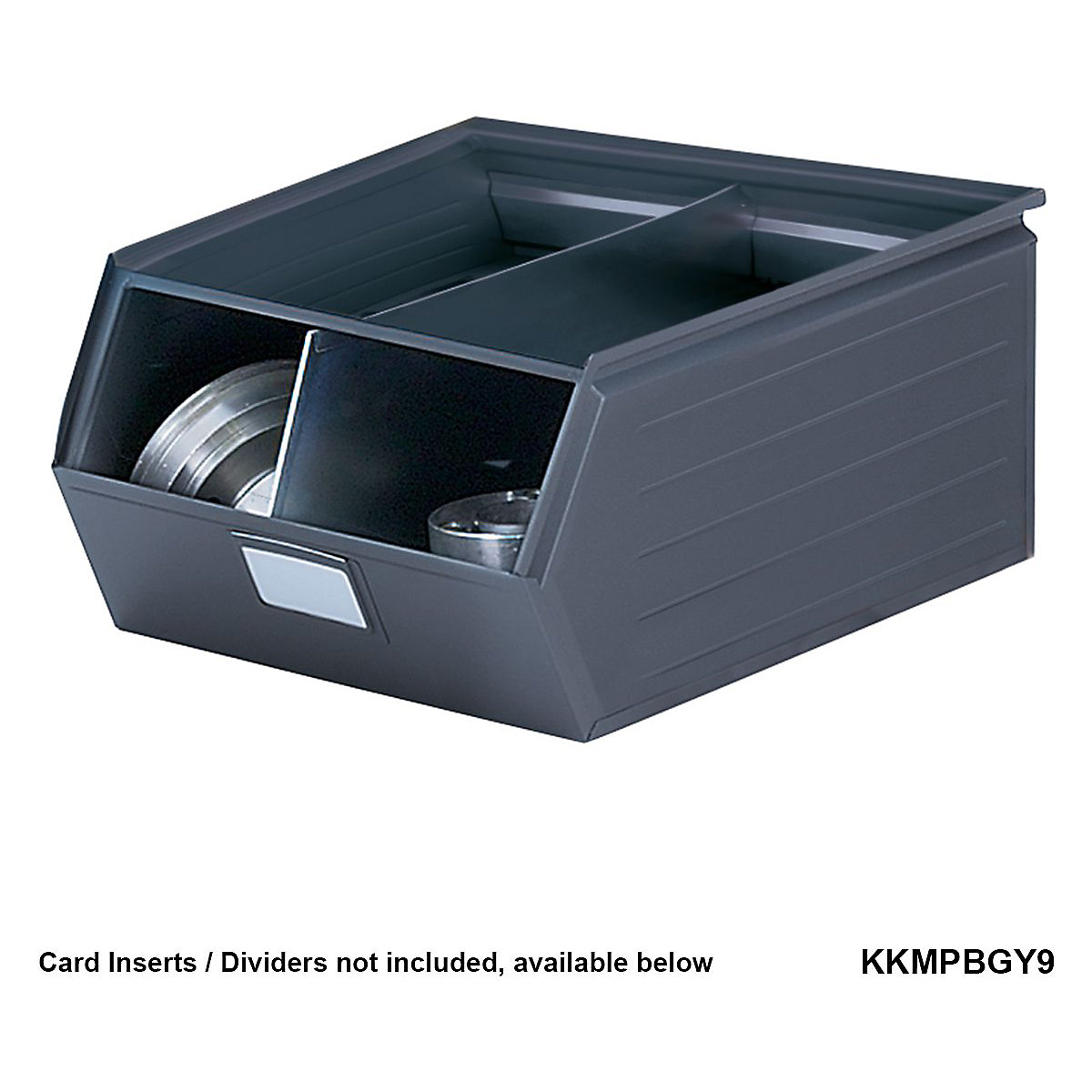

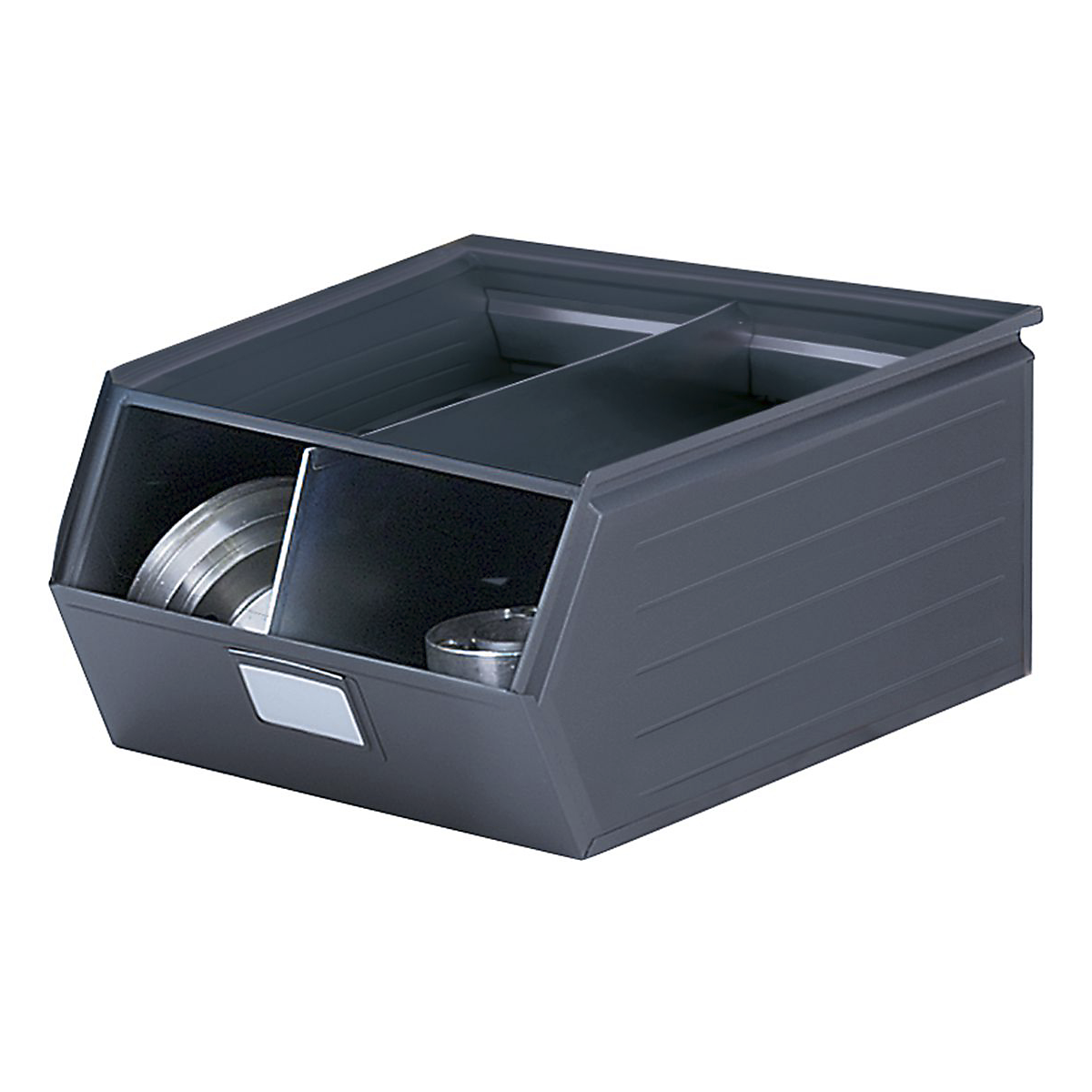

KKMPBGY9 74l 300h x 450w x 700d mm 290h x 430w x 690d mm

Please note: this product is made to order and therefore cannot be cancelled once ordered. As these items are made specifically to your request, they are also excluded from our returns policy unless damaged or faulty. Please contact our friendly sales team should you need further help or advice before ordering: 0333 200 5299.

‌
‌
‌
‌
‌
