Code: GHD2515S

Medium-Duty Galvanised Shelving Starter Bay, 5 Shelves, 2500h x 1100w x 500d mm, 310kg UDL

(5)

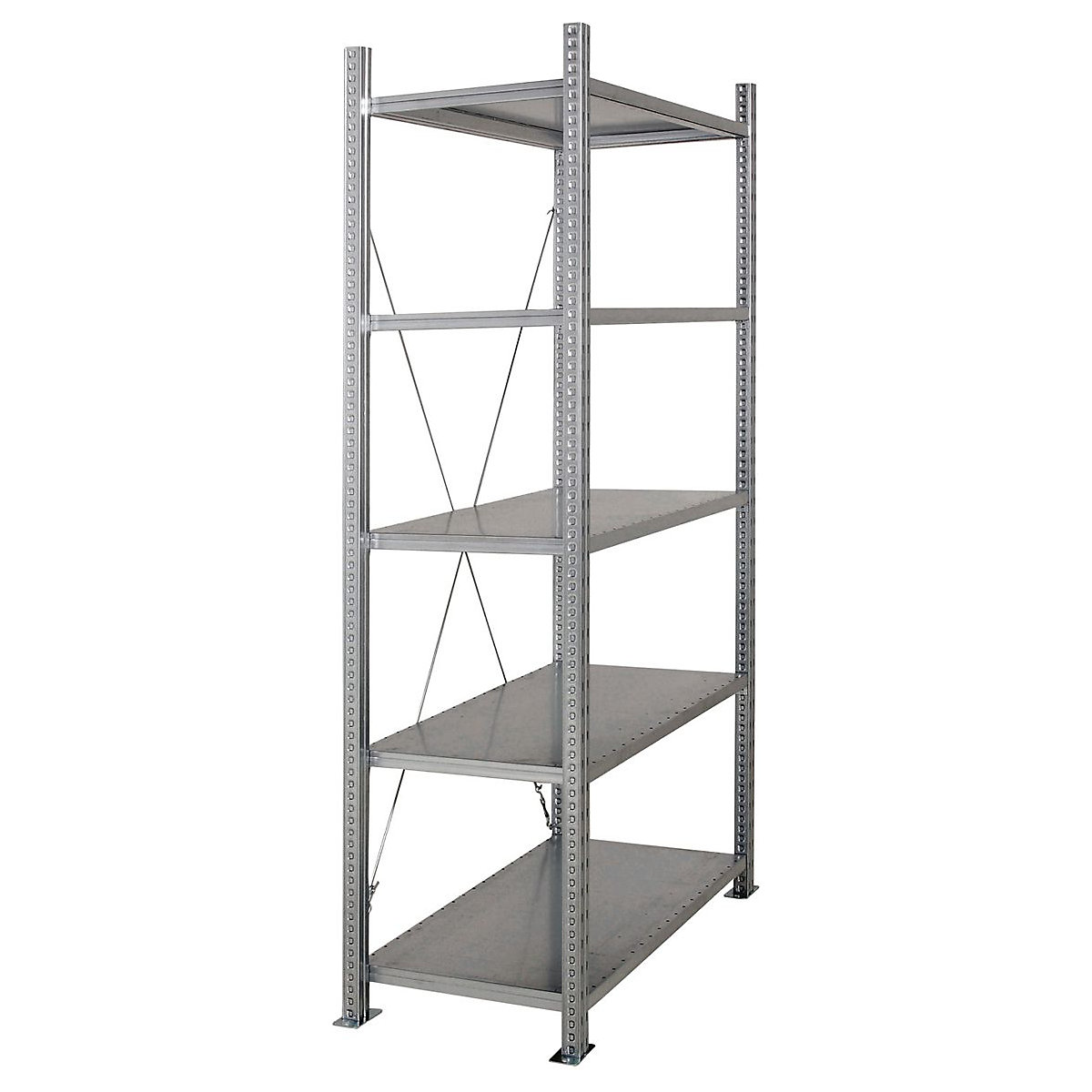

Medium-Duty 2500mm High Galvanised Shelving System Starter Bay
Depth [mm]
Code: GHD2515S
Product description

Made from durable galvanised steel, this system boasts resistance to moisture and rust; the permanent solution for storing items in harsher environments.

  • Up to 330kg per shelf/1650kg per bay UDL
  • Corrosion-resistant galvanised steel
  • 5x precision folded steel shelves
  • Use with our extension systems to create longer-length storage
  • Extra shelves and reinforcement beams also available
  • 2500mm high industrial use galvanised shelving
  • Commonly used in freezers, cold stores, covered outdoor storage, and areas prone to damp
  • Also suitable for storing oily or greasy products

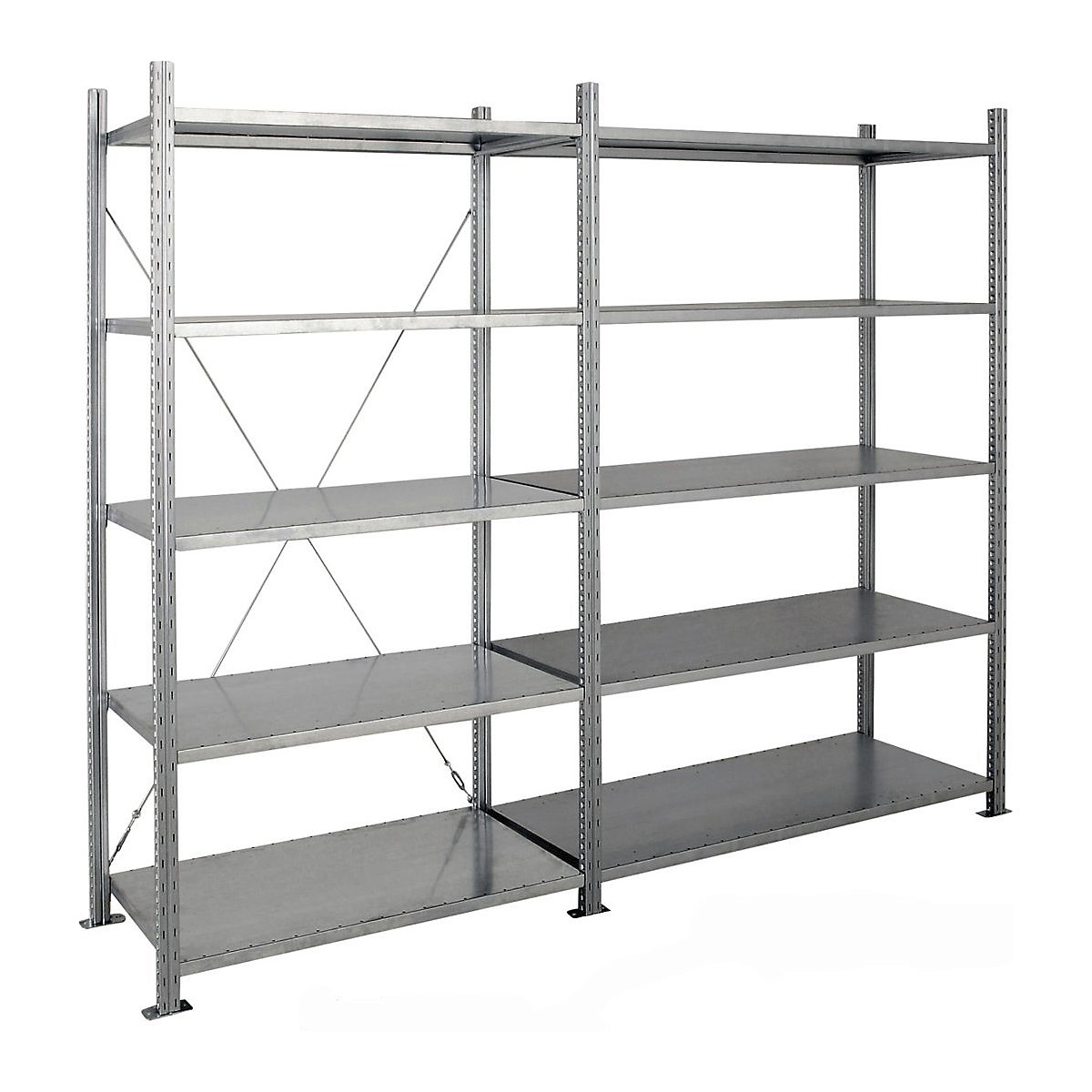

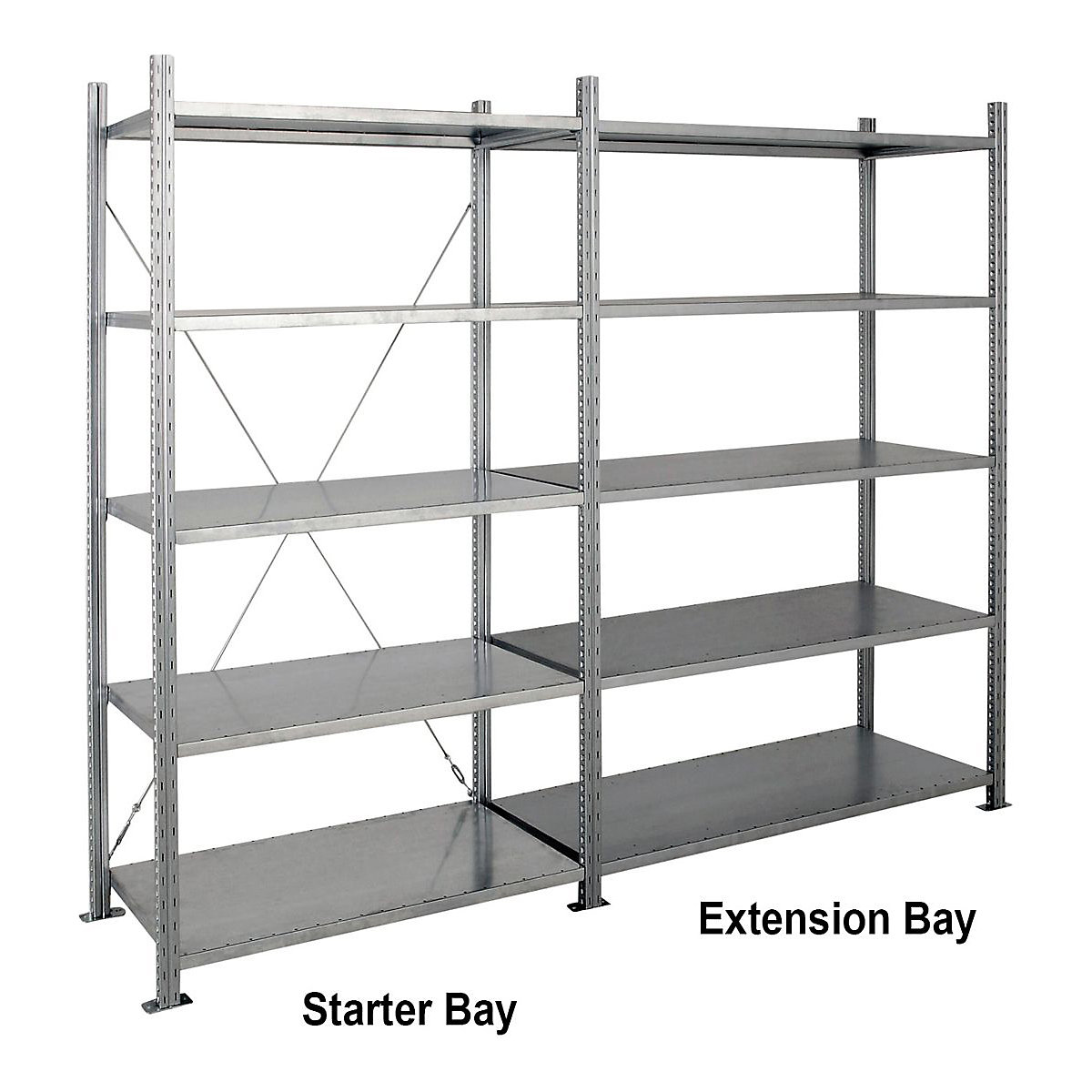

  • This system works as a Starter bay and add-on Extension build system
  • Extensions join onto a starter bays to create continuous, cost-effective storage
  • Each bay includes 5x single-piece, precision-folded steel shelves
  • Bay height: 2500mm

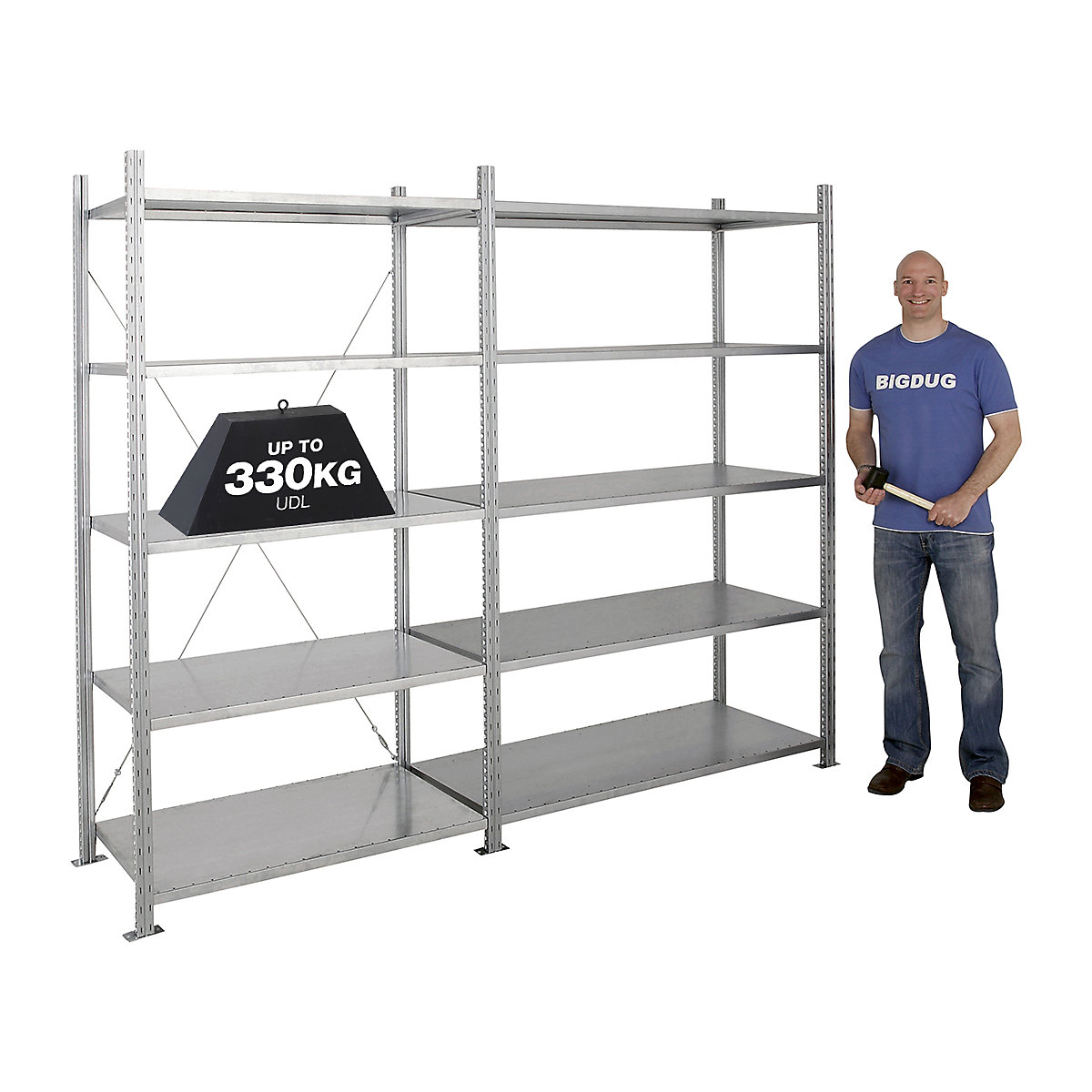

  • Load capacity per shelf: up to 330kg UDL*
  • Shelf capacity can be increased to 350kg UDL* with the addition of reinforcing beams
  • Fully-adjustable shelves, adjust in height every 25mm

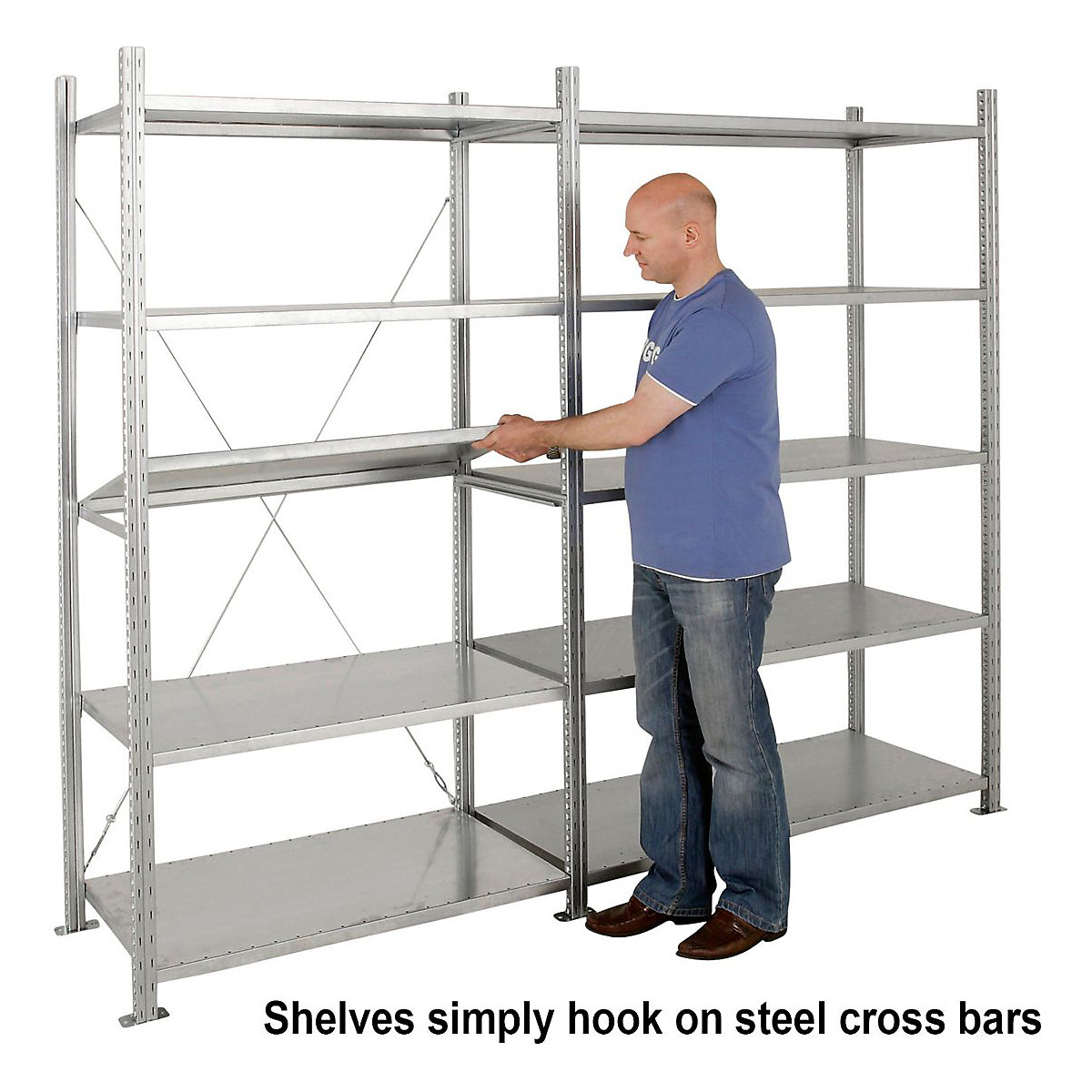

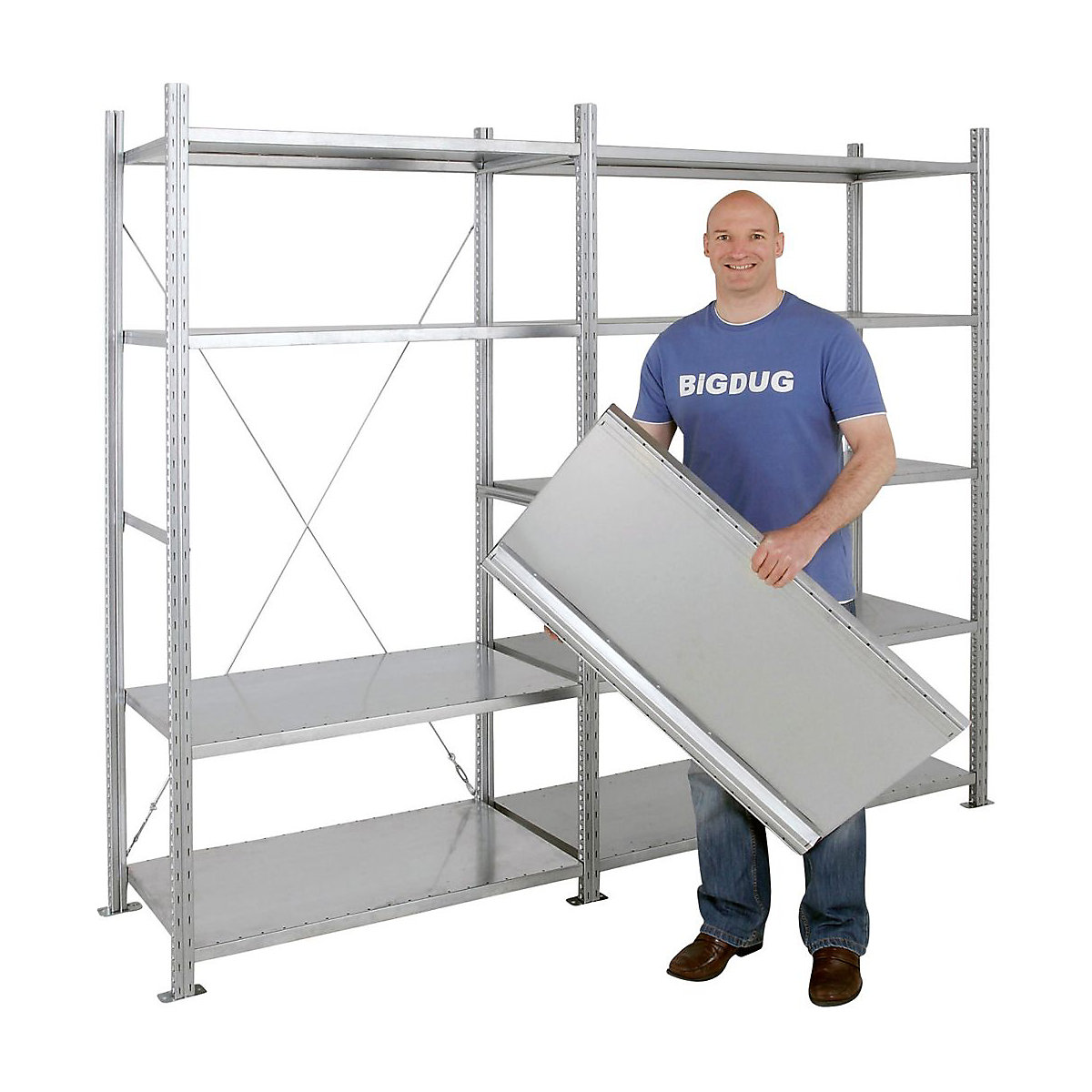

  • Simple boltless assembly - shelves simply hook onto the steel cross bars

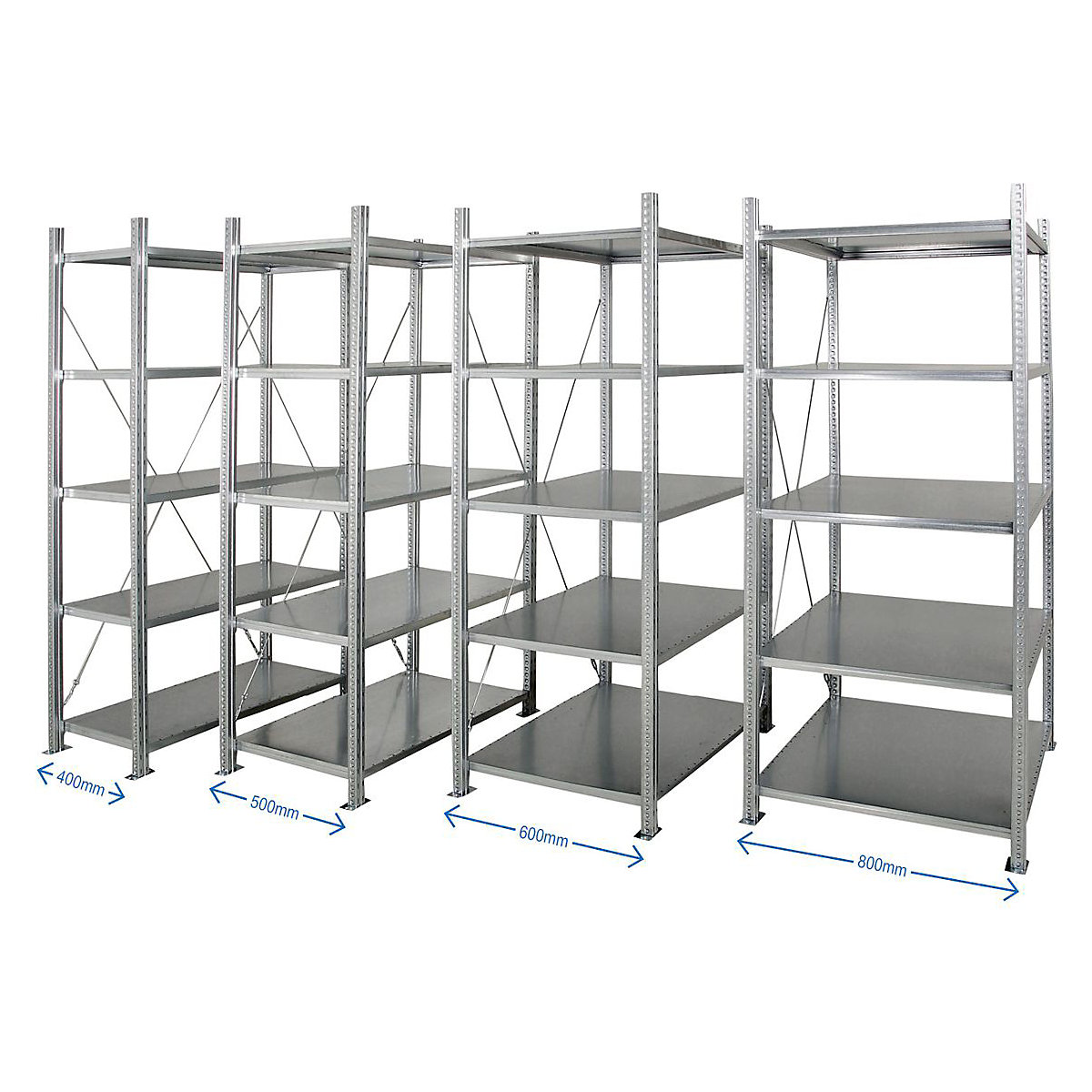

  • Available in 2x widths & 5x depths
  • Recommended accessories including extension bays, extra shelves & reinforcing beams available separately
  • Tested and certified to FEM industrial-use standards

*UDL = Uniformly Distributed Load

Please Note: Starter Bays are supplied with cross-bracing. You will require additional cross-bracing every 4th bay if extending your units. Cross-bracing can be purchased separately for Extension bays if required.

Shelving Specifications

Data Field 1100mm Width
Upright Type One Piece
Upright Steel Thickness 1mm
Beam Steel Thickness 1mm
Shelf Adjustment Increments 25mm
Shelf Thickness 32mm
Steel Shelf Panel Thickness 0.6mm
Total Bay Capacity 2000h mm 3000kg*
Total Bay Capacity 2500h mm 3000kg*
Total Bay Capacity 3000h mm 3000kg*

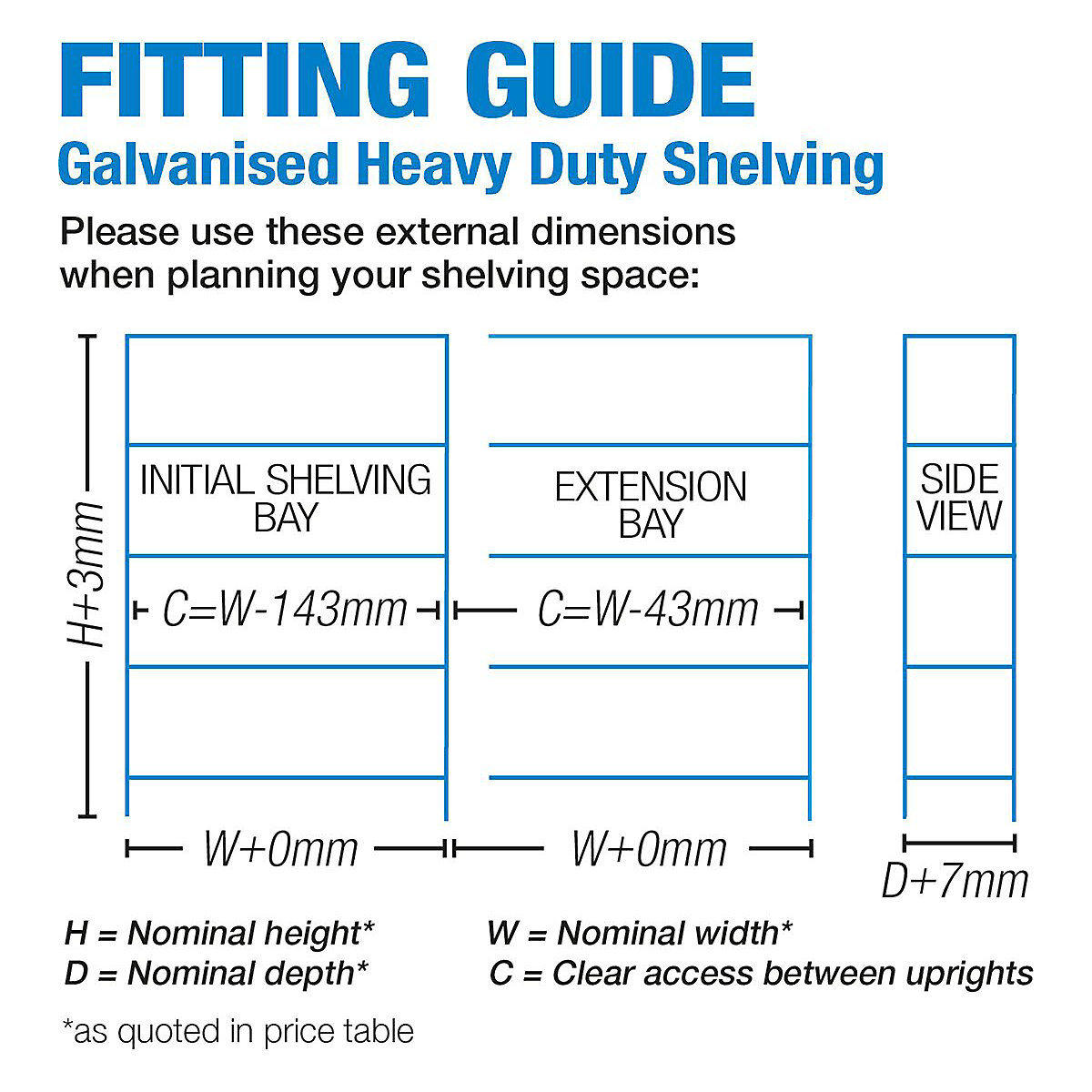

Clear Width 957mm
Width Between Uprights 1000mm
Total Bay Width Including Feet 1100mm
Extra Levels Available Y
Extension Bays Available Y

*Based on a max distance between shelves of 500mm

‌
‌
‌
‌
‌
‌
