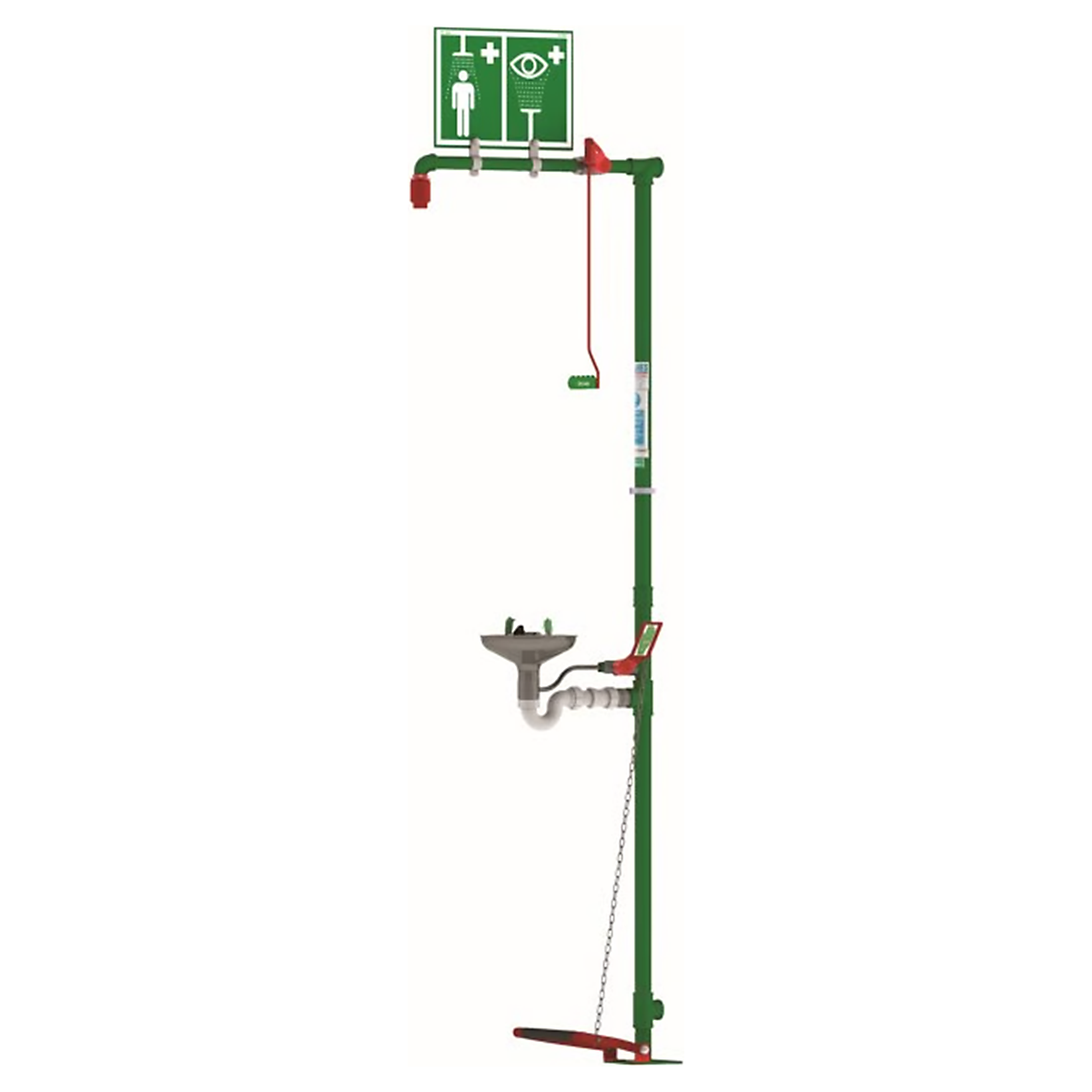

Indoor Unheated Emergency Safety Shower | A | 2320h x 150w mm | Galvanised Mild Steel | Floor-Mounted
Type
Material
Code: JRISSGSF
Indoor Unheated Emergency Safety Shower | A | 2320h x 150w mm | Galvanised Mild Steel | Floor-Mounted
Type
Material
NEW PRODUCT
£688.82
Price / pack (Excl. VAT)
Delivery time: 26-30 Working Days
Good reasons to purchase products from us
- Next day delivery available, in stock products only
- Find a lower price & we'll match it
- Large Project? Call for site visit & quote
We will be happy to help you
0333 200 5299
Mon to Thurs 8am - 5:30pm
Friday 8am - 4:30pm
Excluding Bank Holidays
Friday 8am - 4:30pm
Excluding Bank Holidays
£688.82
Price / pack (Excl. VAT)
Product description
Unheated emergency saftey showers suited for indoor use, ideal for keeping employees protected and for meeting health & saftey regulations.
- Available in a range of mounting options to best suit your space and needs
- Choice between galvanised mild steel or more rust-resistant and hygienic stainless steel
- Perfect for business involved with handling harmful substances such as acids, oils and chemicals
- Fast, easy grip pull handle activation for ease of use
- Suitable for use in all applications that don’t require an eyewash and are not subject to the possibility of freezing or overheating
Specifications
| Model | A | B | C |
|---|---|---|---|
| Net Weight, kg | 16 | 16 | 16 |
| Dimensions, Exterior | 103" H x 12.4" W x 29.5" D | 103" H x 12.4" W x 29.5" D | 103" H x 12.4" W x 29.5" D |
| Height Without Sign, mm | 2344 | 2344 | 2350 |
| UL Classified to ANSI Z358.1-2014 | Yes | Yes | Yes |
| Water Inlet Size NPT | 1-1/4 in (F) | 1-1/4 in (F) | 1-1/4 in (F) |
| Minimum Operating Pressure | 2 bar g, 29 PSI | 2 bar g, 29 PSI | 2 bar g, 29 PSI |
| Maximum Operating Pressure | 6 bar g, 87 PSI | 6 bar g, 87 PSI | 6 bar g, 87 PSI |
| Water Flow Shower/Body Liters/min | 76 | 76 | 76 |
| Water Flow Eye/Face Liters/min | 11.4 | 11.4 | 11.4 |
| Material Specifications | Nozzle: Nylon 6, Eye/facewash diffusers: Chrome plated brass with stainless steel mesh | Nozzle: Nylon 6, Eye/facewash diffusers: Chrome plated brass with stainless steel mesh | 316L Stainless |
| Operating Valve Material | 316L Stainless | 316L Stainless | Yellow ABS Plastic |
| Eye/Face Wash Bowl Material | Stainless Steel | Stainless Steel | Floor |
| Mounting Type | Floor | Floor | |
| Pipework Material | Stainless Steel | Galvanized Steel | Galvanized Steel |
| Activation Method | Shower: Pull Handle, Eye/Face wash: Push Plate | Shower: Pull Handle, Eye/Face wash: Push Plate | Shower: Pull Handle, Eye/Face wash: Push Plate |
| Eye/Face Wash Bowl Interior Dimensions | 260mm W x 260mm D | 260mm W x 260mm D | 248mm W x 248mm D |
| Minimum Ambient Temperature, °F | 41 | 41 | 41 |
| Minimum Ambient Temperature, °C | 5 | 5 | 5 |
| Maximum Ambient Temperature, °F | 95 | 95 | 95 |
| Maximum Ambient Temperature, °C | 35 | 35 | 35 |
Please Note: This product is made to order and therefore cannot be cancelled once ordered. As these items are made specifically to your request, they are also excluded from our returns policy unless damaged or faulty. Please contact our friendly sales team should you need further help or advice before ordering: 0333 200 5299.
