Code: INHDB612

Heavy Duty Bolt on Fork Extensions | 152mm Width | 1200mm Length

Heavy Duty Bolt-On Fork Extensions | for 152mm Wide Forks
Heavy Duty Bolt-On Fork Extensions | for 152mm Wide Forks, Heavy Duty Bolt-On Fork Extensions | for 152mm Wide Forks, Heavy Duty Bolt on Fork Extensions | 152mm Width | 1200mm Length-0
Heavy Duty Bolt-On Fork Extensions | for 152mm Wide Forks (Product illustration 2)-1
Heavy Duty Bolt-On Fork Extensions | for 152mm Wide Forks (Product illustration 3)-2
Length [mm]
Delivery time: 2-3 Working Days
Product description

These fork extensions provide a simple and effective solution for handling and moving more awkward loads extending past the parent forks.

  • Fork extensions for forks 152mm (6 inches) wide
  • All 4 sides with fully enclosed finish

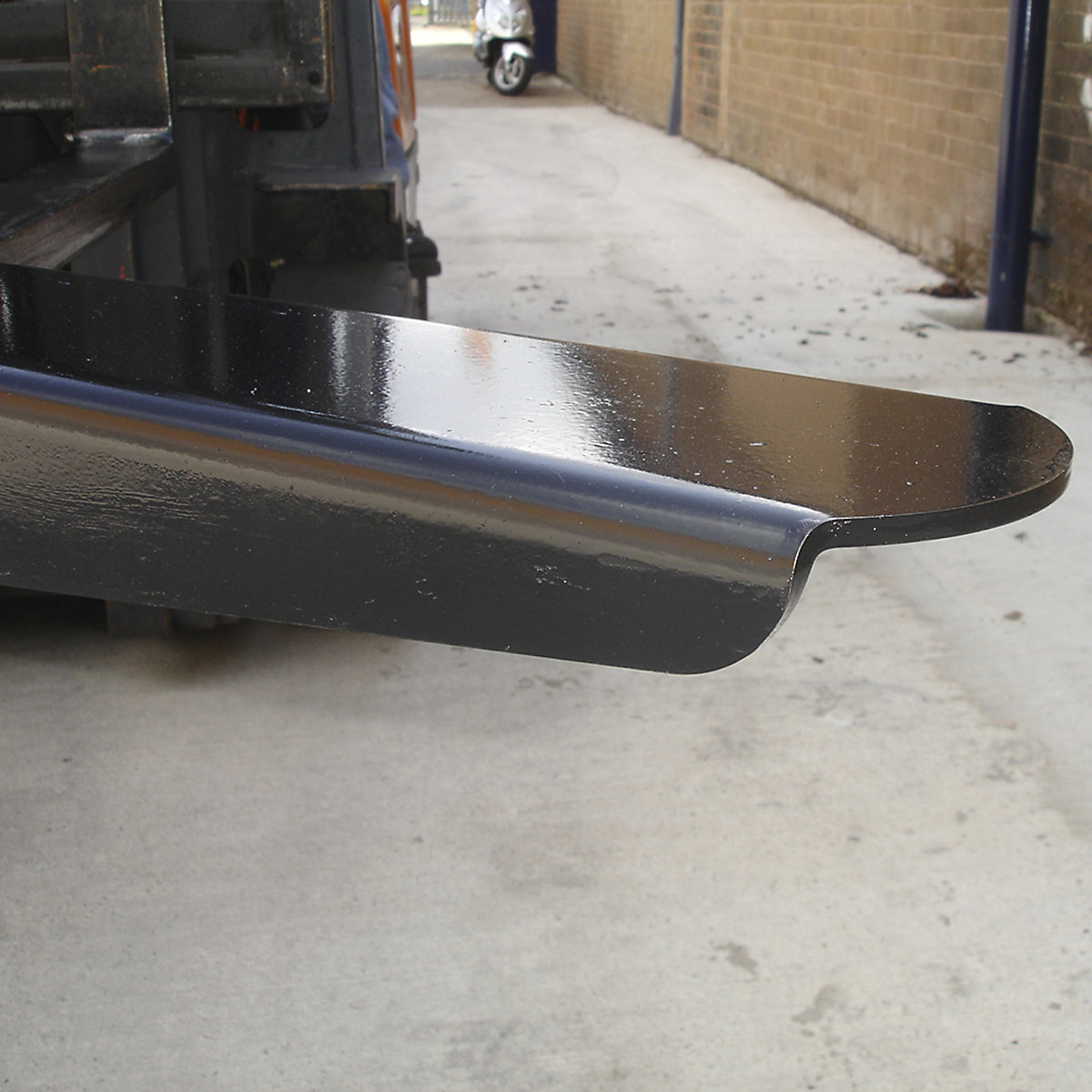

  • Tip thickness of 6mm to split packs
  • Fully pressed profile and rounded corners
  • Single channel fabrication with fully plated underside

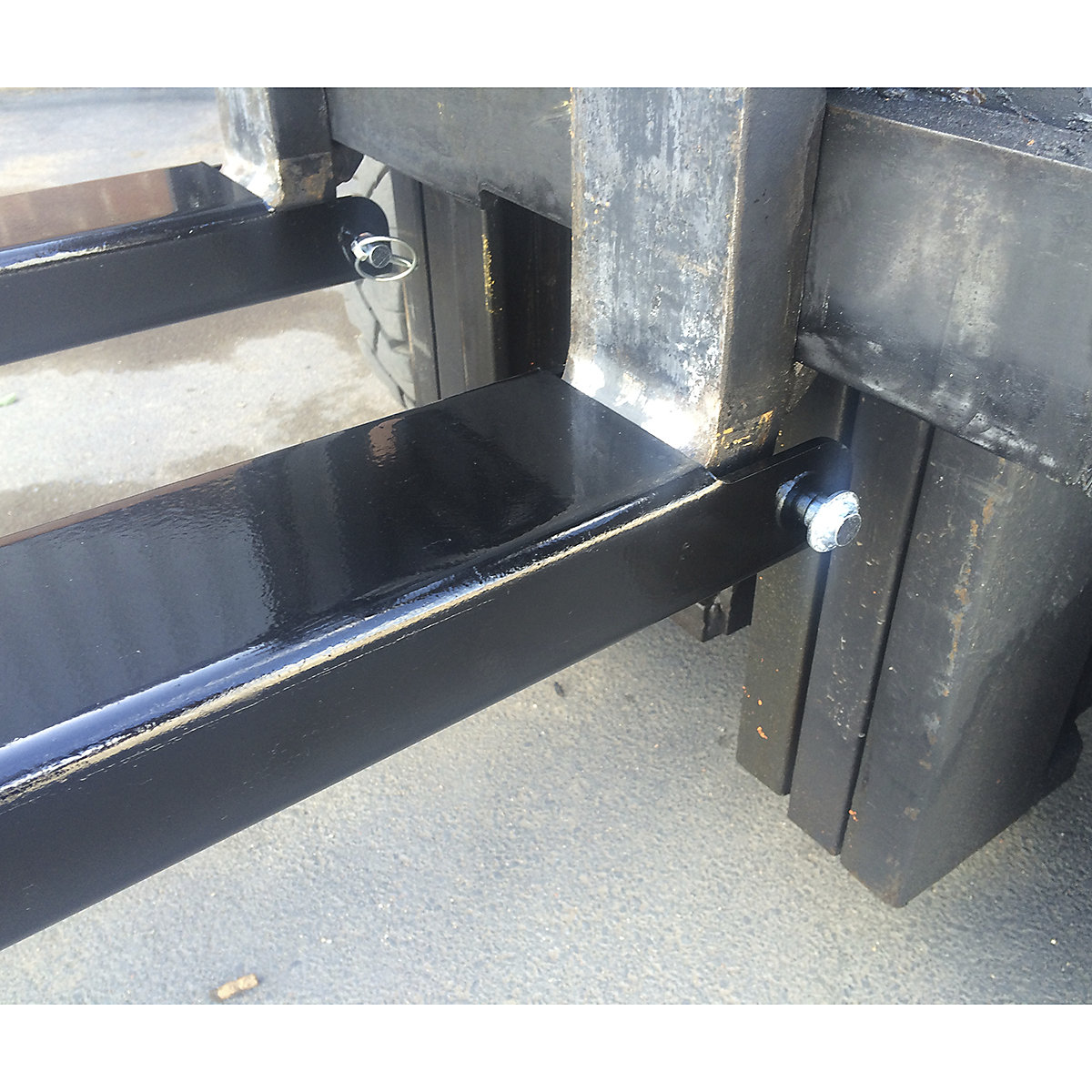

  • Zinc plated heel pins ensure safety
  • Supplied as a pair

Please note: this product is made to order and therefore cannot be cancelled once ordered. As these items are made specifically to your request, they are also excluded from our returns policy unless damaged or faulty. Please contact our friendly sales team should you need further help or advice before ordering: 0333 200 5299.

Specifications

Code Length Weight C of G Min Fork Length Max Fork External Size Max Overhang
INHDB612 1220 mm 21kg 610 mm 750 mm 150 x 60 177 x 79 66%
INHDB613 1372 mm 23kg 686 mm 823 mm 150 x 60 177 x 79 66%
INHDB615 1525 mm 26kg 762 mm 915 mm 150 x 60 177 x 79 66%
INHDB616 1600 mm 28kg 800 mm 960 mm 150 x 60 177 x 79 66%
INHDB618 1829 mm 31kg 914 mm 1100 mm 150 x 60 177 x 79 66%
INHDB619 1981 mm 33kg 990 mm 1200 mm 150 x 60 177 x 79 66%
INHDB624 2134 mm 35kg 1067 mm 1300 mm 150 x 60 177 x 79 66%
INHDB621 2438 mm 40kg 1219 mm 1500 mm 150 x 60 177 x 79 66%
INHDB626 2600 mm 47kg 1300 mm 1570 mm 150 x 60 177 x 79 66%
INHDB627 2750 mm 49kg 1375 mm 1660 mm 150 x 60 177 x 79 66%
INHDB630 3000 mm 52kg 1500 mm 1810 mm 150 x 60 177 x 79 66%
‌
‌
‌
‌
‌
