Code: LINKSO4

Euro Shelving Open Extension Bay | 2100h x 1000w x 300d mm | Light Grey | 6 Shelves | 160kg UDL*

Euro Open Shelving

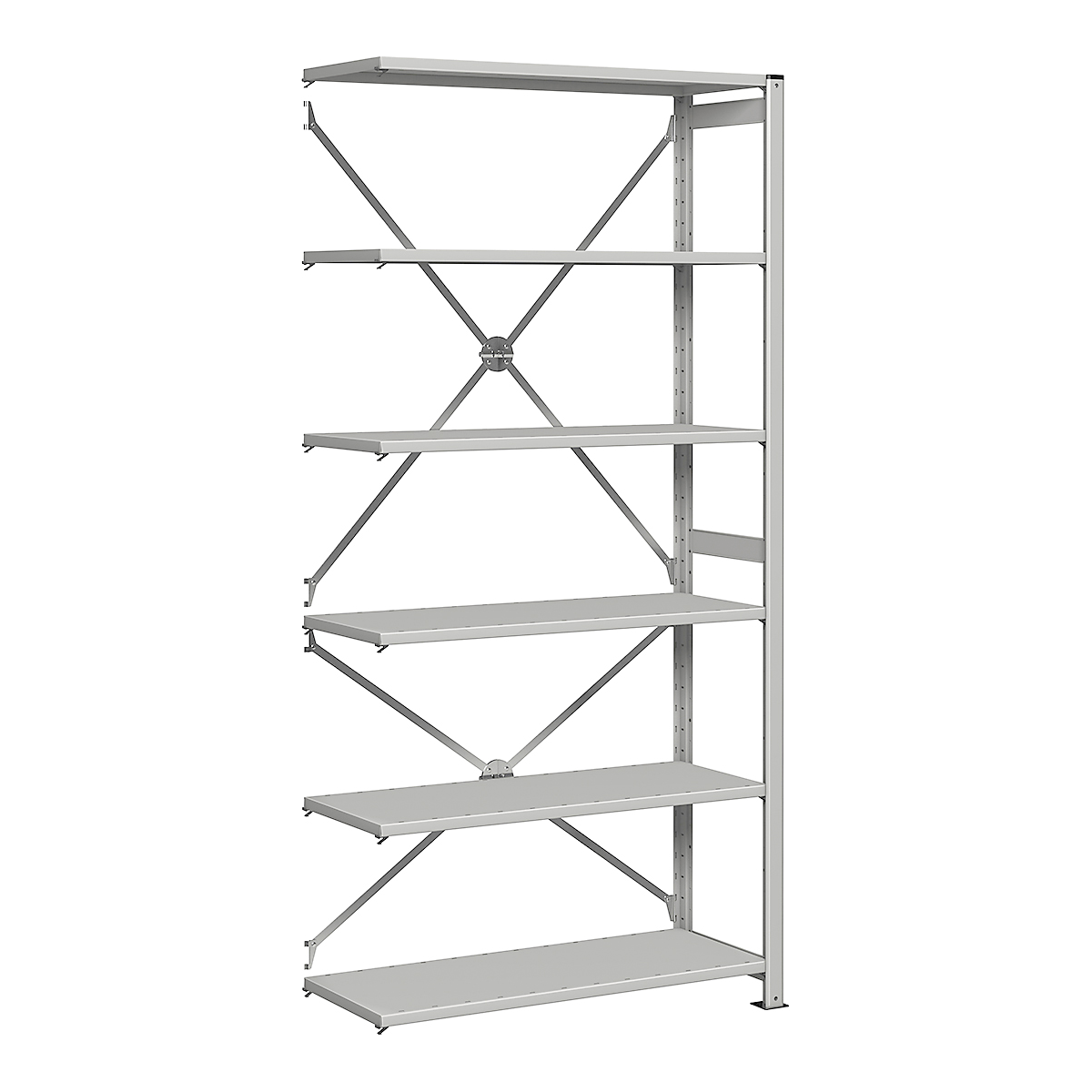

Euro Open Shelving, Euro Open Shelving, Euro Shelving  Open Extension Bay  | 2100h x 1000w x 300d mm | Light Grey  | 6 Shelves | 160kg UDL*-0
Euro Open Shelving (Product illustration 2)-1

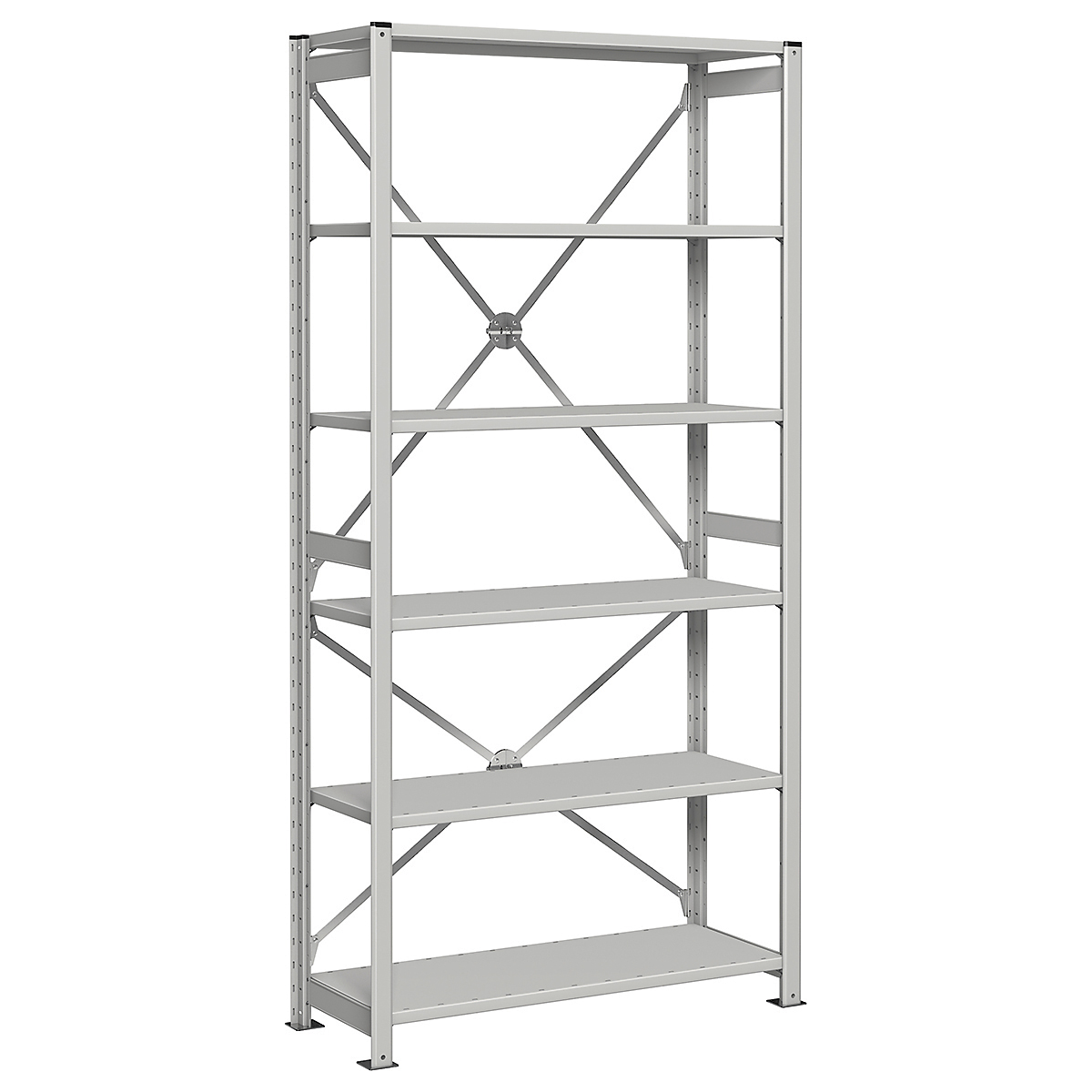

Euro Open Shelving, Euro Open Shelving, Euro Shelving  Open Starter Bay  | 2100h x 1000w x 300d mm | Light Grey  | 6 Shelves  | 160kg UDL*-2
Depth [mm]
Type

Delivery time: 26-30 Working Days
Product description

Designed for medium to heavy-duty storage applications, Euro Shelving is made from powder coated steel and offers 6 adjustable, clip in shelves.

  • Store up to 160kg per shelf UDL*
  • 6x Clip-in Shelves, adjustable on a 50mm pitch
  • ActiveCoat anti-bacterial protection
  • Supplied with fully assembled steel frames
  • Shelf clips create reliable support to prevent accidental shelf dislodgement

Solve your storage needs with our Euro Shelving range, available here at BiGDUG. With a choice of either open or closed frames and backs, Link 51 Euro Open Shelving offers a load capacity of up to 160kg per shelf UDL*. This shelving is suitable for use in warehouses, stockrooms, factories, workshops, and any other industrial application. Euro shelving is a truly versatile and interchangeable system ideal for office or departmental storage, storerooms, stockrooms, maintenance stores and industry in general. The light grey powder coated finish contains ActiveCoat antimicrobial technology which minimises the risk of bacterial cross-contamination.

  • Feet included
  • Starter and Extension bay format allows for ease of extending original scheme
  • Ideal for industrial environments
  • Specially designed "T" profile uprights and welded box section beams maximise the strength of the system
  • UK manufactured to ISO certified quality and environmental standards
  • Cross brace provides rear bracing & stability for open back shelving bays
  • Upright caps locate in top of uprights to provide capping for safety and improved appearance
  • Foot plates spread loads of the upright, protecting the floor surface and allowing shelving to be fixed to the floor for stability, when required

*UDL = Uniformly Distributed Load

Shelving Specifications

Data Field     1000 mm Width
Upright Type Braced Frame
Upright Steel Thickness 0.75 mm
Shelf Steel Thickness 0.7mm
Shelf adjustment Increments 50 mm
Shelf Depth 40 mm
Chipboard Thickness N/A
Total Bay Capacity 1,285 Kilos
Clear Width 968 mm
Extra Levels Available Yes

Please note: this product is made to order and therefore cannot be cancelled once ordered. As these items are made specifically to your request, they are also excluded from our returns policy unless damaged or faulty. Please contact our friendly sales team should you need further help or advice before ordering: 0333 200 5299.
