Code: ECOTR40TC

EcoGrid TR40 Equestrian Ground Reinforcement Tiles | Pack of 9 Tiles | 1 Metre Square | 40h x 330w x 330d mm | Terracotta

EcoGrid TR40 Equestrian Ground Reinforcement Tiles

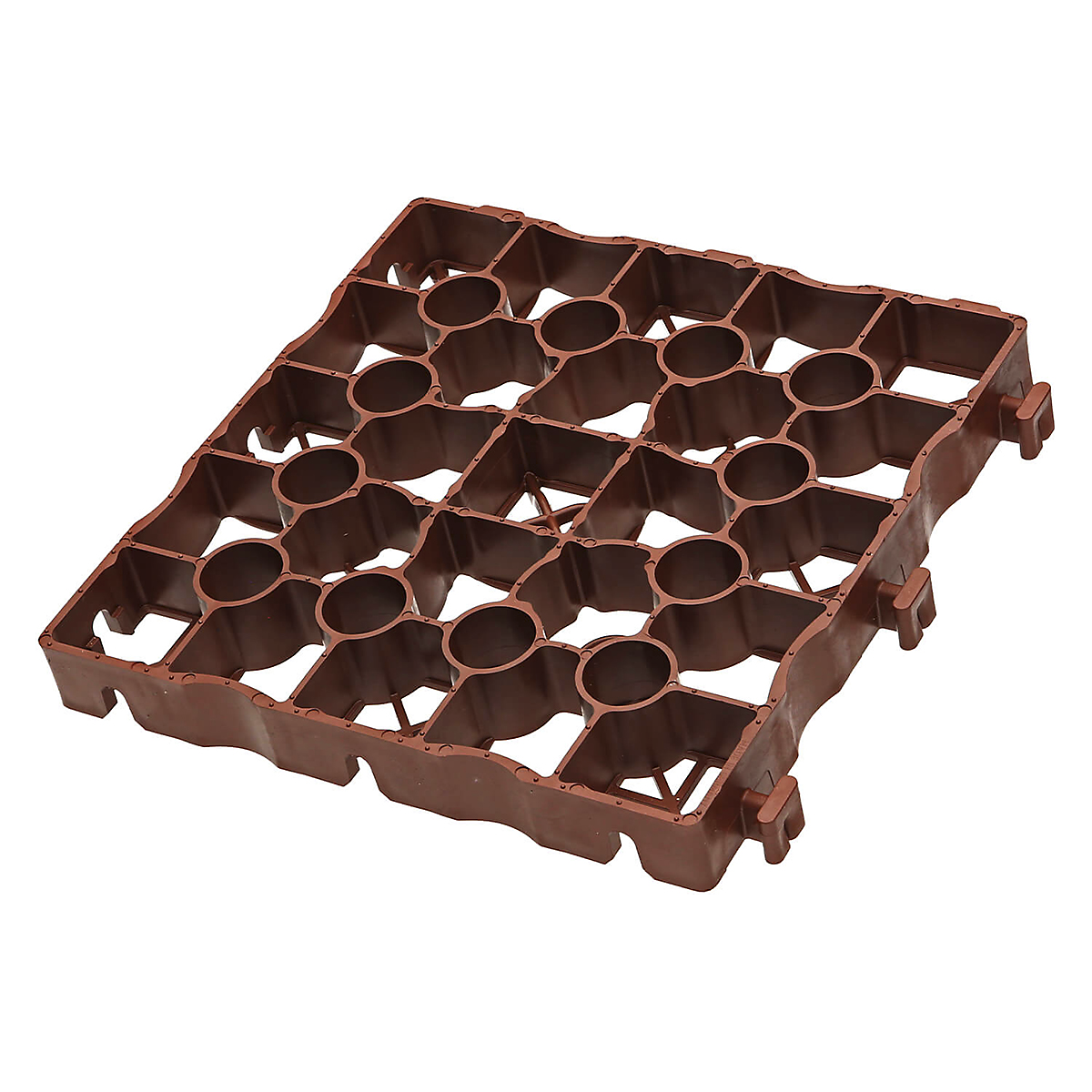

EcoGrid TR40 Equestrian Ground Reinforcement Tiles, EcoGrid TR40 Equestrian Ground Reinforcement Tiles, EcoGrid TR40 Equestrian Ground Reinforcement Tiles | Pack of 9 Tiles | 1 Metre Square | 40h x 330w x 330d mm | Terracotta-0

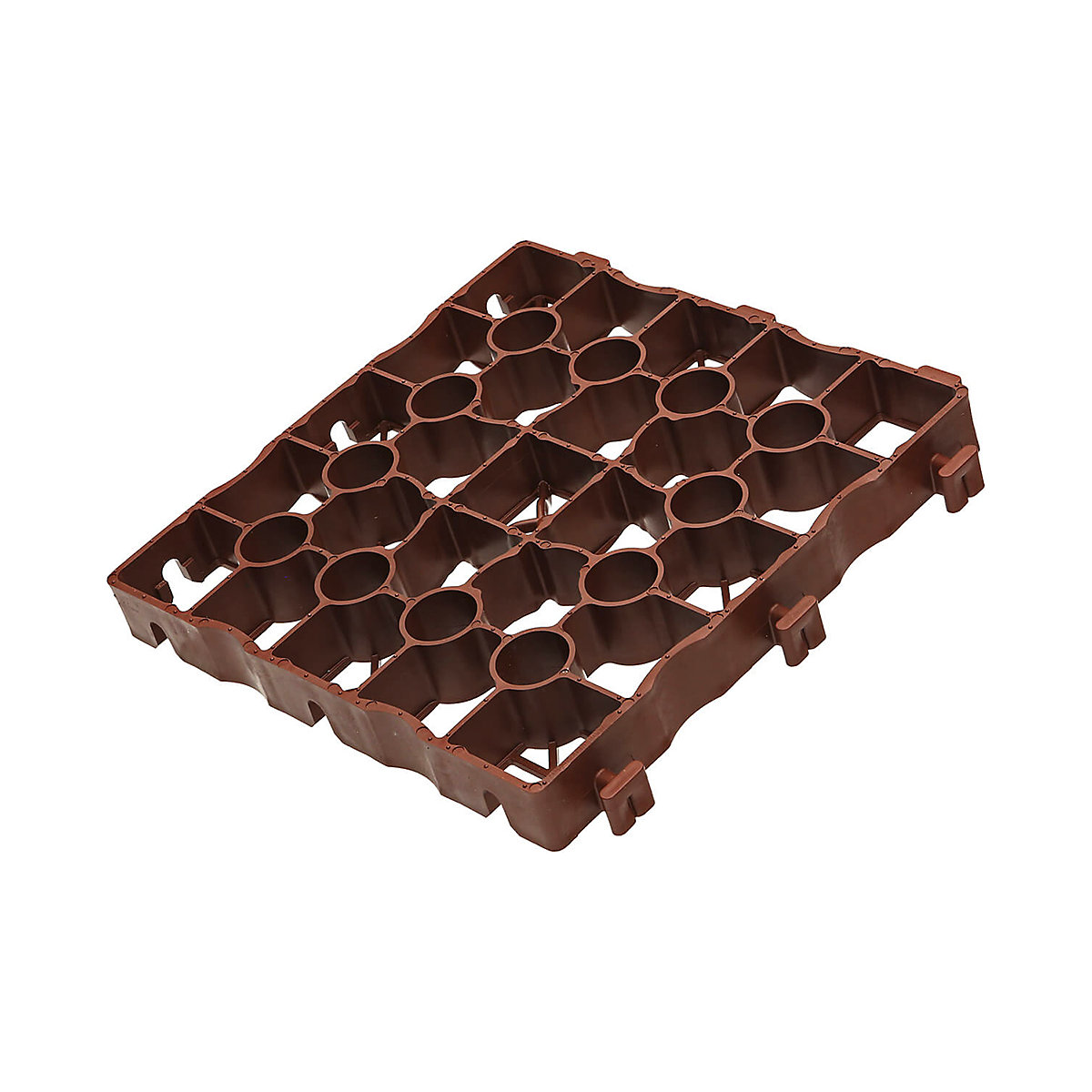

EcoGrid TR40 Equestrian Ground Reinforcement Tiles (Product illustration 2)-1
EcoGrid TR40 Equestrian Ground Reinforcement Tiles (Product illustration 3)-2
EcoGrid TR40 Equestrian Ground Reinforcement Tiles (Product illustration 4)-3
EcoGrid TR40 Equestrian Ground Reinforcement Tiles (Product illustration 5)-4
NEW PRODUCT

Product description

The EcoGrid TR40 is a sturdy reservoir grid for equestrian applications and when there is a need for added rigidity. Grids feature a unique patented locking system to ensure that they remain locked together even under the most demanding conditions.

  • Tile dimensions: 330 x 330 x 40mm
  • Supplied in packs of 9 tiles
  • Carrying Load: Up to 600 t/sqm filled
  • Manufactured from 100% recycled polyethylene
  • Resistant to acids, alkalis, alcohols and petrol (de-icing salt etc)
  • 20-year guarantee for long-term assurance and peace of mind

    • Ideal to reinforce the likes of the following:

    • Animal Compounds
    • Commercial Sites
    • Equestrian Arenas
    • Resin Stone Bases
    • Shed Bases

    Specifications

    Technical Specifications
    Dimensions 330 x 330 x 40mm
    Wall Thickness 5mm
    Carrying Load Up to 600 t/sqm filled
    Weight (sqm) 7.5kg
    Weight (pce) 0.83kg
    Wall Height 40mm
    Material 100% Recycled Polyethylene
    Pressure Resistance Up to 10t Axle Load (DIN 1072)
    Dimensional Stability Temp Range -50° to +80°
    Deformation 0.5% (at normal temp as above)
    Moisture Absorption 0.01%
    Solubility Resistant to Acids, Alkalis, Alcohols and Petrol (De-Icing Salt etc)

    Please note: this product is made to order and therefore cannot be cancelled once ordered. As these items are made specifically to your request, they are also excluded from our returns policy unless damaged or faulty. Please contact our friendly sales team should you need further help or advice before ordering: 0333 200 5299.

    ‌
    ‌
    ‌
    ‌
    ‌
