Code: ECOE30BK

EcoGrid E30 Pedestrian Ground Reinforcement Tiles | Pack of 9 Tiles | 1 Metre Square | 30h x 330w x 330d mm | Black

EcoGrid E30 Pedestrian Ground Reinforcement Tiles
Code: ECOE30BK
Product description

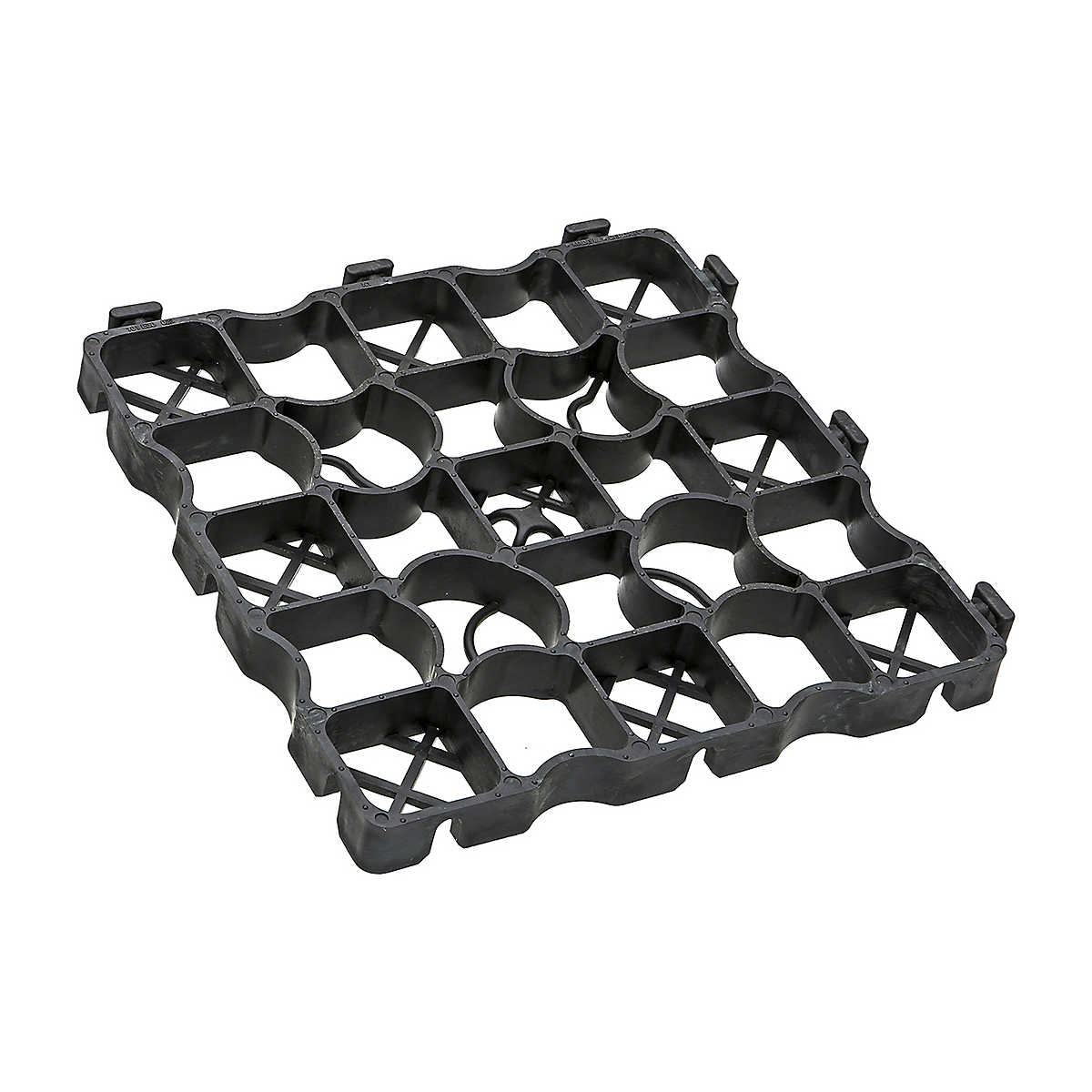

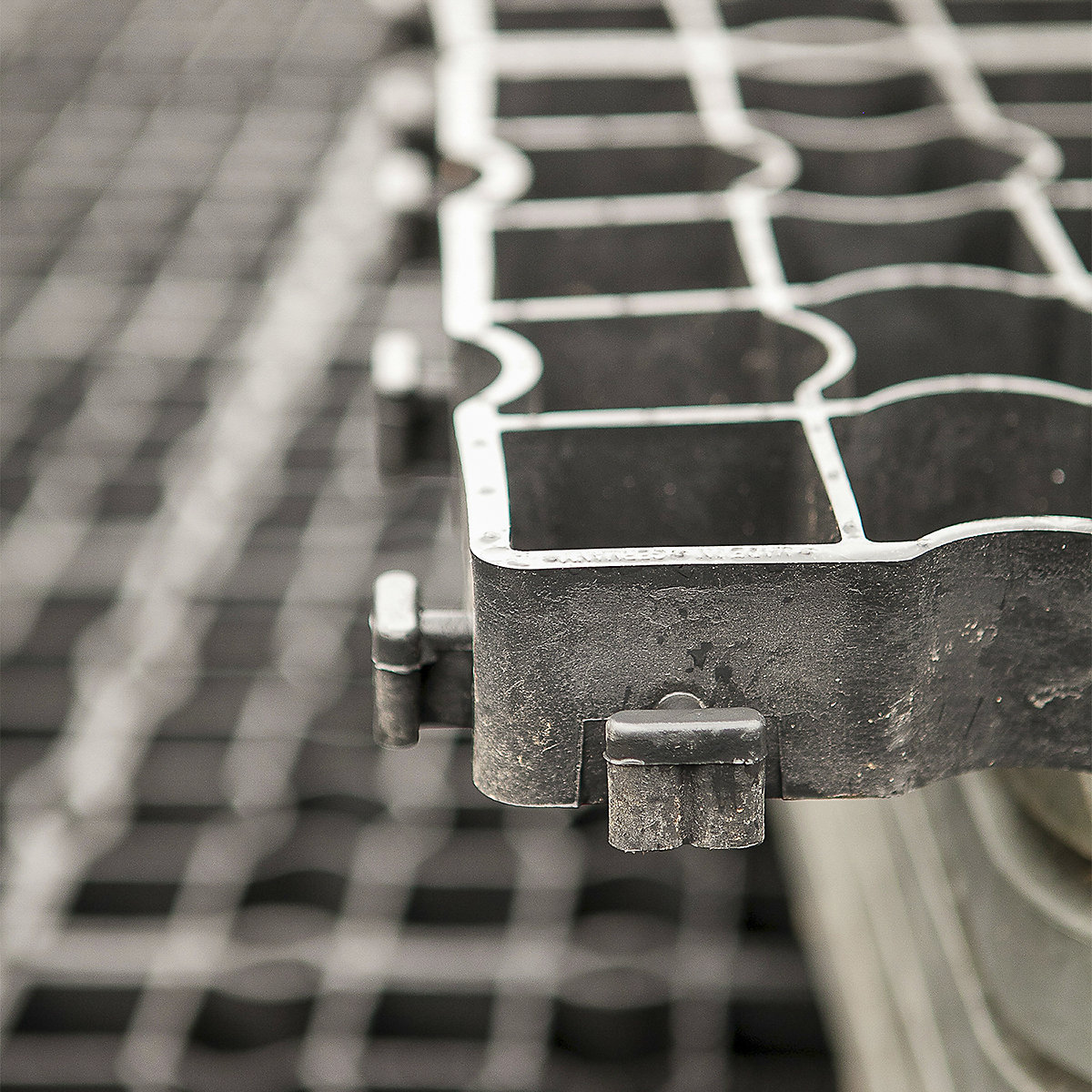

The EcoGrid E30 is an ideal light loading grid for pedestrian usage and a variety of applications including grass protection, gravel paths and shed bases. Grids feature a unique patented locking system to ensure that they remain locked together even under the most demanding conditions.

  • Tile dimensions: 330 x 330 x 30mm
  • Supplied in packs of 9 tiles
  • Carrying Load: Up to 250 t/sqm filled
  • Manufactured from 100% recycled polyethylene
  • Resistant to acids, alkalis, alcohols and petrol (de-icing salt etc)
  • 20-year guarantee for long-term assurance and peace of mind

Ideal to reinforce the likes of the following:

  • Landscape Construction
  • Gravel Parking Systems
  • Grassed Parking Systems
  • Garden Office Bases
  • Pedestrian Walkways
  • Construction Sites
  • Tree Root Protection
  • Animal Compounds

Specifications

Technical Specifications
Dimensions 330 x 330 x 30mm
Wall Thickness 4.4mm
Carrying Load Up to 250 t/sqm filled
Weight (sqm) 5.04kg
Weight (pce) 0.56kg
Wall Height 30mm
Material 100% Recycled Polyethylene
Pressure Resistance Up to 10t Axle Load (DIN 1072)
Dimensional Stability Temp Range -50° to +80°
Deformation 0.5% (at normal temp as above)
Moisture Absorption 0.01%
Solubility Resistant to Acids, Alkalis, Alcohols and Petrol (De-Icing Salt etc)
