Code: DT71095

Draper Gas/Gasless MIG Welder | 160A

Draper Gas/Gasless MIG Welder
Draper Gas/Gasless MIG Welder, Draper Gas/Gasless MIG Welder, Draper Gas/Gasless MIG Welder | 160A-0
Draper Gas/Gasless MIG Welder (Product illustration 2)-1
Draper Gas/Gasless MIG Welder (Product illustration 3)-2
Draper Gas/Gasless MIG Welder (Product illustration 4)-3
Draper Gas/Gasless MIG Welder (Product illustration 5)-4
Type
Delivery time: 4-5 Working Days
Product description

This MIG welder can be used as a gas/gasless welder and includes a Euro torch connector

  • It has a six-stage power setting and variable wire speed control, including a spot welding timer for precise spot welds
  • Includes wheel kit and reinforced full size gas bottle support

Specifications

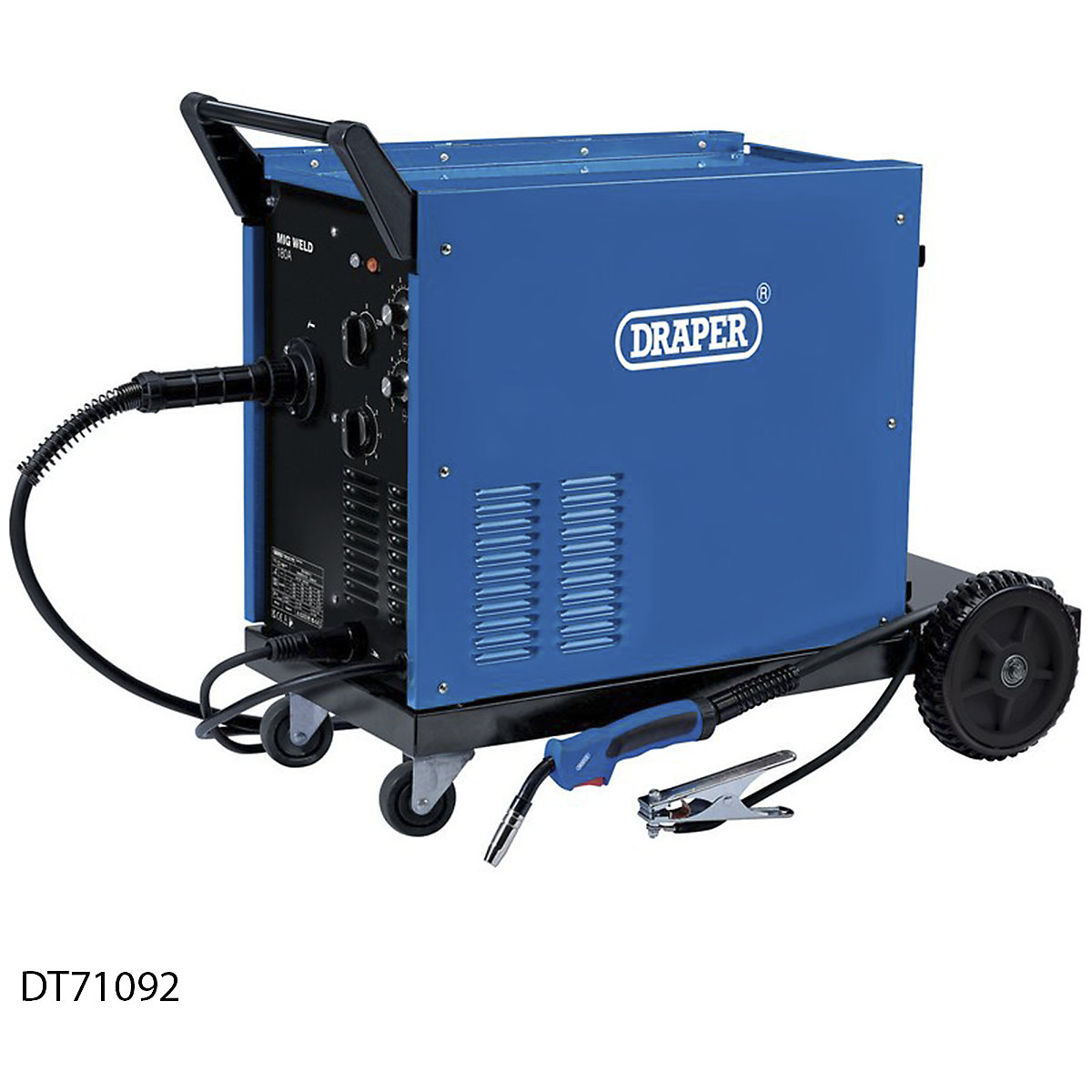

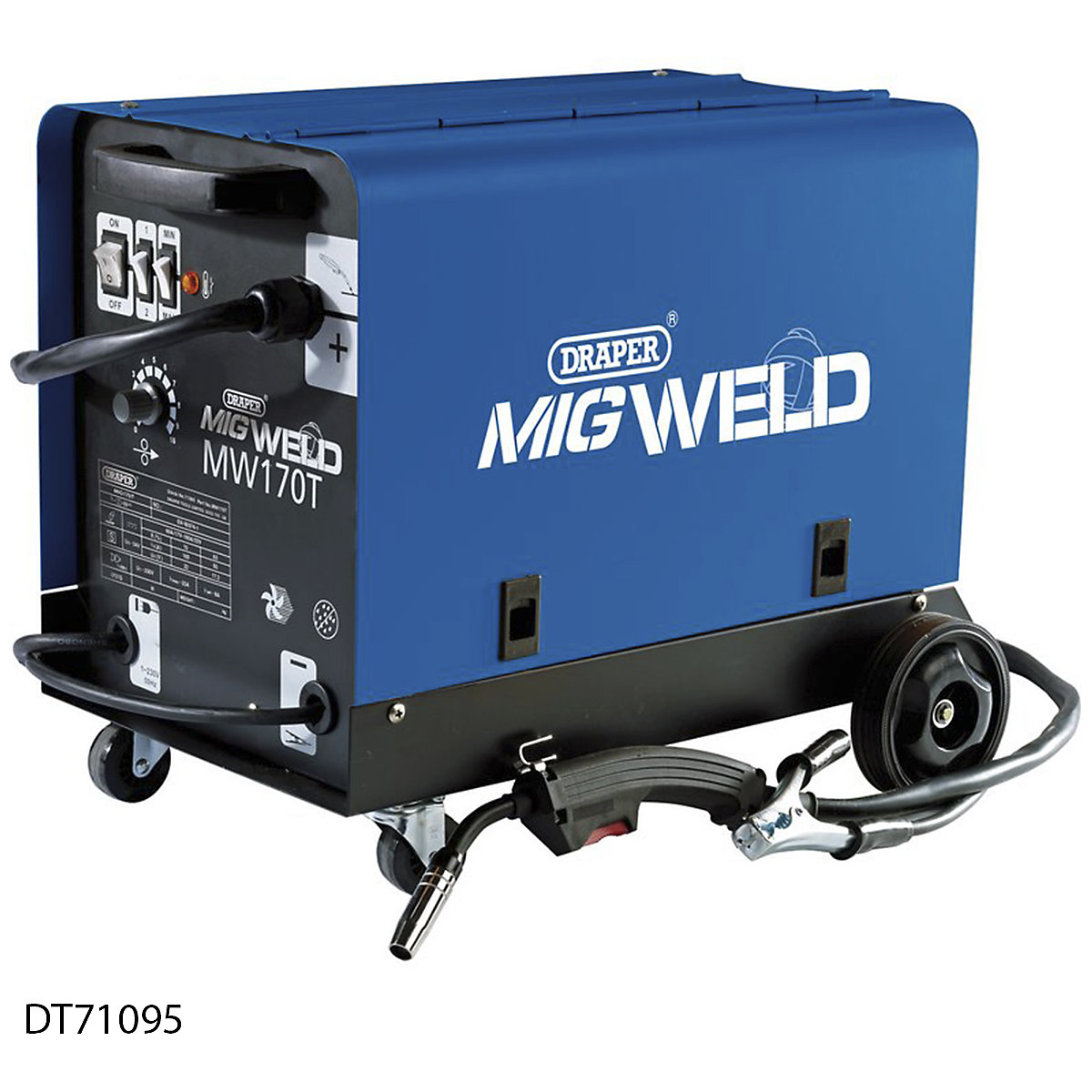

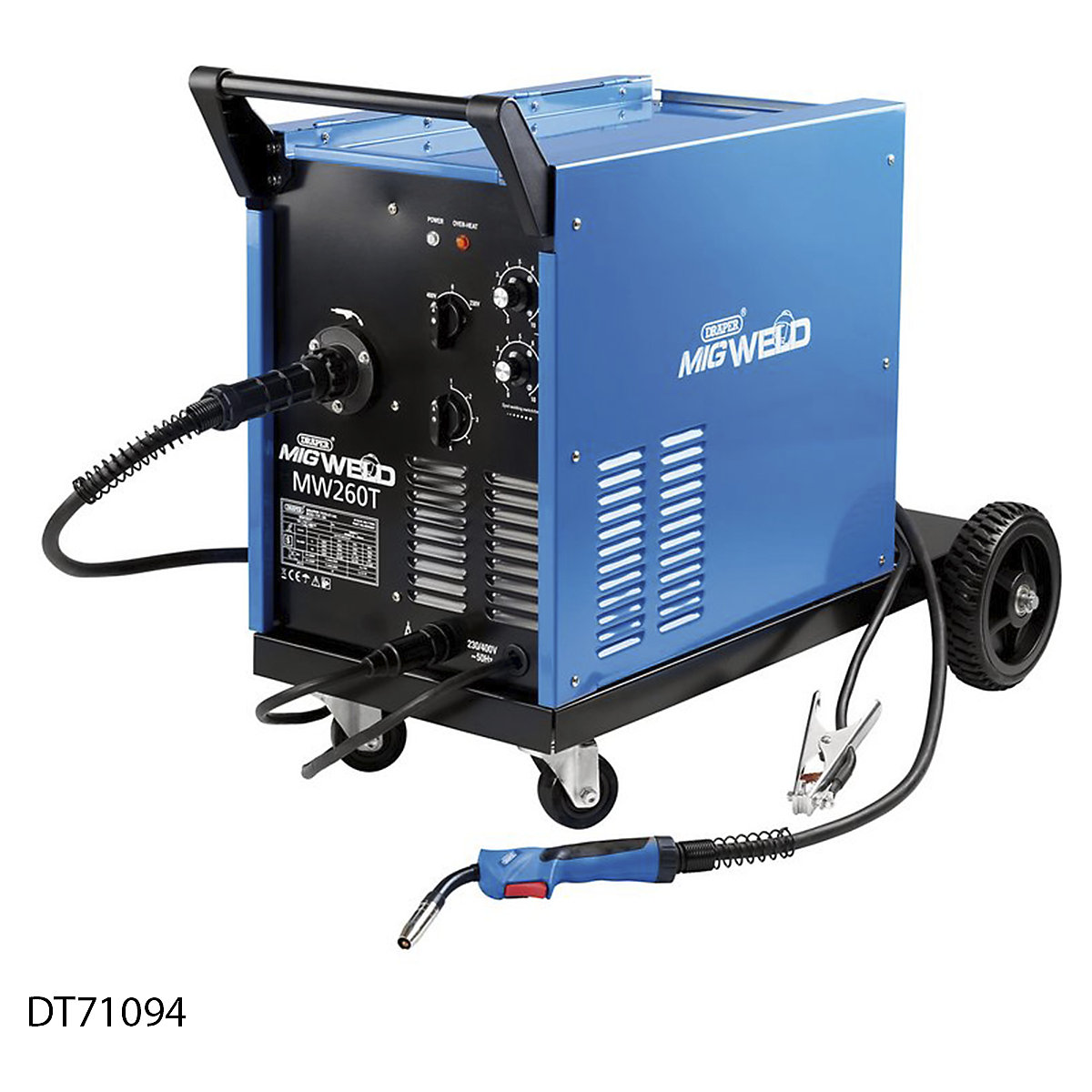

Specs    DT71095       DT71092       DT71093       DT71094
Amperage range 60 - 160A 40-180A 40-220A 40-250A
Power supply 230V~50Hz 230V 230V, 400V 230V - 32A, 400V - 32A
Plug fitted No - 16A plug required No - 16A plug required No - 16A plug required No - 16A plug required
Welding wire spool size 0.6 - 0.9mm - 5kg 5-15kg 5-15kg 5-15kg
Duty cycle 10% @ 160A 60% @ 65A 10% @140A / 30% @80A / 60% @ 55A 230V: 10% 160A, 30% 90A, 60% 65A / 400V: 10% 220A, 30% 130A, 60% 90A 230V: 10% 165A, 30% 95A, 60% 65A / 400V: 10% 250A, 30% 155A, 60% 100A
Dimensions 640 x 385 x 435mm 770 x 375 x 530mm 770 x 375 x 530mm 770 x 375 x 530mm
Weight (net) 32kg 55kg 56kg 58kg
Euro torch connector/dinse type coupling N/A 10.25 35.50 35.50
Compatible with regular gas bottle N/A Yes Yes Yes
‌
‌
‌
‌
‌
