Code: DT53084

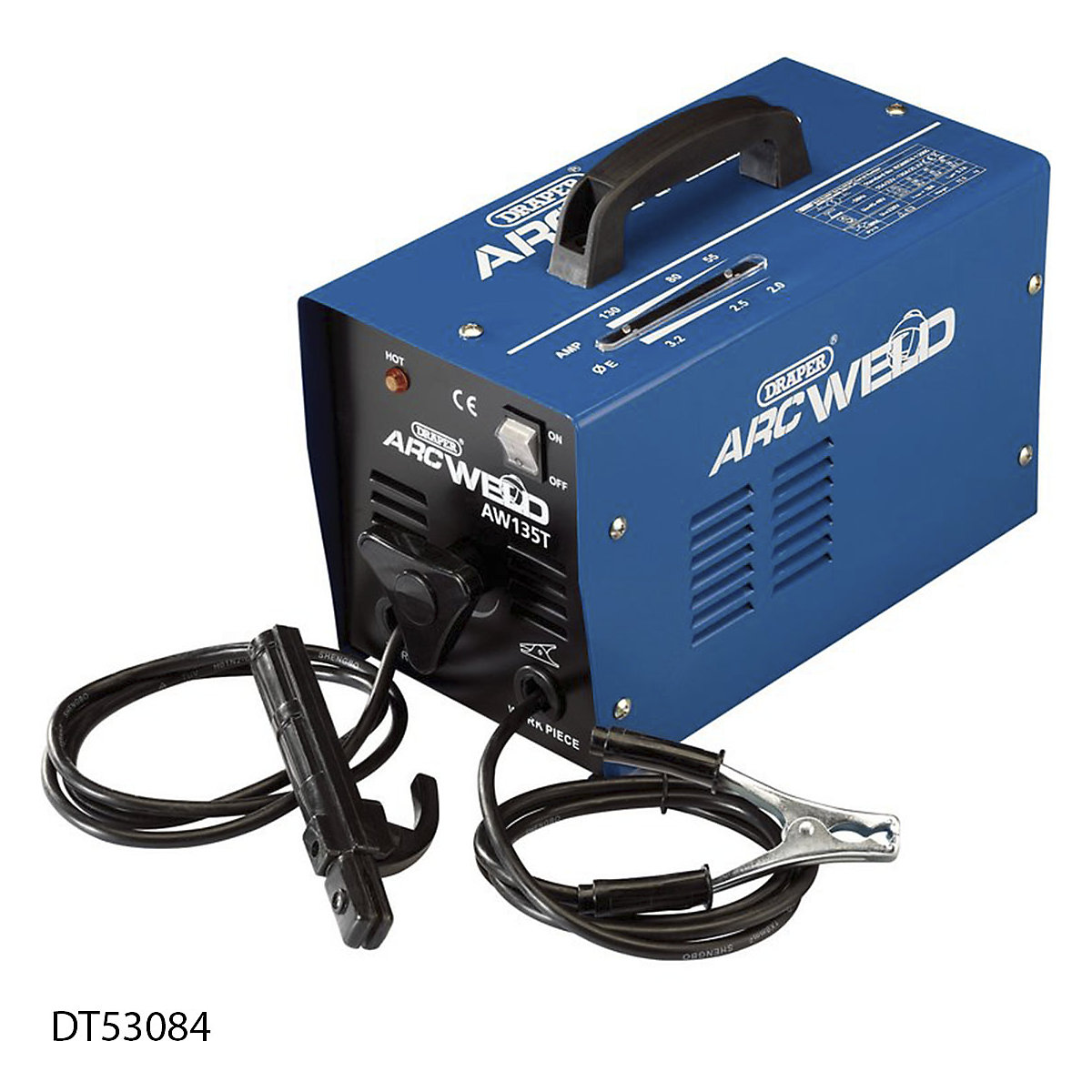

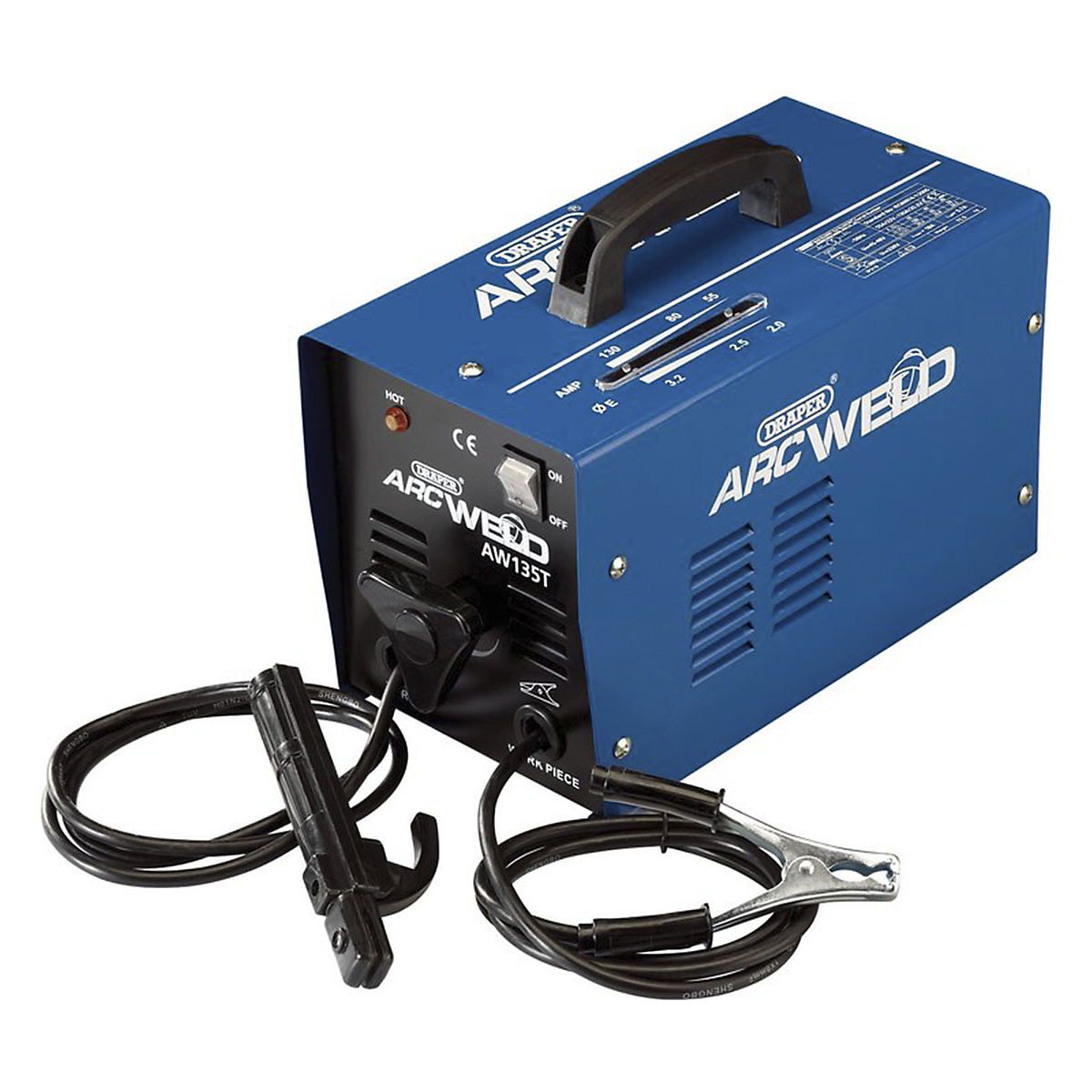

Draper ARC Welder | 130A
Type
Code: DT53084
Draper ARC Welder | 130A
Type
Good reasons to purchase products from us
- Next day delivery available, in stock products only
- Find a lower price & we'll match it
- Large Project? Call for site visit & quote
We will be happy to help you
0333 200 5299
Mon to Thurs 8am - 5:30pm
Friday 8am - 4:30pm
Excluding Bank Holidays
Friday 8am - 4:30pm
Excluding Bank Holidays
£112.72
Price / pack (Excl. VAT)
Product description
This ARC welder offers high performance with thermal overload protection
- It includes stepless welding control to allow fine adjustment of current
- Robust lightweight construction to make it portable, complete with carry handle
- Contents: 1 x 200A Electrode holder, 1 x 300A Earth clamp, 1 x Chipping hammer/wire brush & 1 x Face mask
Specifications

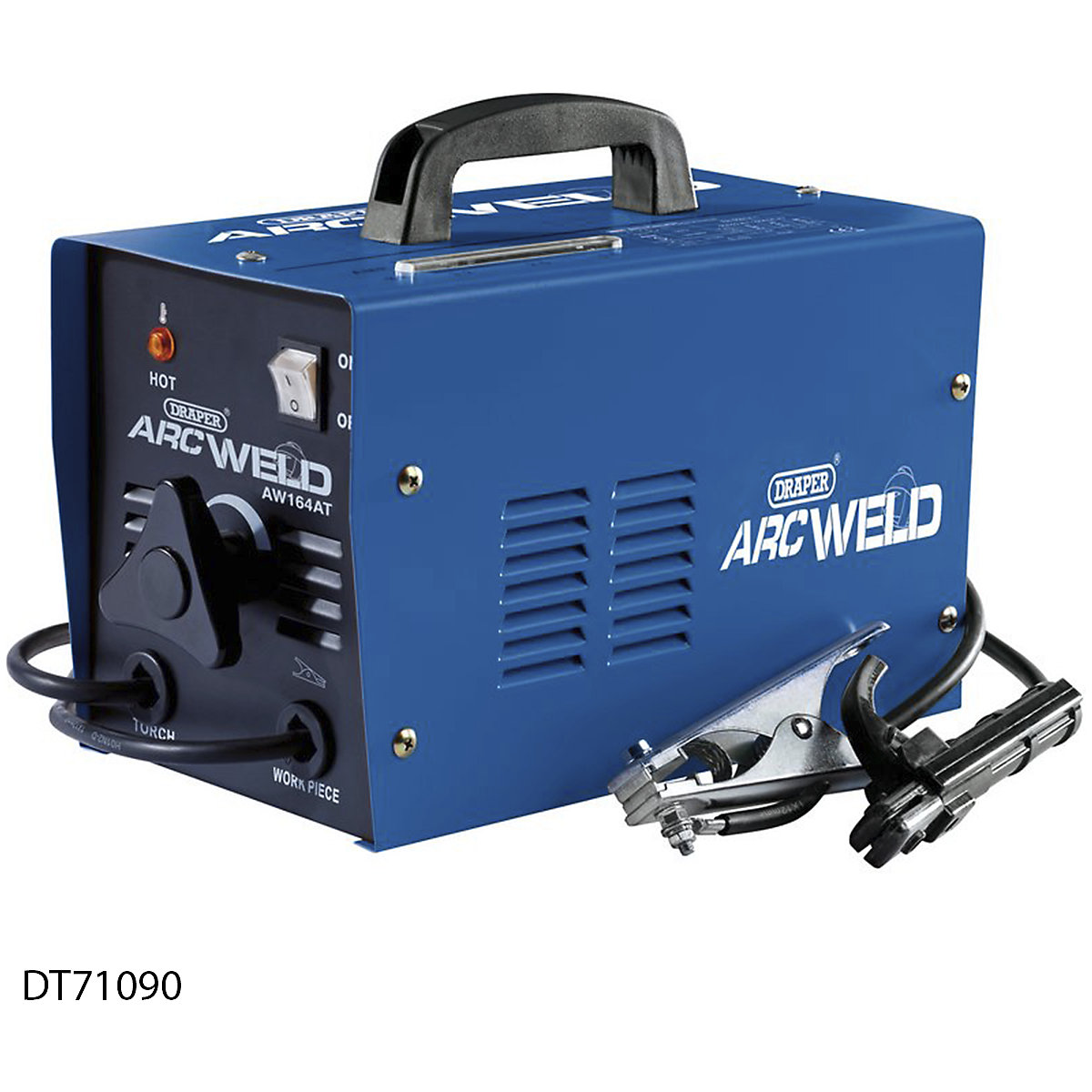

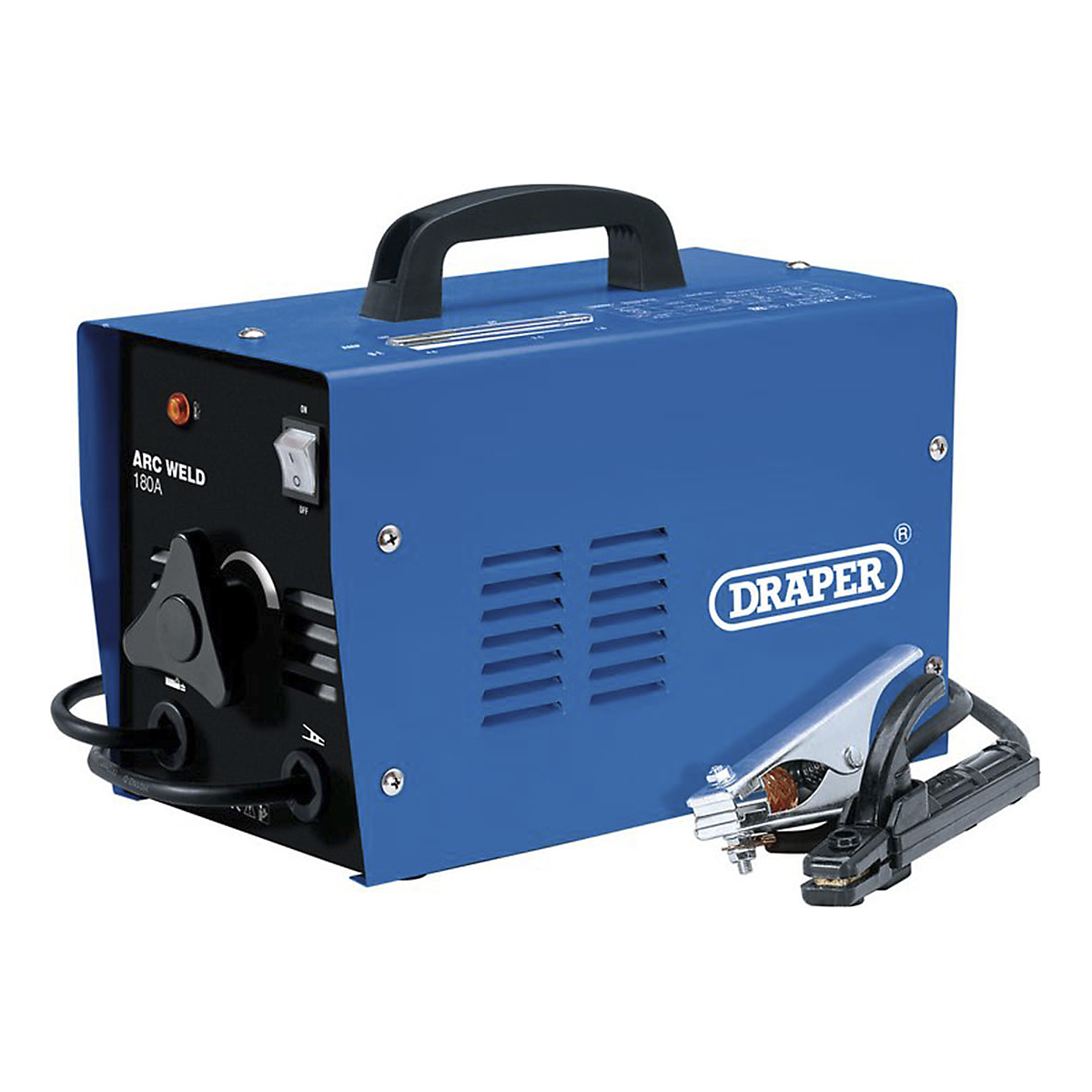

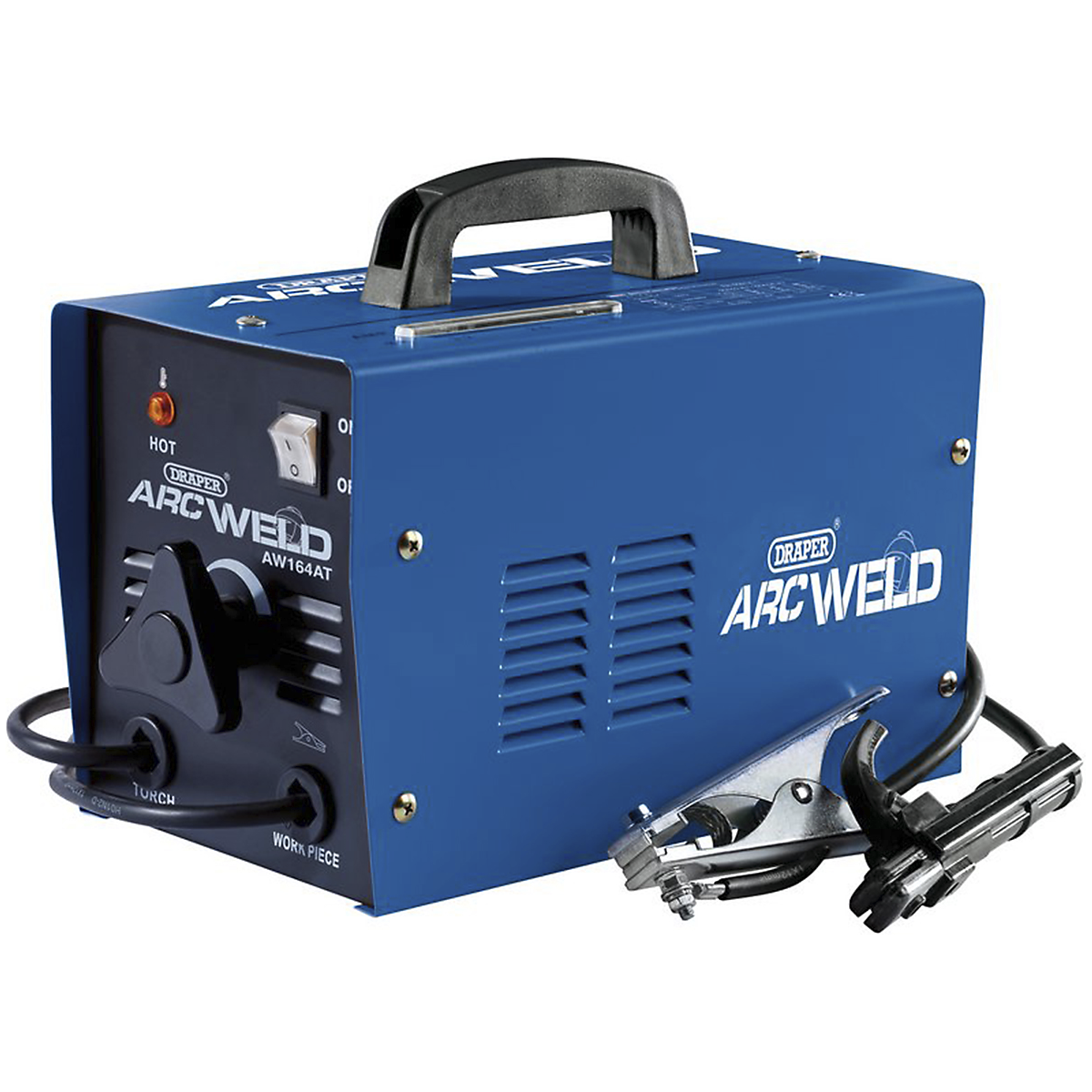

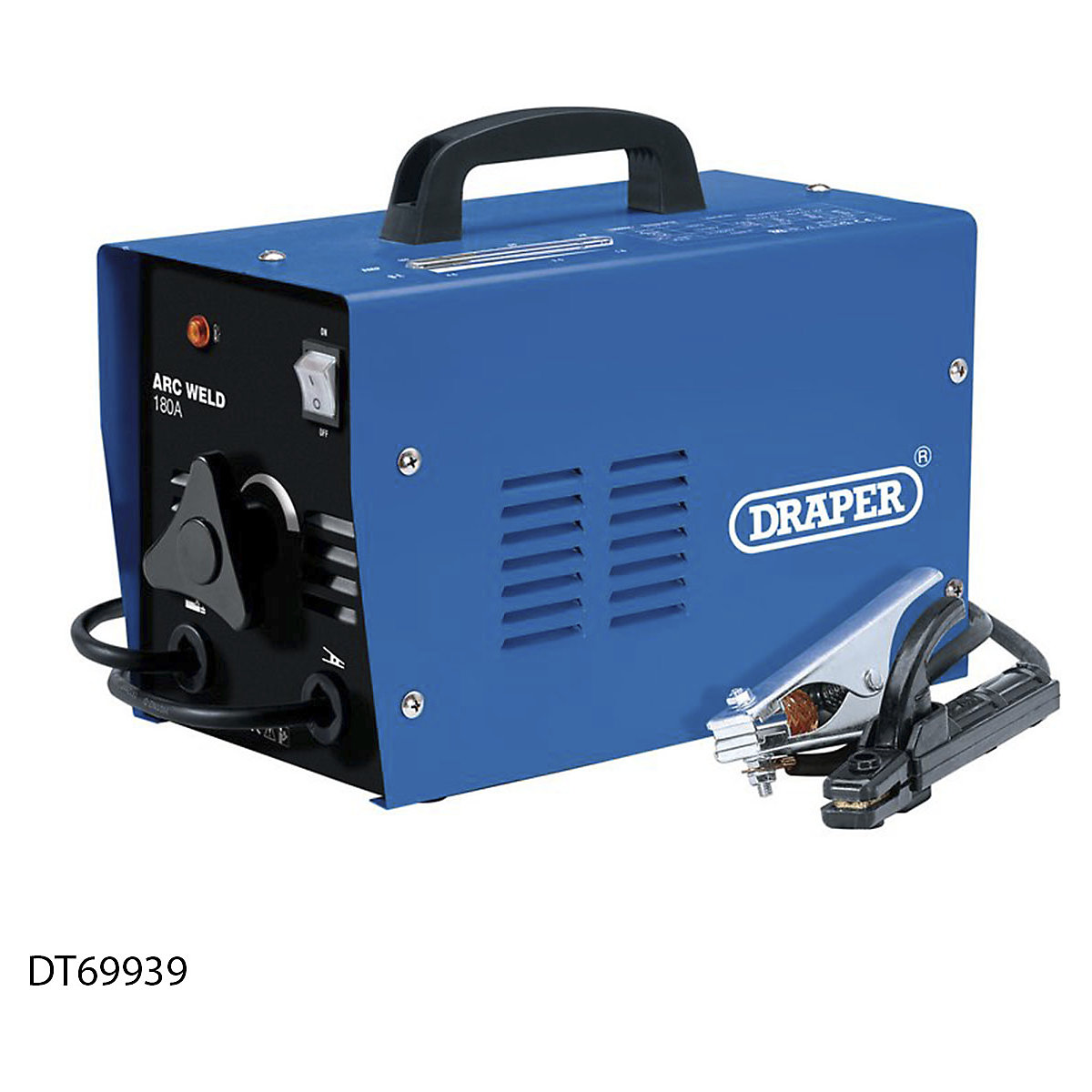

| Specs | DT53084 | DT71090 | DT69939 |
|---|---|---|---|
| Output amperage range | 50 - 130A | 60 - 160A | 70-180A |
| Phase | Single 230V | Single 230V | Single 230V |
| Input current | 16A | 16A | 20% @ 200A |
| Duty cycle | 10% @ 130A | 10% @ 160A | 10% @180A / 60% @73A |
| Electrode size | 2.0 - 3.2mm | 1.6mm - 4.0mm | 1.6mm - 4.0mm |
| Dimensions | 470 x 270 x 320mm | 470 x 240 x 320mm | 345 x 180 x 280mm |
| Weight | 18kg | 14kg | 17.5kg |
| Plug fitted | No - 16A plug required | No - 16A plug required | No - 16A plug required |
| Stepless Current Adjustment | N/A | Yes | Yes |
| Carry Handle for Portability | Yes | Yes | Yes |
| Fan Cooled | N/A | Yes | Yes |
| Thermal overload protection | N/A | Yes | Yes |
