Code: STM1270FGBL

BiGDUG Mesh Three Sided Heavy Duty Stock Trolley | 1200w x 700d mm | 2 Fixed & 2 Swivel/Braked Castors| Blue | 300kg UDL

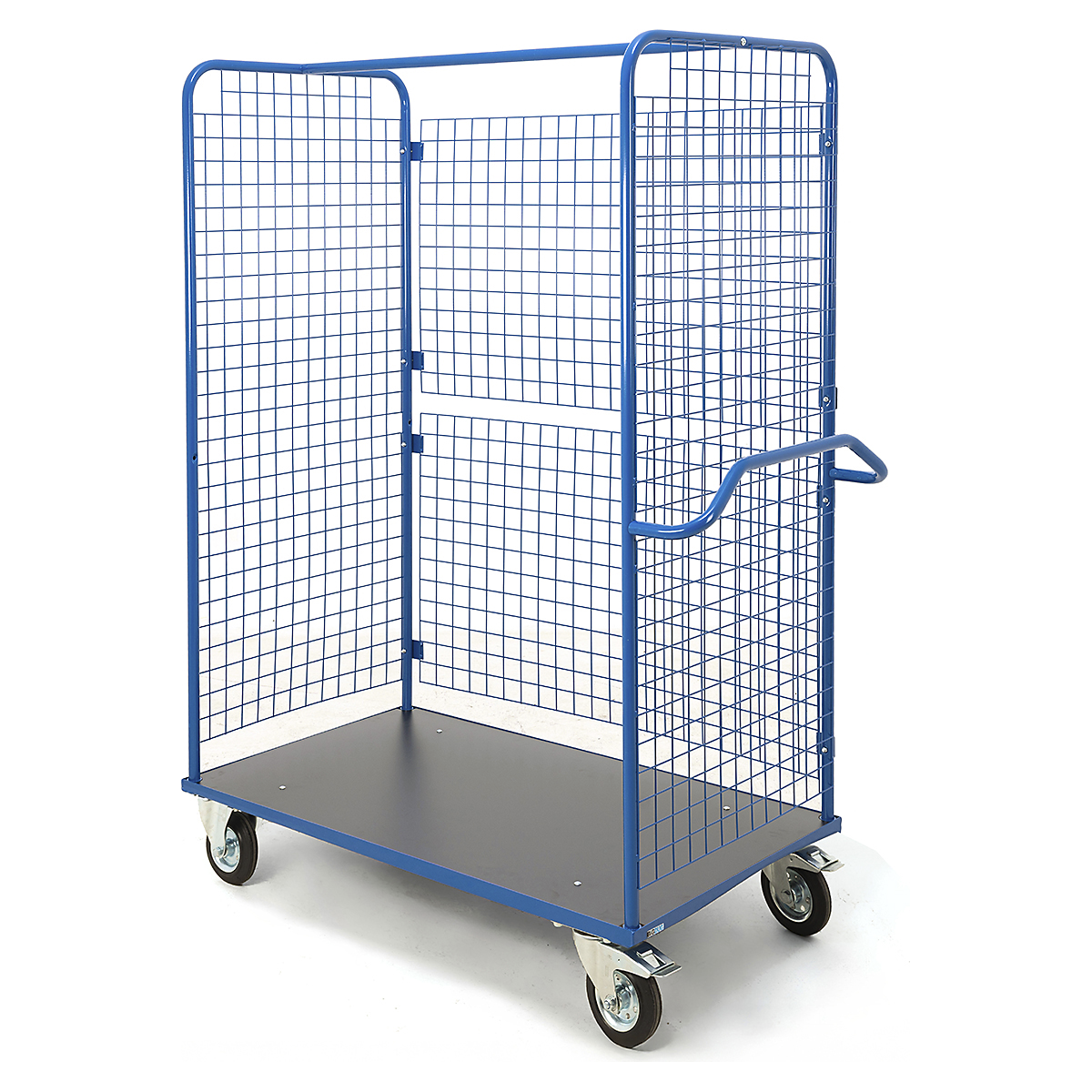

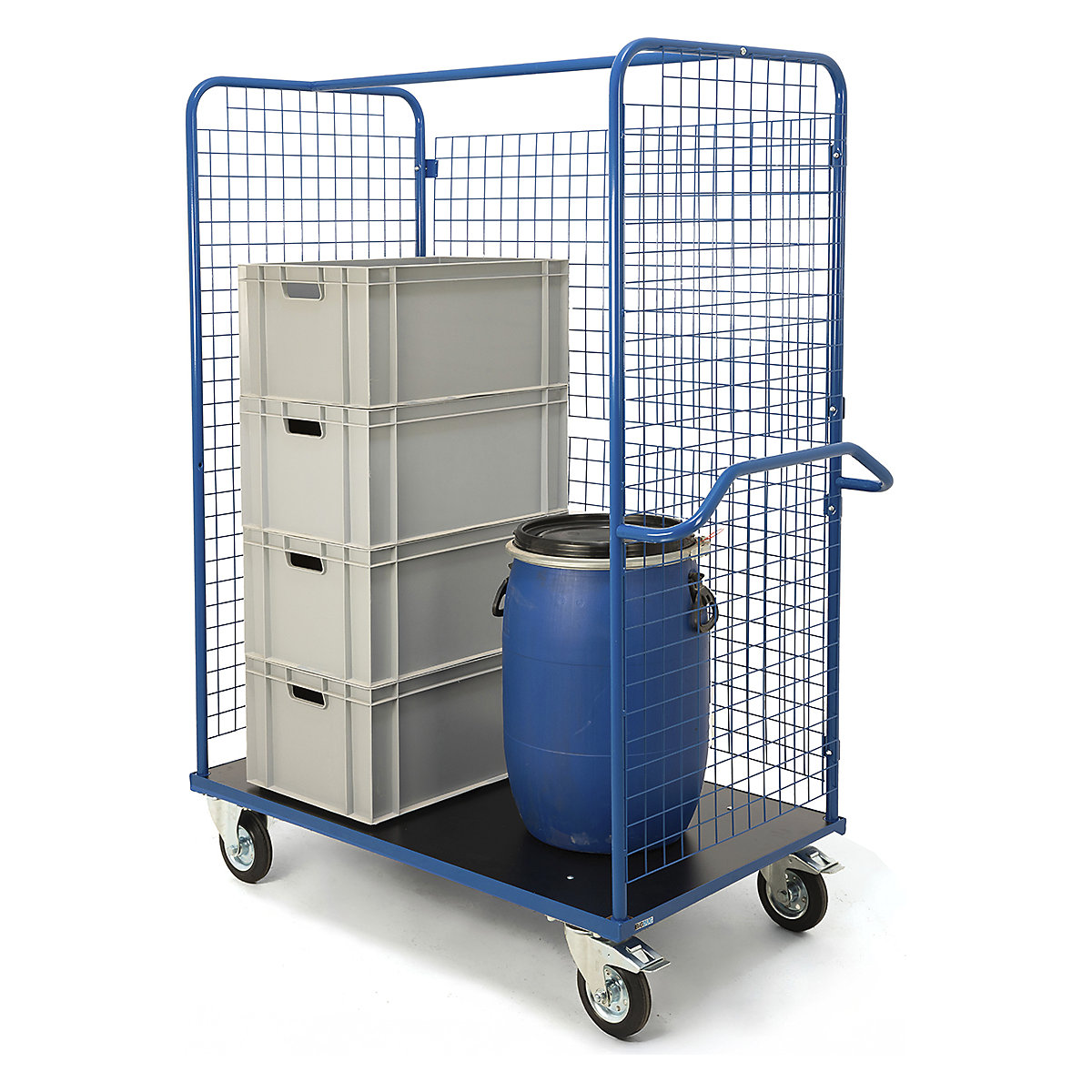

BiGDUG Mesh Three Sided Heavy Duty Stock Trolley
Type
Key Feature
£429.00
£343.00
Price / pack (Excl. VAT)
Free delivery on orders over £1000 ex VAT / £1200 inc VAT
Delivery time: 2-3 Working Days
Order until 15:00 for next day delivery
Product description

The BiGDUG Mesh Three Sided Heavy Duty Stock Trolley is ideal for the handling and picking of goods. Manufactured with powder coated steel framework, fitted with 160mm castors and a practical wipe clean laminated deck.

  • Total SWL* of up to 500kg UDL** depending on the castor type selected - see specification table below

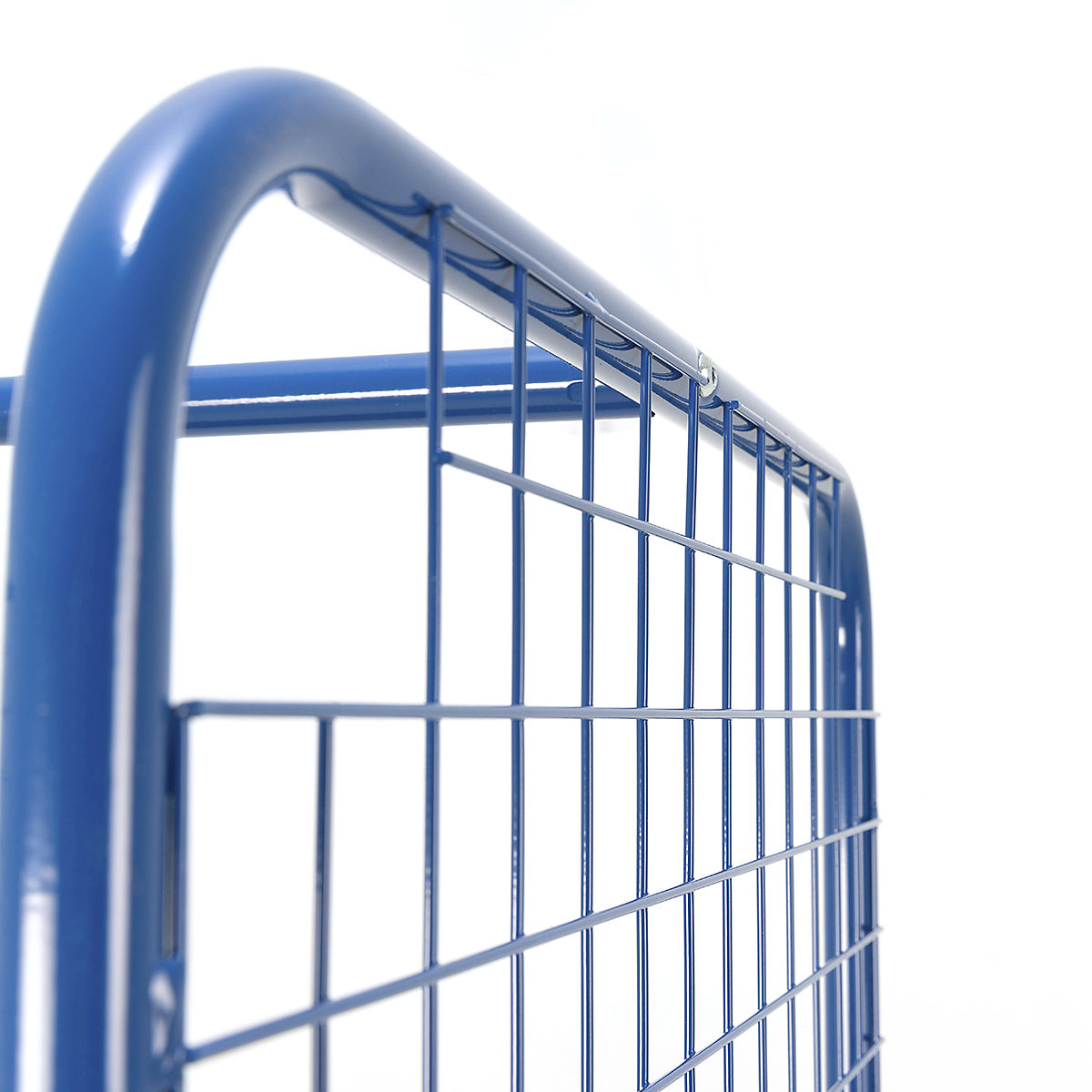

  • Supplied with mesh sides and mesh back panels
  • Upgrade to heavy duty castors for best stability and maneuverability even with heavier loads and uneven surfaces
  • Open fronted for easy access
  • Castor, wheel diameter of 160mm
  • Trolleys with 4x swivel castors are designed for pushing and offer easier turning and manoeuvrability, similar to a shopping trolley
  • Trolleys with 2 fixed and 2 swivel castors are steadier in a straight line but do not manoeuvre as easily.

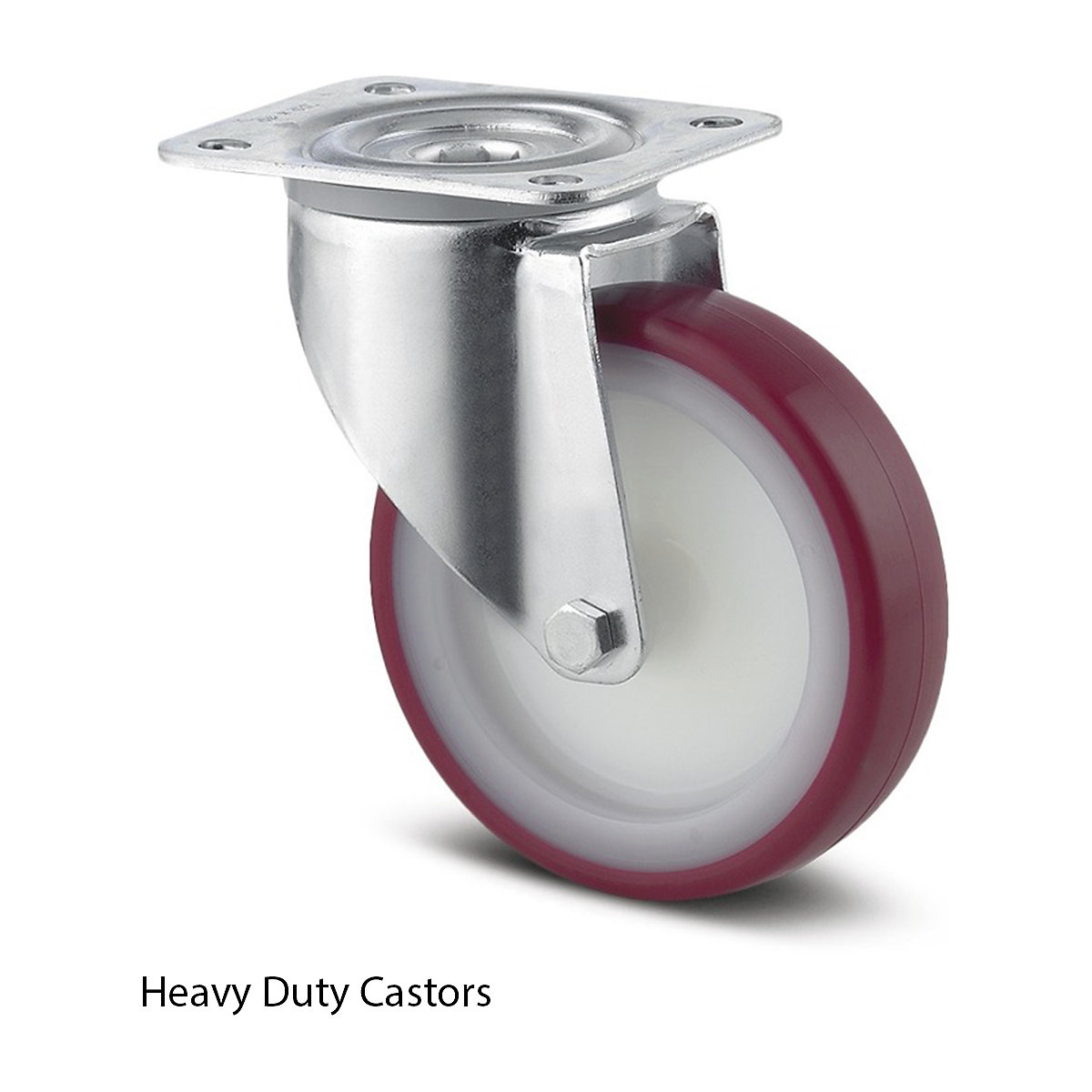

  • We recommend red PU heavy duty castors for best maneuverability due to lower roll resistance
  • Simply choose the castor that suits your needs

*SWL = Safe Working Load

** UDL = Uniformly Distributed Load

Specification BiGDUG Mesh Three Sided Heavy Duty Stock Trolleys
Platform Dimensions: 235h x 700w x 1200l mm
Overall Dimensions (with Handle) 1770h x 700w x 1310l mm

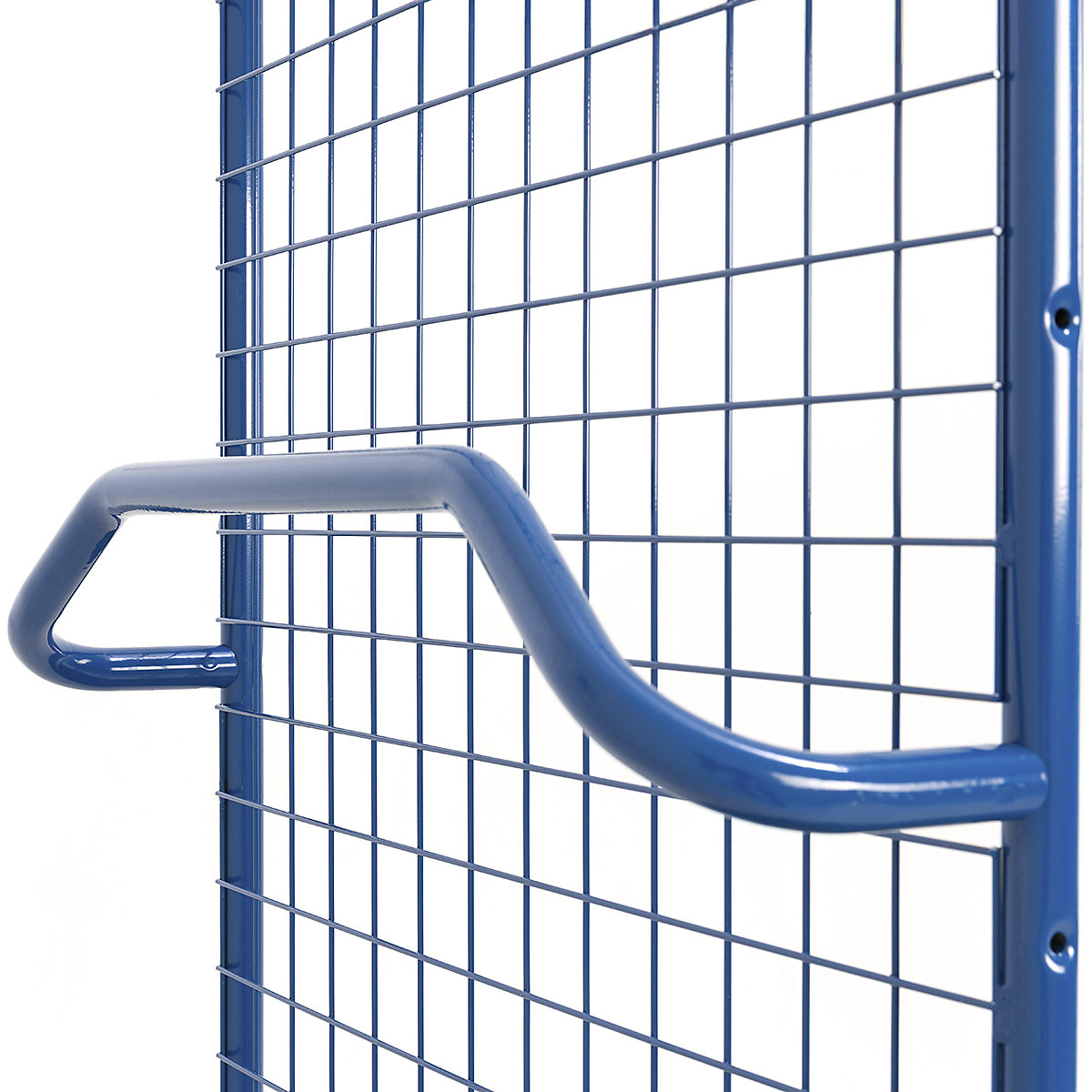

Handle Height 1400mm
Floor Clearance 200mm
Deck Material Laminated MDF
Frame Material Steel
Wheel Dia (mm) 160
Wheel Tread (mm) 23
Wheel Bearing Roller
Standard Castor Material Rubber
Standard Castor Weight Capacity 300kg UDL
Heavy Duty Castor Material Polyutherene
Heavy Duty Castor Weight Capacity 500kg UDL
Build Self Assembly
‌
‌
‌
‌
‌
