Code: BDIFTXBL

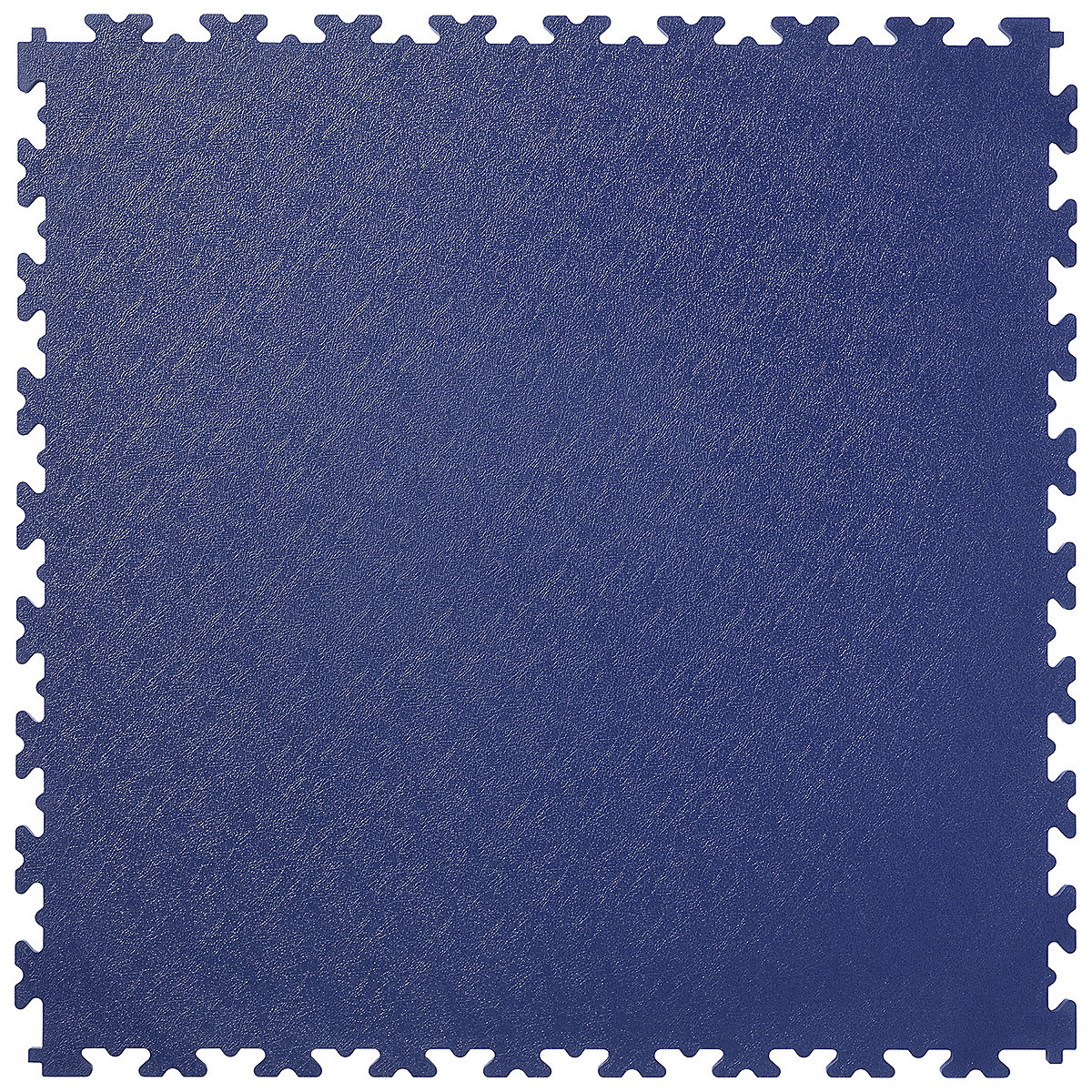

BiGDUG Interlocking Floor Tile | X-Joint | 7h x 497w x 497d mm | Pack of 4 | Blue

BiGDUG Interlocking Floor Tiles | X-Joint
Colour
Delivery time: 4-5 Working Days
Product description

UK-made, ultra-tough and dependable 7mm thick interlocking PVC floor tiles, ideal for garages, gyms, utility rooms and home offices. Easy to install over existing floor surfaces.

  • Quick & simple DIY installation
  • No adhesive required (unless in direct sun light or near heat sources)
  • Ideal for damp, dusty or contaminated floors
  • Manufactured in the UK
  • Smooth PVC Surface
  • Withstands Vehicles & Machinery
  • Anti-slip and resistant to fire, chemicals and impacts
  • Movable & Reusable
  • Coverage Per Pack: 1m²
  • Darker coloured tiles are recommended for areas where vehicles will be parked to reduce rubber tyres staining tiles

Specifications

Specifications BiGDUG Interlocking Floor Tile
Dimentions (mm) 497 x 497
Thickness (mm) 6.8 +/- 0.3
Weight (kg) 8.86/m²
Guarantee 10 Years
Anticipated Service Life 25 Years +
Material PVC
Joint X-Joint
Pack Size 4 Tiles
Slip Resistance EN 14041:2004 & DIN 51130:2004 - Pass R10
Fire Performance BS 476: Part 7 DIN 13501: 2004 - Class 1 Spread of Flame Bfl-S1 Does not support combustion
Stain Resistance EN 423 - Good
Abrasion Wear Resistance EN 13845 & EN 649 - 50K Cycles Group T
Mechanical Resistance DIN 53516 - 17N/mm²
Resistance to Hot Objects/Solder Good
Thickness of Wear Layer EN 429 - 6 to 10mm
Hardness ISO 868 - 89-92 Shore A
Impact Resistance EN 13329-549 - 549kg/cm²
Noise Reduction EN 140-8 - >46db
Thermal Insulation 1.1 m²K/W
Determination of Length, Squareness & Straightness BS EN 428:1993 - <0.13% / 0.5mm max.
Chemical Resistance EN 13529 - Good resistance to most commonly used chemicals. Common acid oils & gas oil - No deterioration / Solvents - Not resistant to prolonged contact
Colour Fastness EN 50105-BO21 - 5
‌
‌
‌
‌
‌
