BiGDUG Ground Reinforcement Tiles | Pack of 4 Tiles | 0.96 Metre Square | 40h x 470w x 470d mm | Olive Green

BiGDUG Ground Reinforcement Tiles
NEW PRODUCT
Delivery time: 2-3 Working Days
Product description

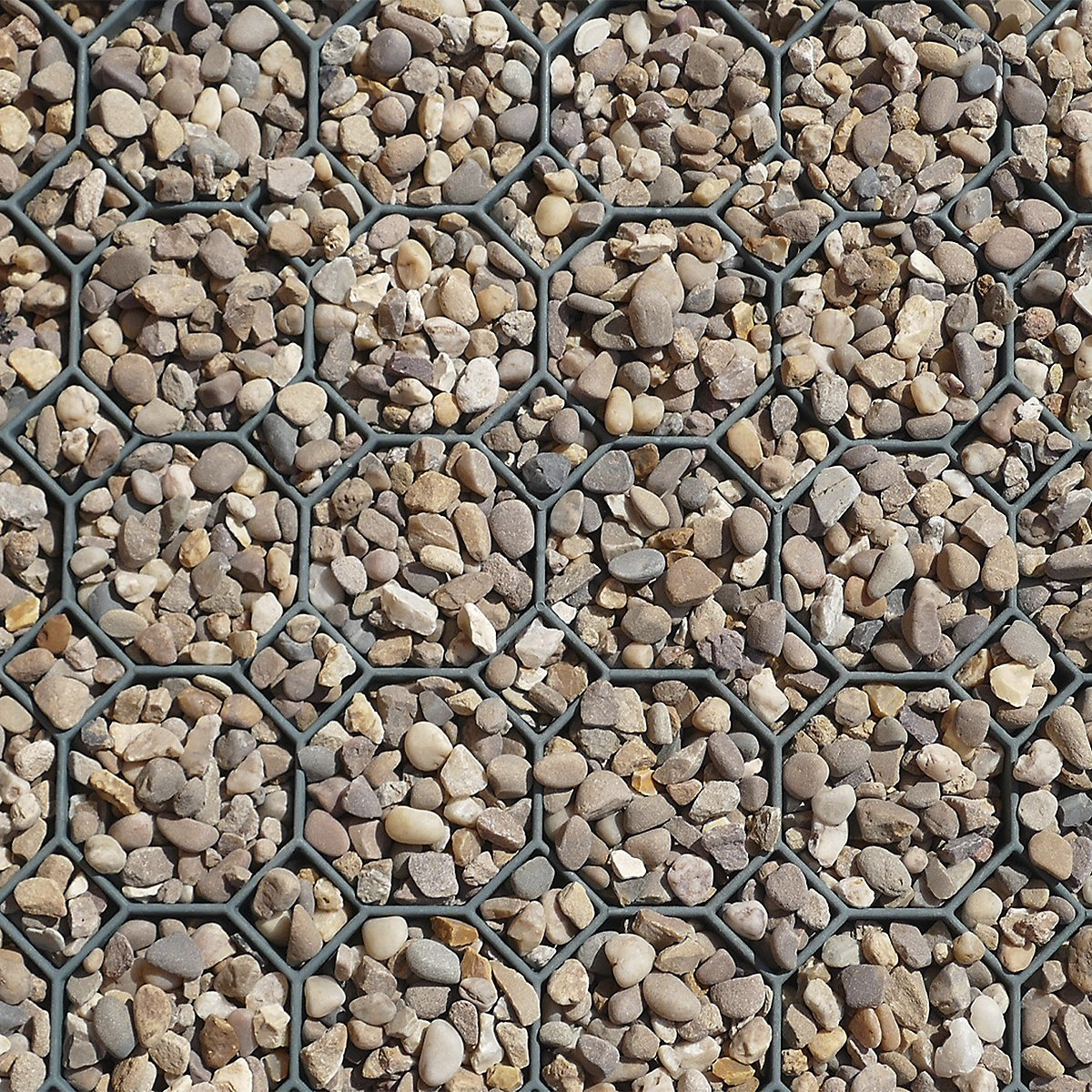

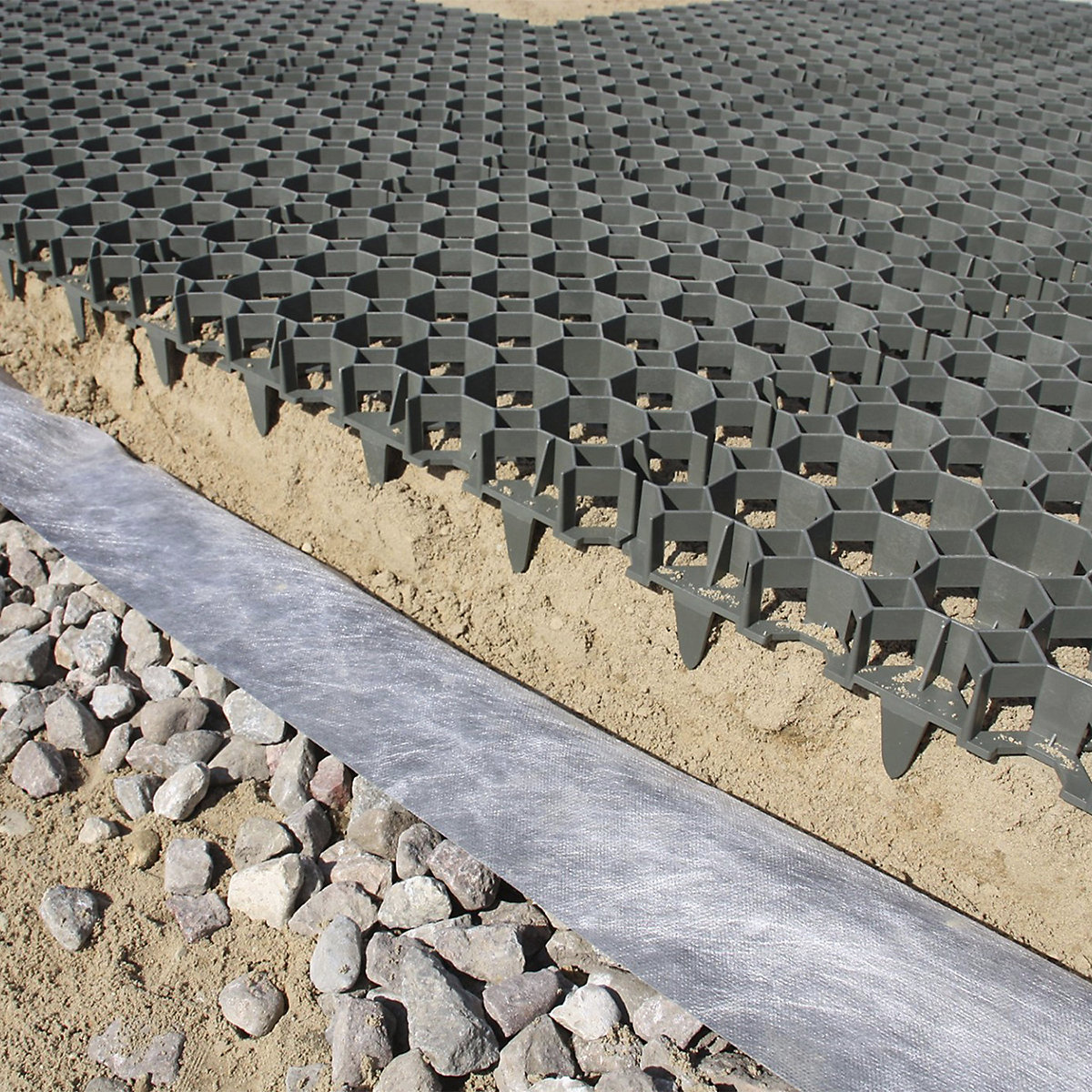

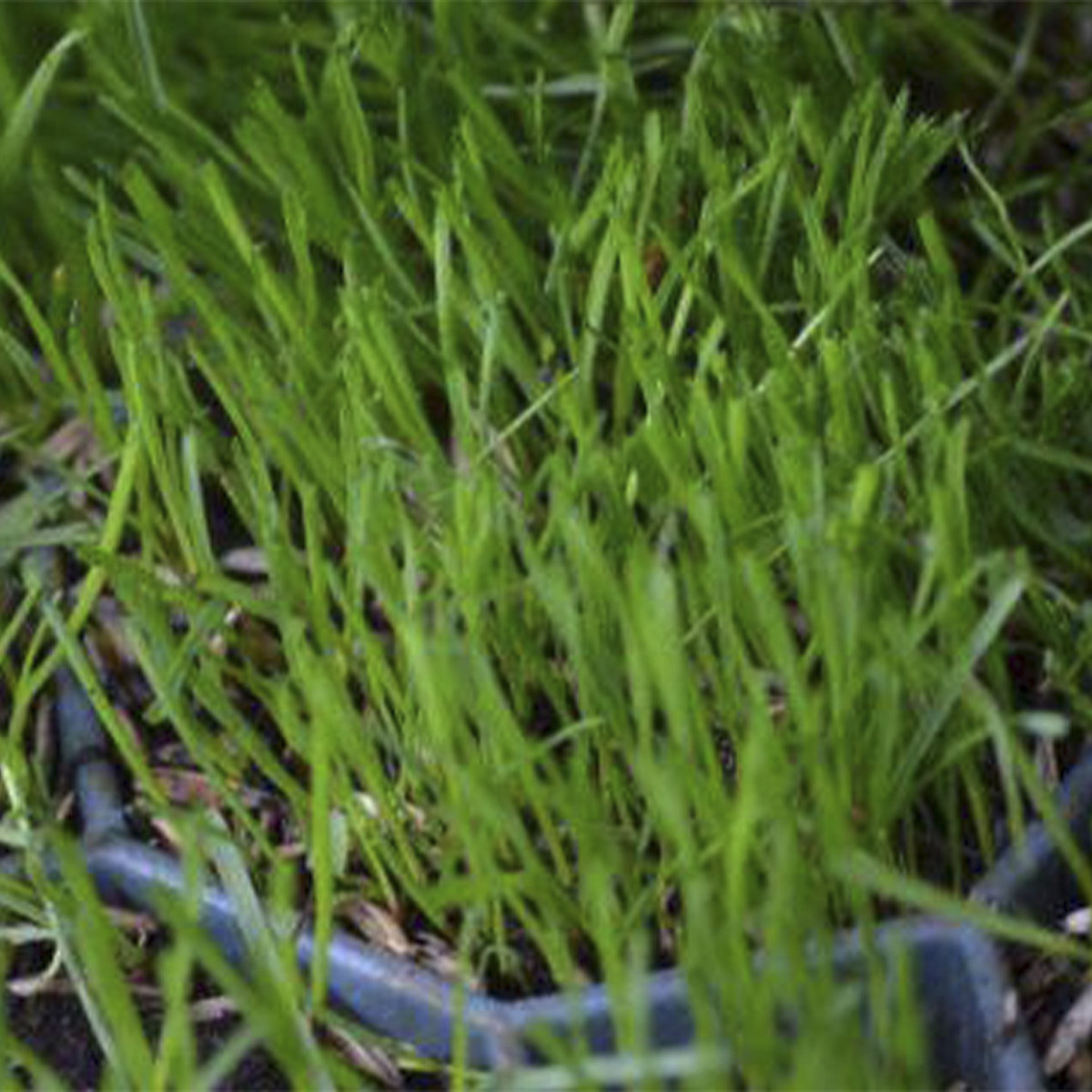

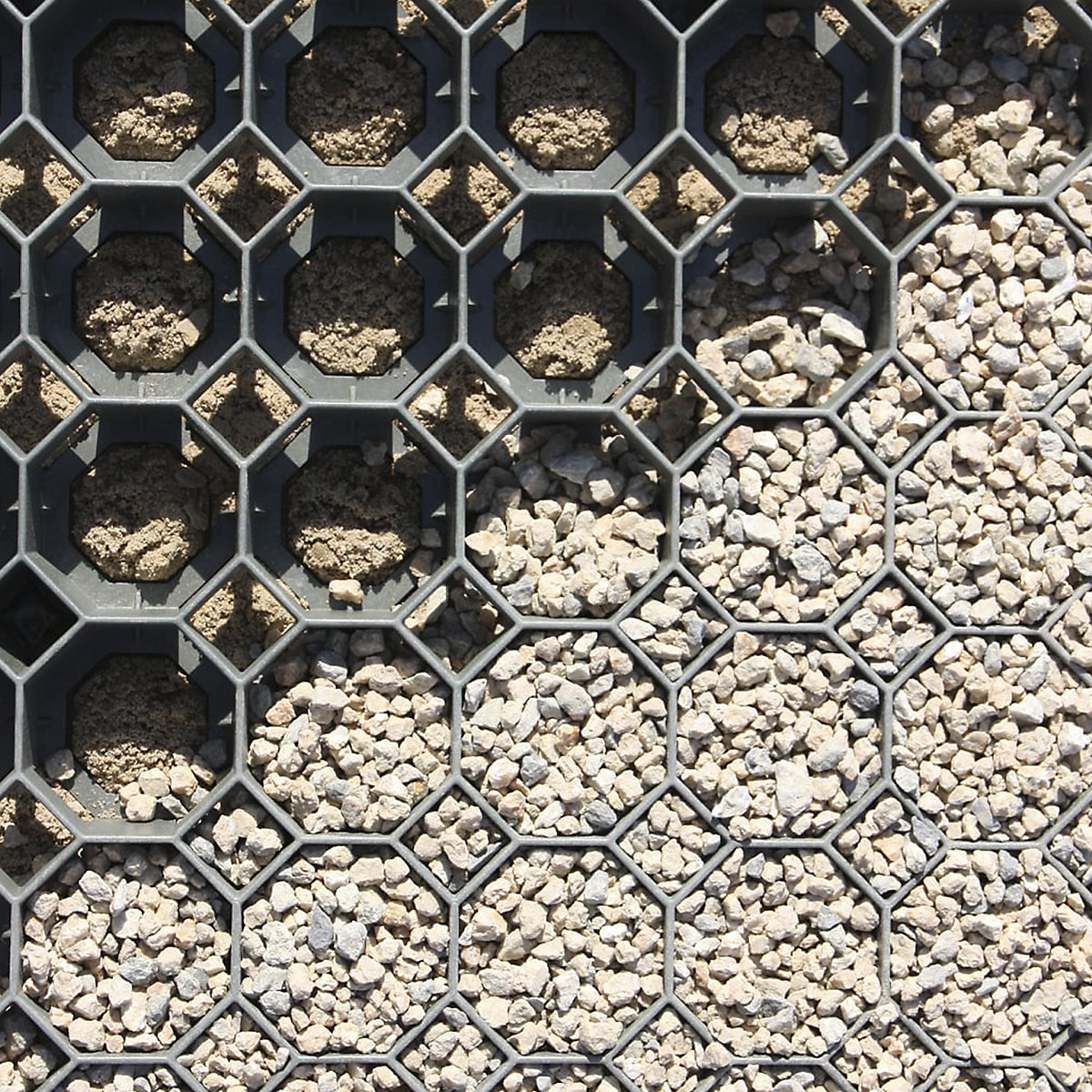

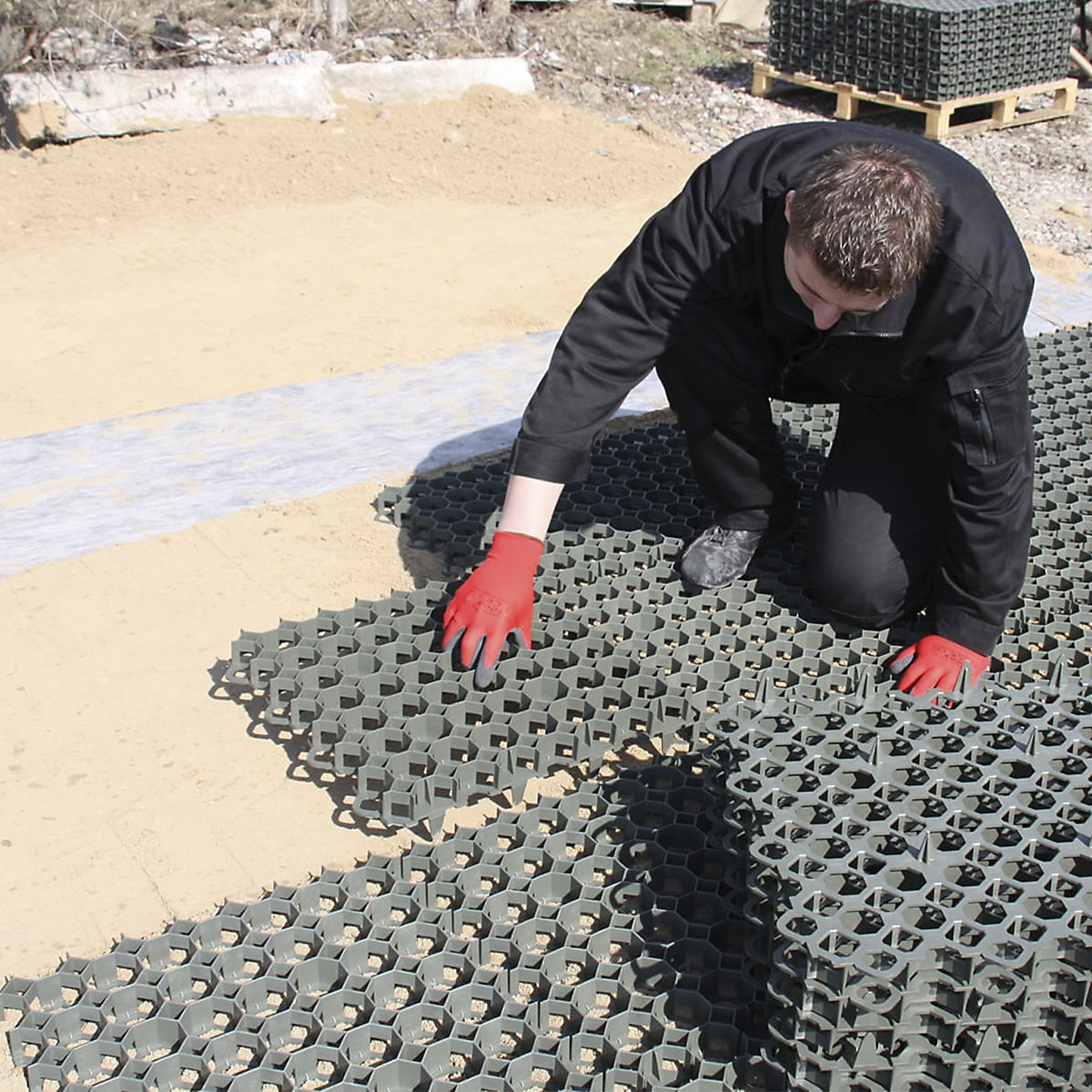

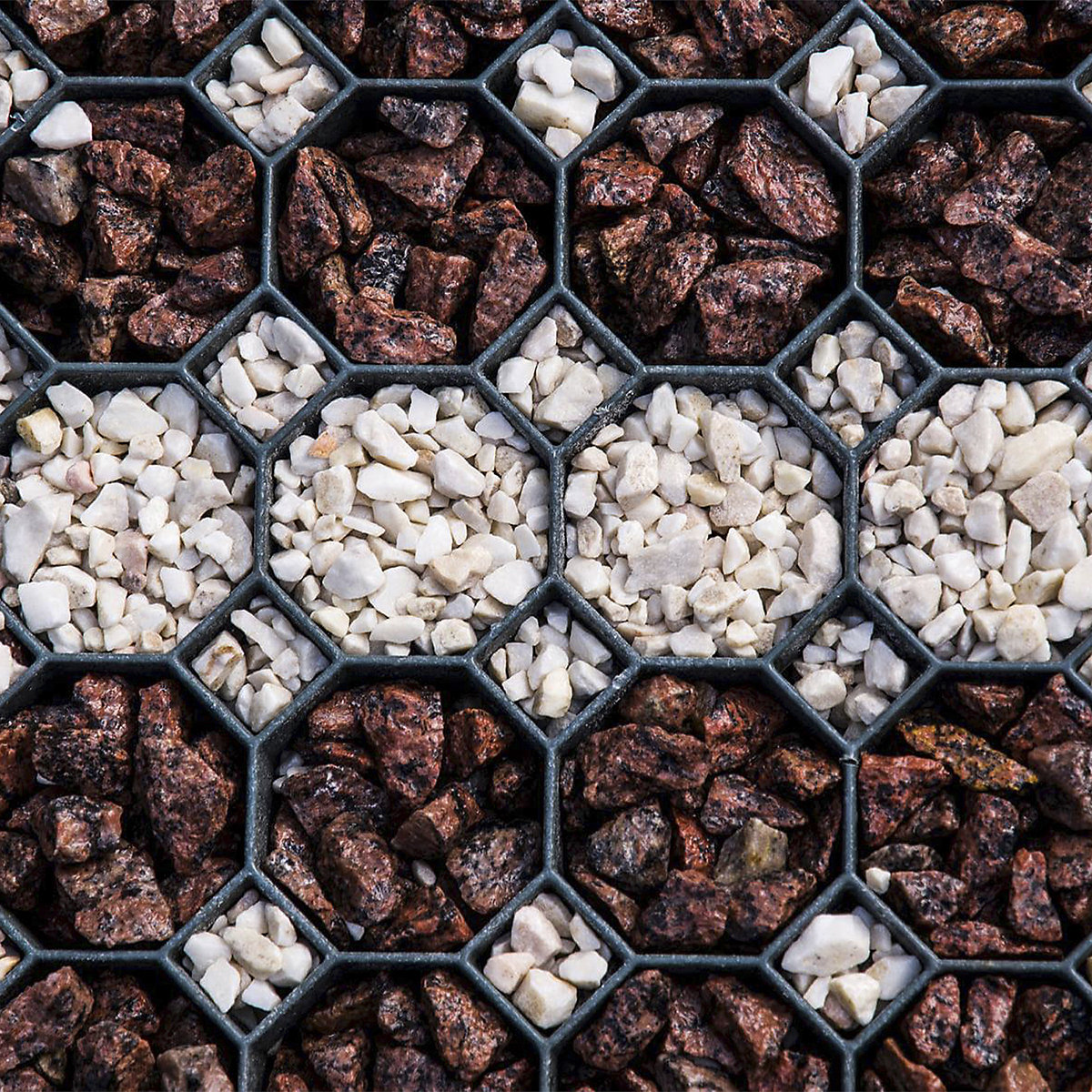

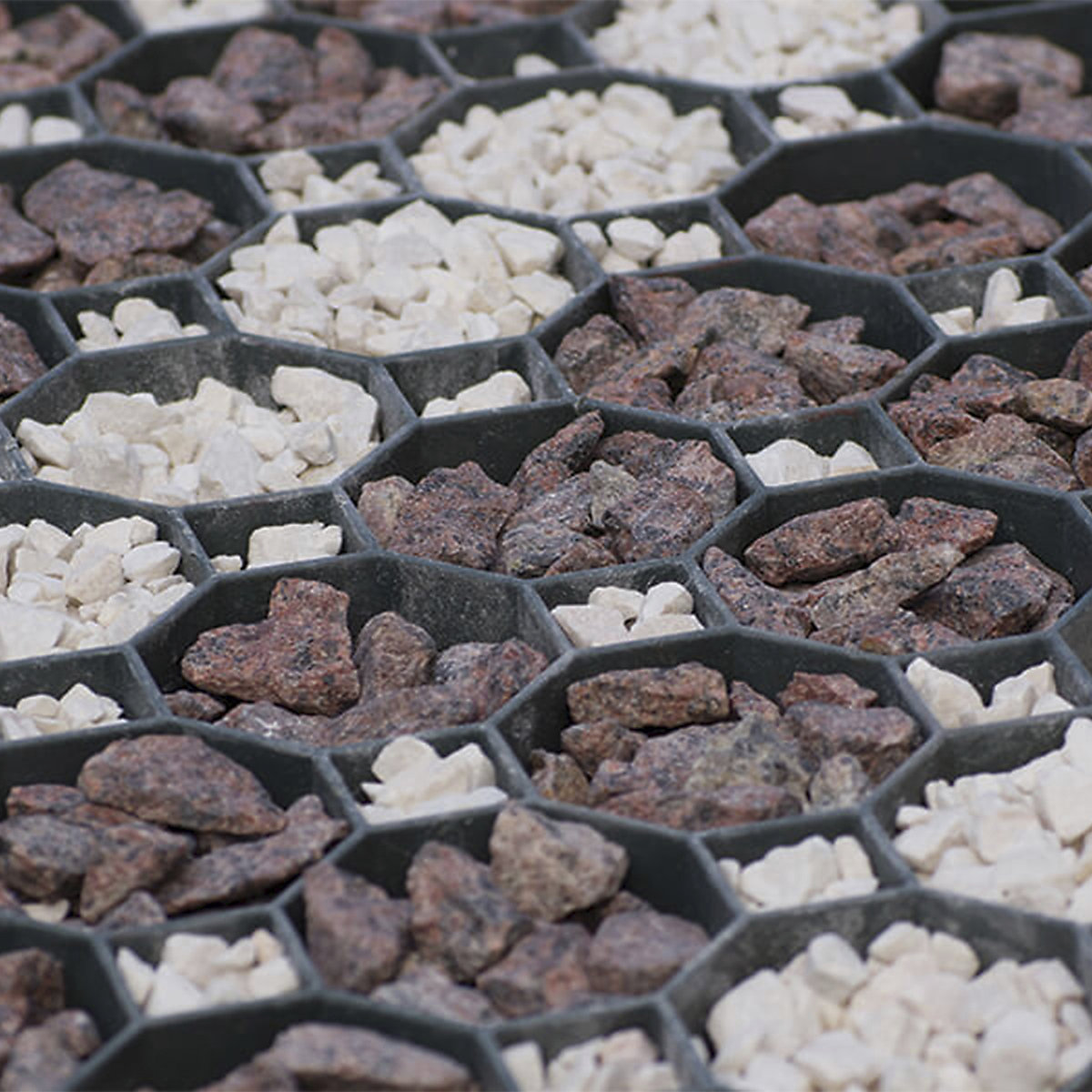

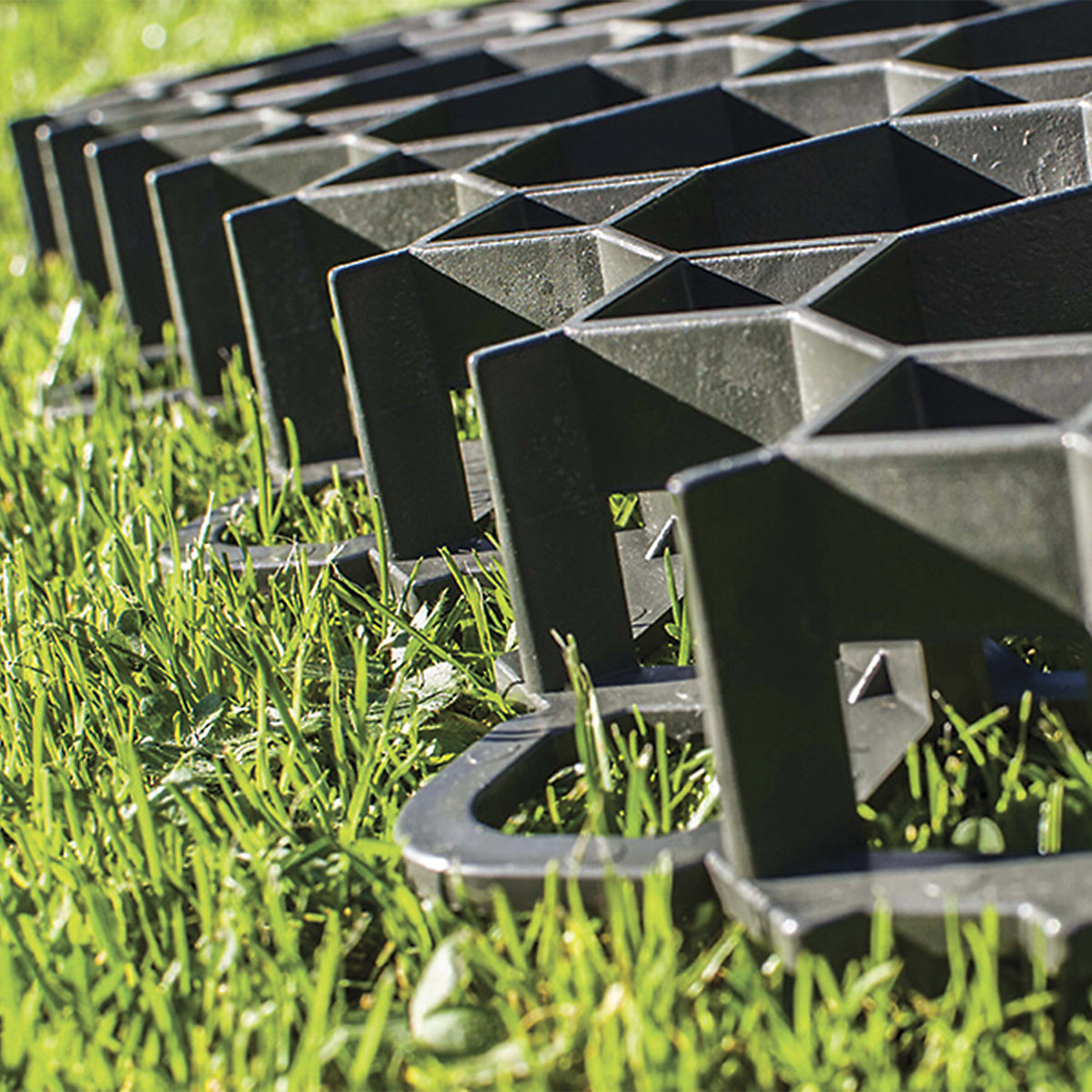

The BiGDUG Ground Reinforcement Tile is a cost effective solution for providing stabilisation for grass and gravel surfaces. Ideal for use in pedestrian walkways, cark parks, tree root protection and equestrian areas. Designed to be laid in the traditional fashion of providing a drainage layer, geotextile membrane, sand screed and gravel infill.

  • Tile dimensions: 470 x 470 x 40mm
  • Supplied in packs of 4 tiles
  • Carrying Load: Up to 250 t/sqm filled
  • Manufactured from 100% recycled polyethylene
  • Resistant to acids, alkalis, alcohols and petrol (de-icing salt etc)

Ideal to reinforce the likes of the following:

  • Caravan & Motorhome Parking

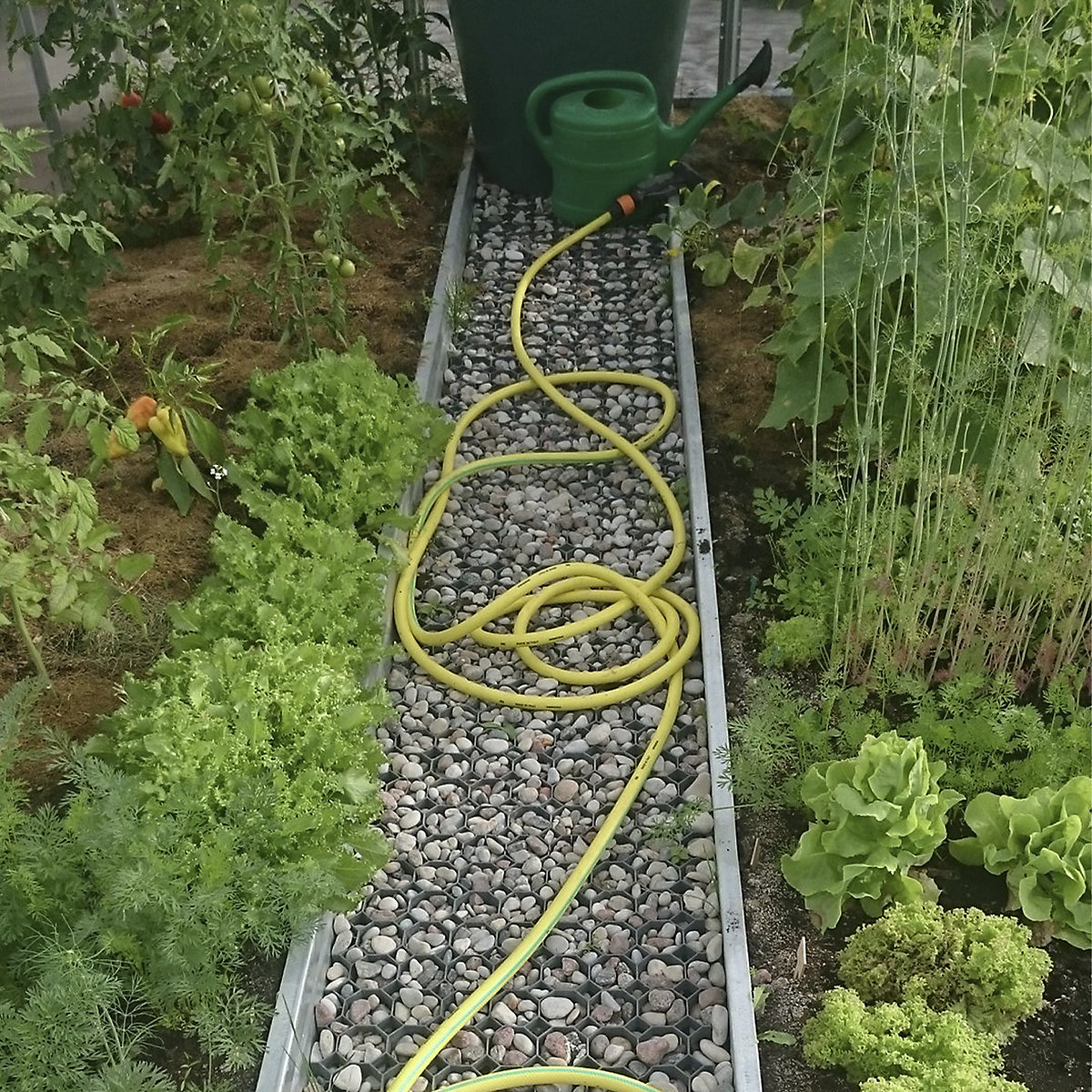

  • Pedestrian Walkways

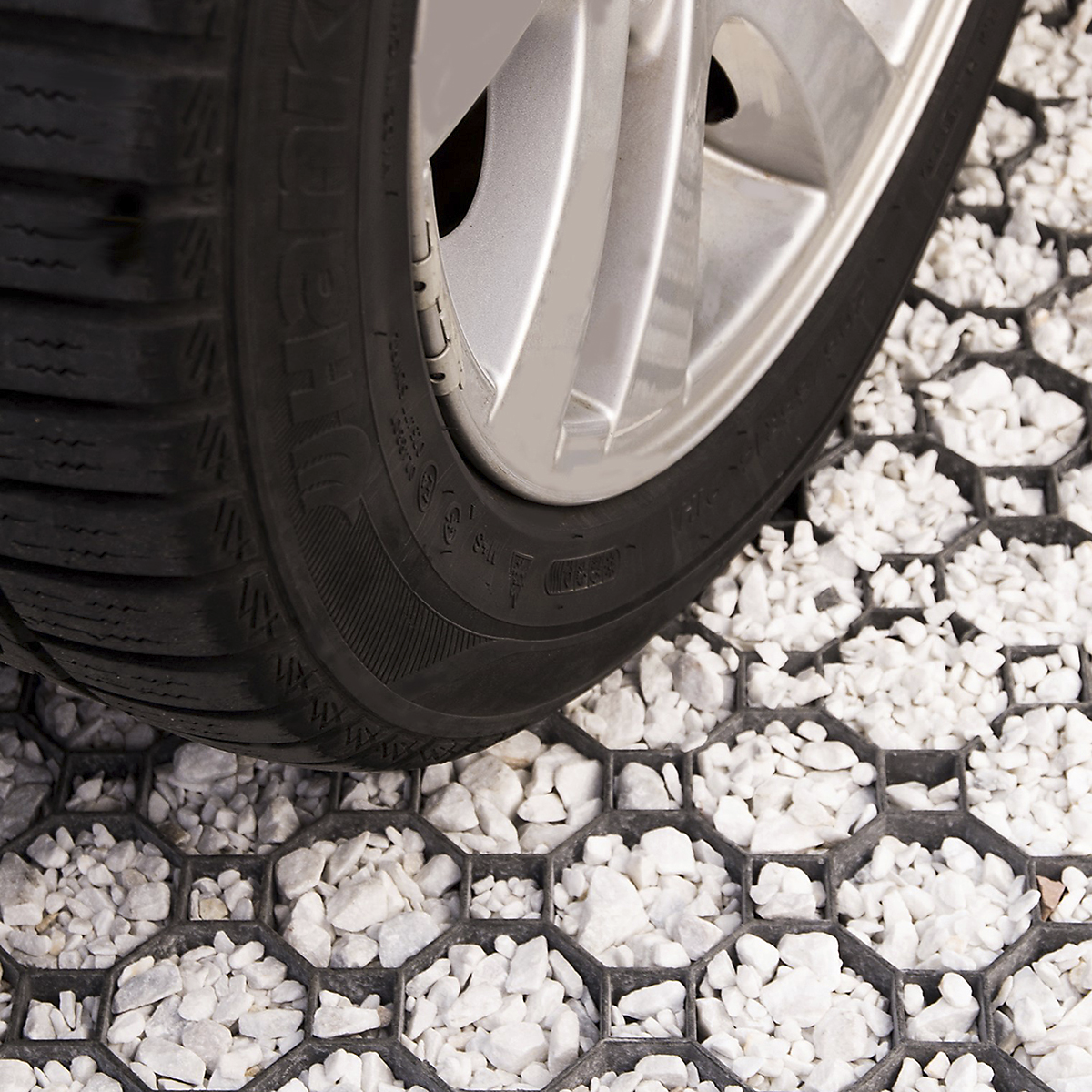

  • Vehicle Access Routes
  • Overspill Parking
  • Shed, Greenhouse & exterior Office Bases
  • Landscape Contruction
  • Events & Festivals

Specifications

Technical Specifications
Dimensions 470 x 470 x 40mm
Wall Thickness 3mm
Carrying Load Up to 250 t/sqm gravel infilled
Weight (sqm) 2.88kg
Weight (pce) 0.72kg
Wall Height 40mm
Material 100% Recycled Polyethylene
Pressure Resistance Up to 10t Axle Load (DIN 1072)
Dimensional Stability Temp Range -50° to +80°
Deformation 0.5% (at normal temp as above)
Moisture Absorption 0.01%
Solubility Resistant to Acids, Alkalis, Alcohols and Petrol (De-Icing Salt etc)

Please note: this product is made to order and therefore cannot be cancelled once ordered. As these items are made specifically to your request, they are also excluded from our returns policy unless damaged or faulty. Please contact our friendly sales team should you need further help or advice before ordering: 0333 200 5299.

‌
‌
‌
‌
‌
