BiGDUG Garage Corner Shelving Unit | 5x MDF Shelves | 1795h x 700w x 400d mm | 175kg UDL Per Shelf | Red
BiGDUG Garage Corner Shelving Unit | 5x MDF Shelves | 1795h x 700w x 400d mm | 175kg UDL Per Shelf | Red
- Next day delivery available, in stock products only
- Find a lower price & we'll match it
- Large Project? Call for site visit & quote
Friday 8am - 4:30pm
Excluding Bank Holidays

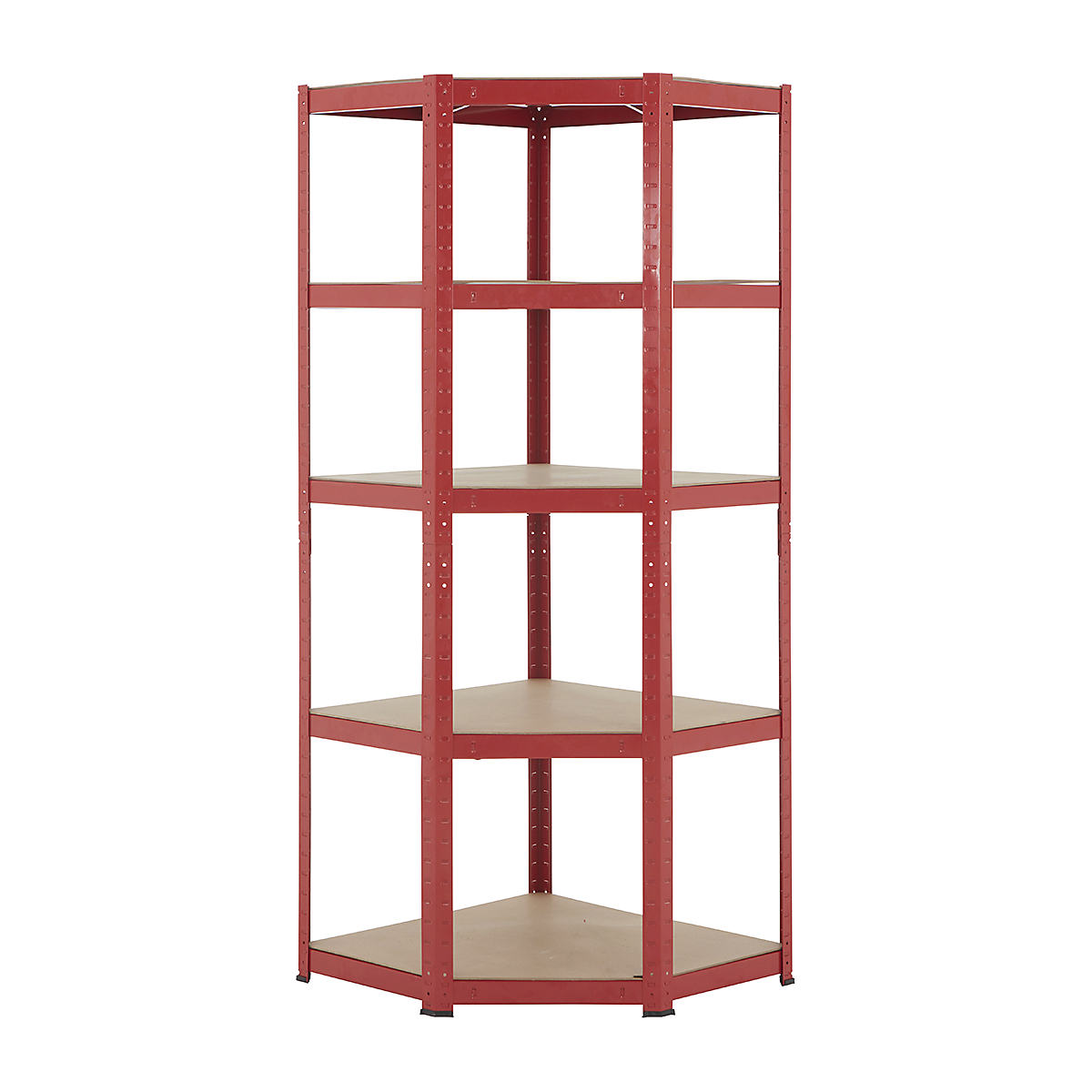

Make the most of the storage in your garage, shed or workshop with our easy-assembly garage corner shelves. Designed with five adjustable storage shelves to organise your space, this garage corner shelving unit is ideal for a variety of uses. Ingeniously designed to fit perfectly into corners, this shelving unit is a fantastic space-saving storage solution.
- Holds 175kg per shelf/875kg per bay UDL*;

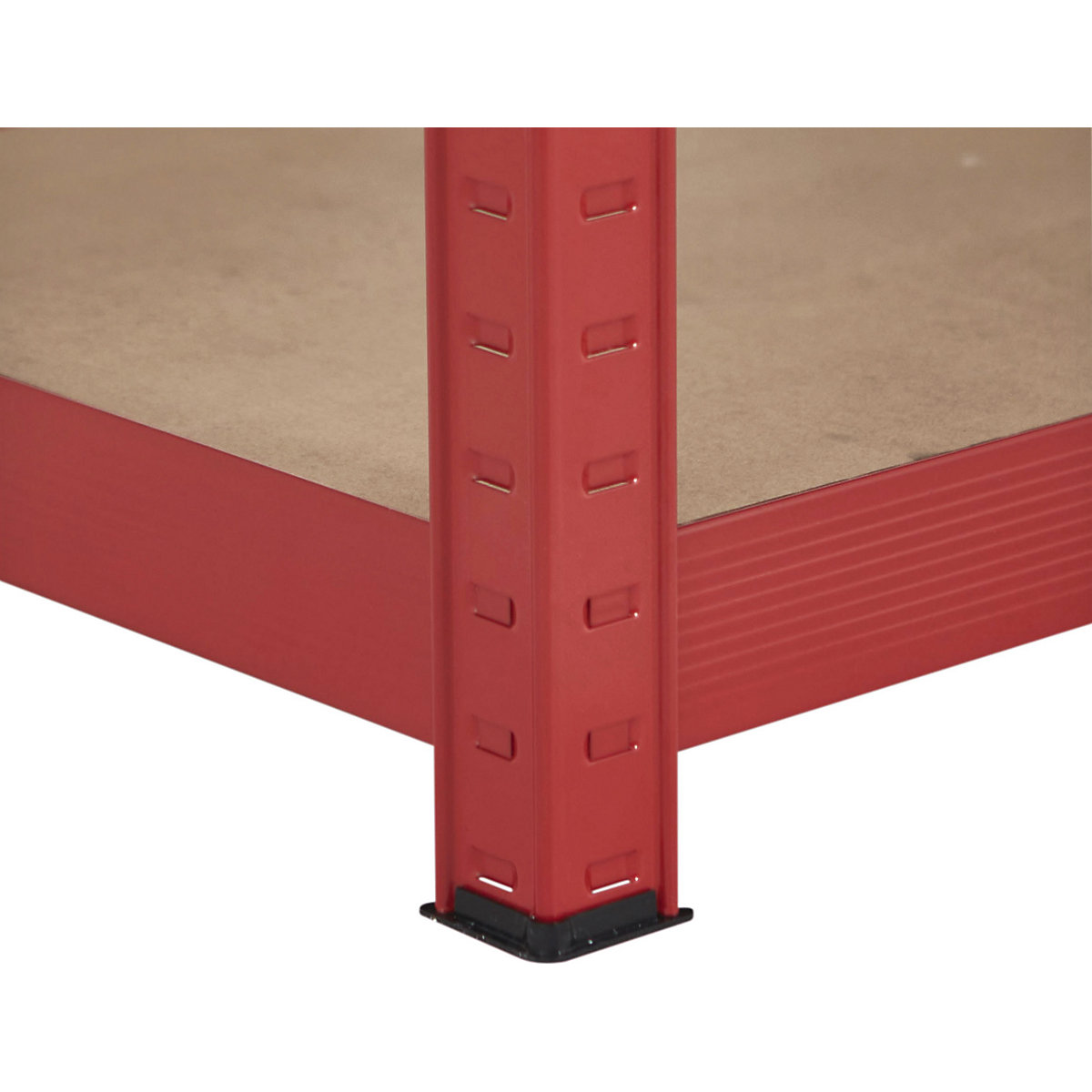

- Durable powder-coated steel frame
- Five adjustable MDF storage shelves per bay
- Easy to assemble boltless design - just tap together with a mallet
- Mega Deal shelving kits are available separately
- Available in red

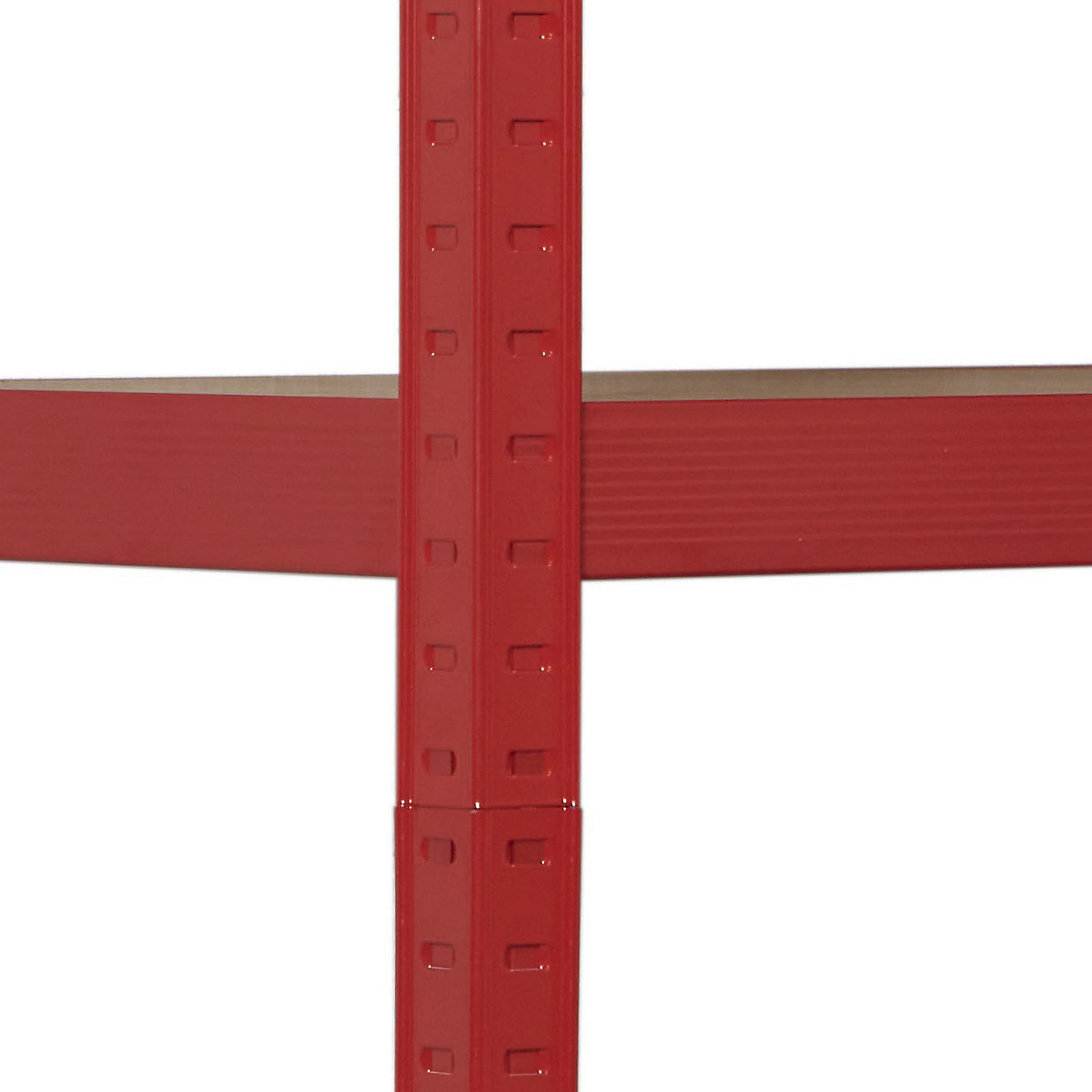

- Adjustable levels can be raised or lowered every 32mm
- Designed to fit in corners for space utilising storage

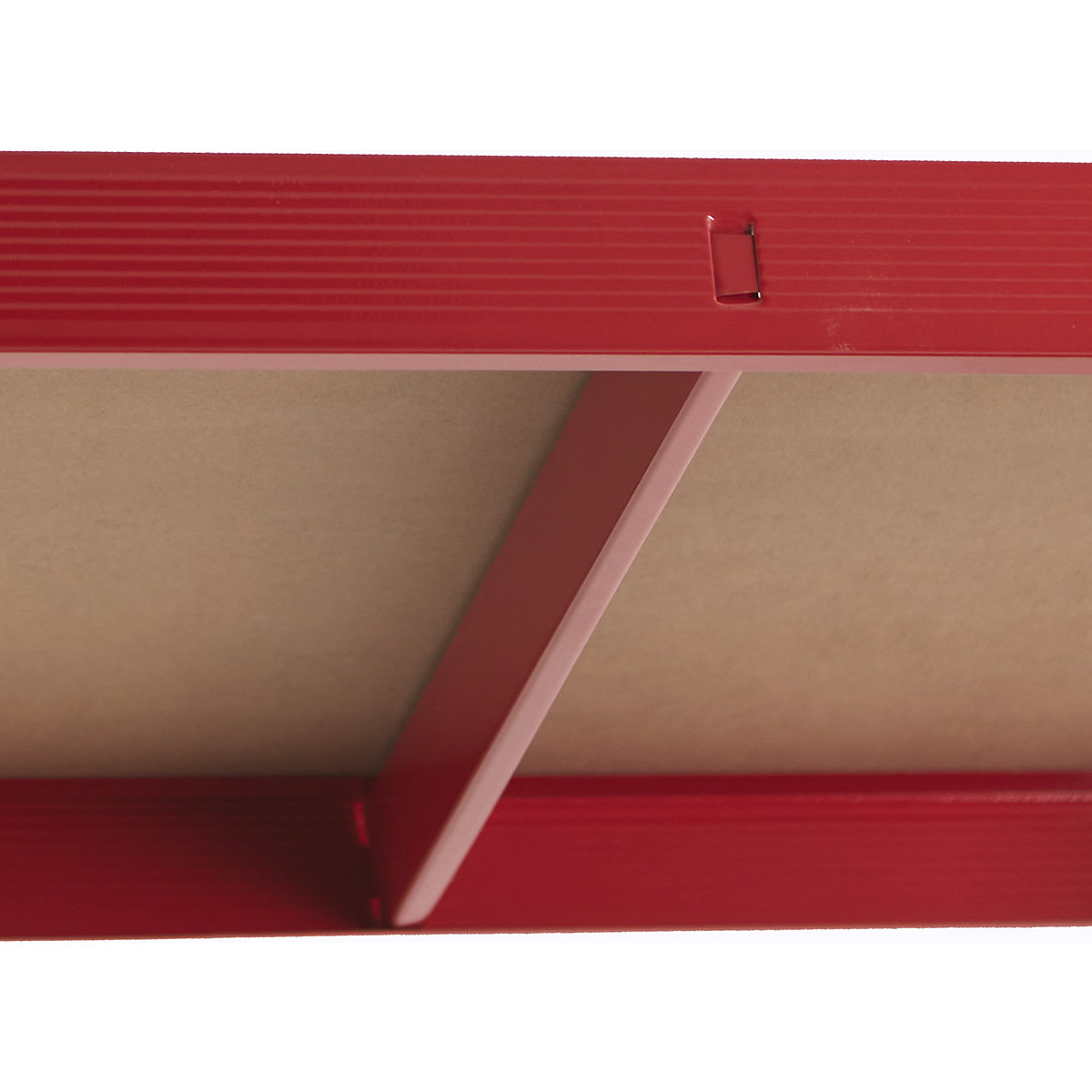

- Two under-shelf central support beams for each level
- Secure and mount shelving to a wall with our shelf fixings
Please note: If used in a damp or humid environment BiGDUG recommends MDF shelving decks are treated with a high quality wood varnish or sealant

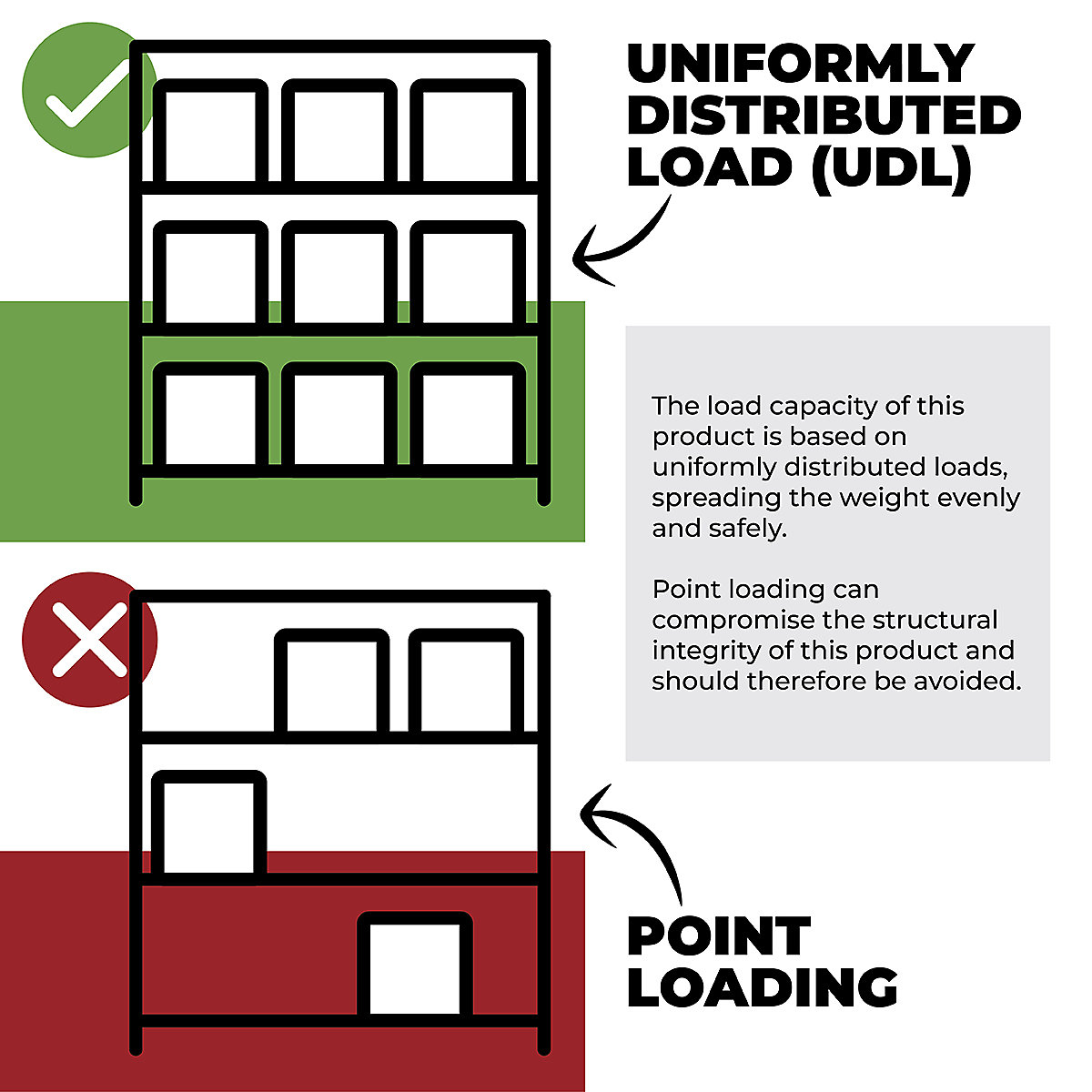

*UDL = Uniformly Distributed Load.
Shelving Specifications
| Data Field | 175RC |
|---|---|
| Upright Type | Split |
| Upright Steel Thickness | 0.7mm |
| Beam Steel Thickness | 0.7mm |
| Shelf Adjustment Increments | 30mm |
| Shelf Height | 52mm |
| MDF Thickness | 4mm |
| Total Bay Capacity | 875kg |
| Clear Width Front | 354mm |
| Clear Width Sides | 325mm |
| Extra Levels Available | N |
Fitting Guide
| Nominal Shelf Width mm | Clear Entry mm | Initial Bay External mm | Next Bay External mm |
|---|---|---|---|
| 700mm | 350mm | n/a | n/a |
External Height = H+5 Pitch = 30
All dimensions in Millimetres
Reliable steel
BiGDUG garage shelving units are made from reliable steel with a powder-coated frame and are useful for adding storage at home as well as in warehouses, stockrooms, and many other settings. Our Garage Corner Shelving Unit is manufacturer-tested and approved to hold up to 175kg UDL* per shelf, allowing you to store a wide variety of objects, tools, and equipment.
High-quality garage corner shelves
This garage corner shelving unit is of the highest quality and can be adjusted every 32mm, meaning you can customise your unit to fit your needs. It also boasts two under-shelf central support beams for each level, providing stability and sturdiness and ensuring your objects are stored safely in place.
Easy assembly
BiGDUG's garage corner shelving unit is excellent value for money. With a simple boltless design, you can install it easily by tapping the parts together with a rubber mallet. This also means that if you need to move it in the future, you can dismantle and erect the unit with ease to fit your needs.
Contact BiGDUG
BiGDUG is a reliable supplier of garage corner shelving units. If you're planning a large project and need some personal assistance, we can call to your site for a visit to assess your requirements.
For anything else, please contact us on 0333 200 5299.
Please note: These shelving bays are not recommended for the storage of fitness weights - please see our gym racking range for specialist products
