Code: B4KB5

BiG400 Metal Kanban Shelving System | 1980h x 915w x 610d mm | 5 Shelves

(2)

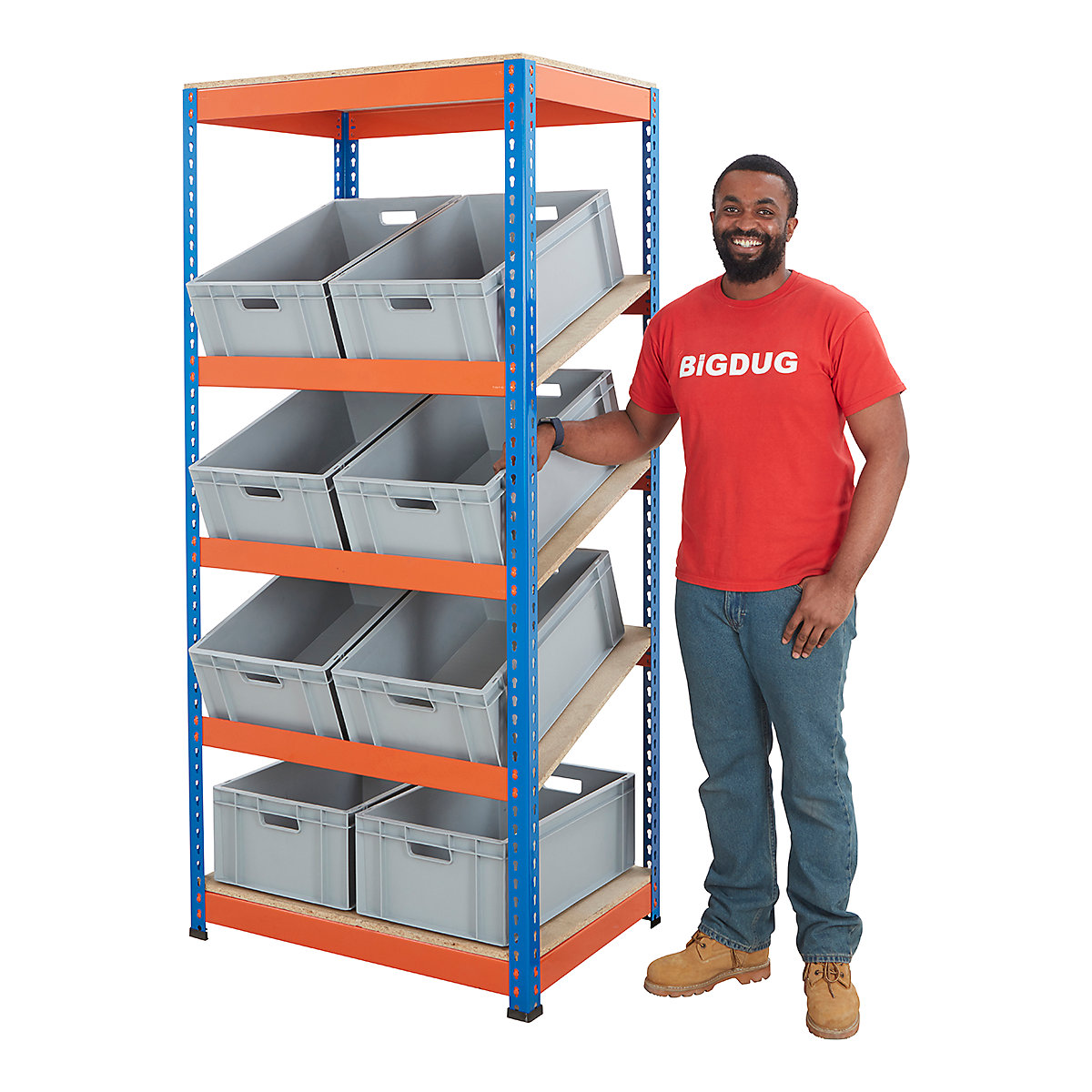

BiG400 Metal Kanban Shelving System
Capacity
Optional Extras
Shelves / Levels
Colour
Delivery time: 2-3 Working Days
Order until 15:00 for next day delivery
Product description

Make your stock flow easier in your picking area with our sloping Kanban shelving; the effective solution for product picking & efficient stock management.

  • Shelf load capacity: 120kg for 5-level bay or 85kg for 7-level bay
  • Profiled, premium-grade steel frame with powder-coated finish
  • Supplied with sloping and standard shelves with high-density chipboard decks

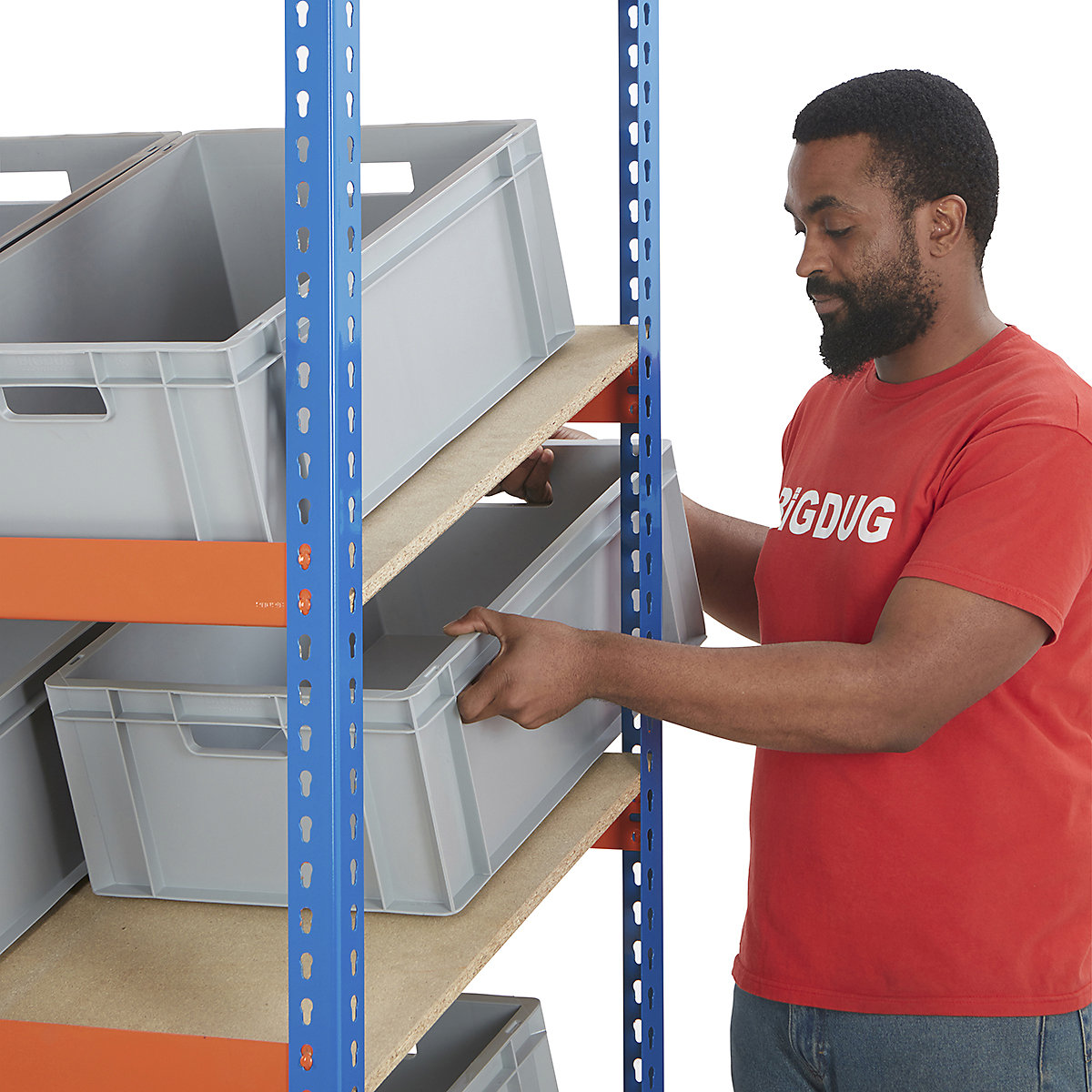

  • Rear-loading box design promotes easy and efficient picking system at the front
  • Choice of unit only or a complete kit with plastic parts bins, recycled or standard euro containers
  • Ideal solution for stock rotation within picking & packing environments
  • Simple boltless design - just tap together with a rubber assembly mallet
  • Available from stock & eligible for our Next Day Delivery service

Please note: Black recycled 20 Litre Euro Containers have 2 open carry handles, not 4 as seen in the images. Please refer here for correct imagery.

* UDL = Uniformly Distributed Load.

Please note: for bays 2135mm or wider, the chipboard is supplied in 2 pieces per level.

Kit Specifications

Product Code No. of Shelves No. of Sloping Shelves Type Container Quantity

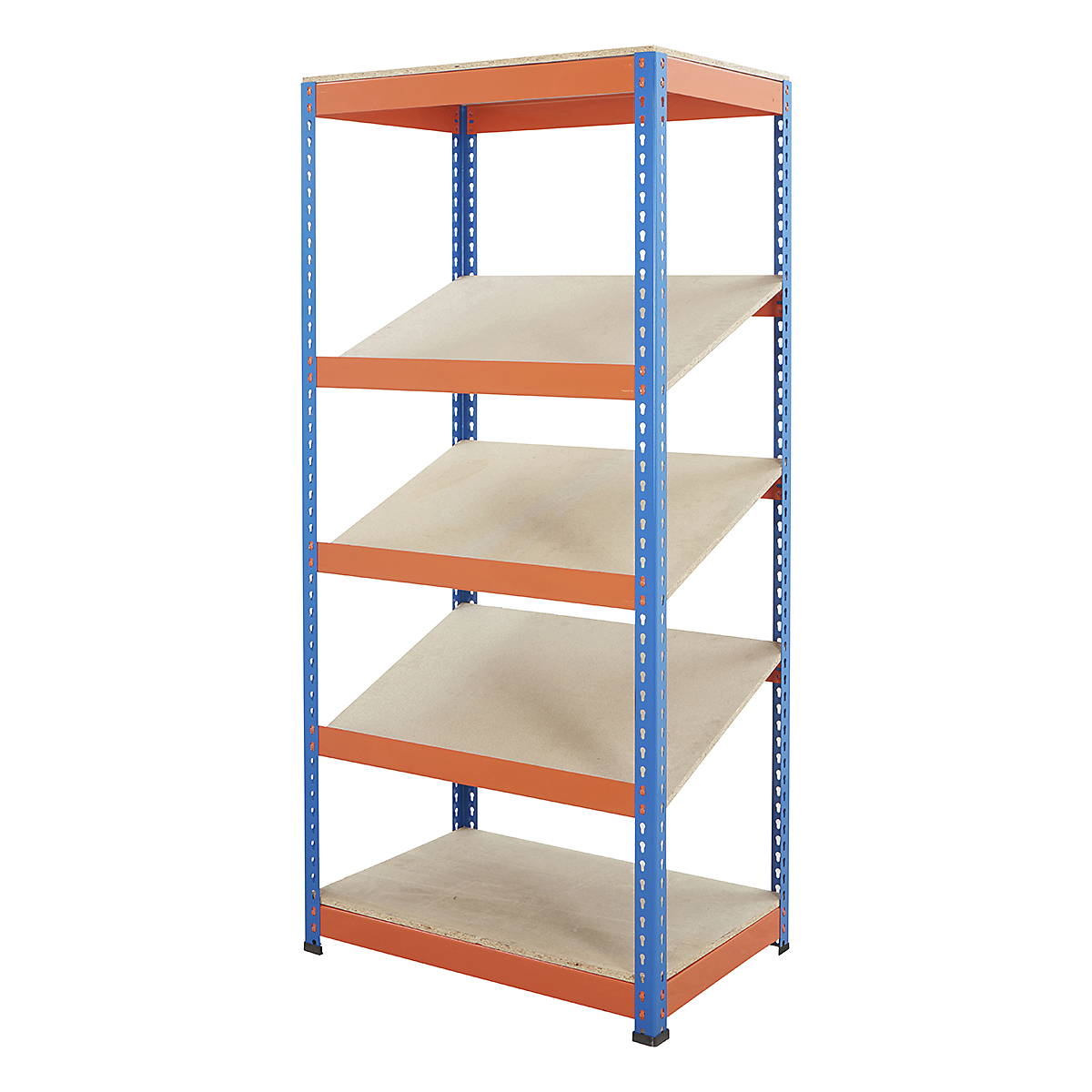

B4KB5 5 3 Unit Only N/A

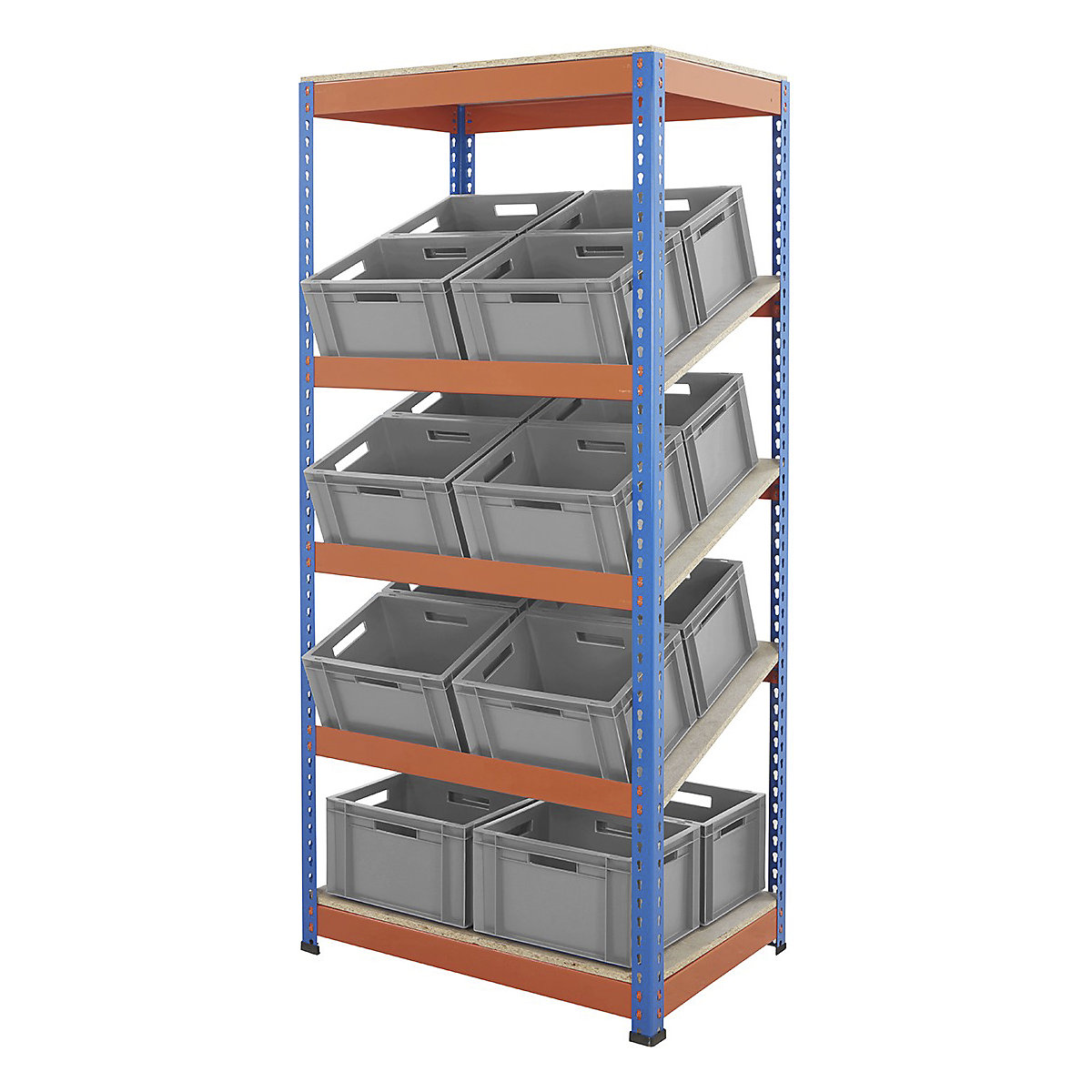

B4KB516G 5 3 Grey Euro Containers (BNB4322) 16

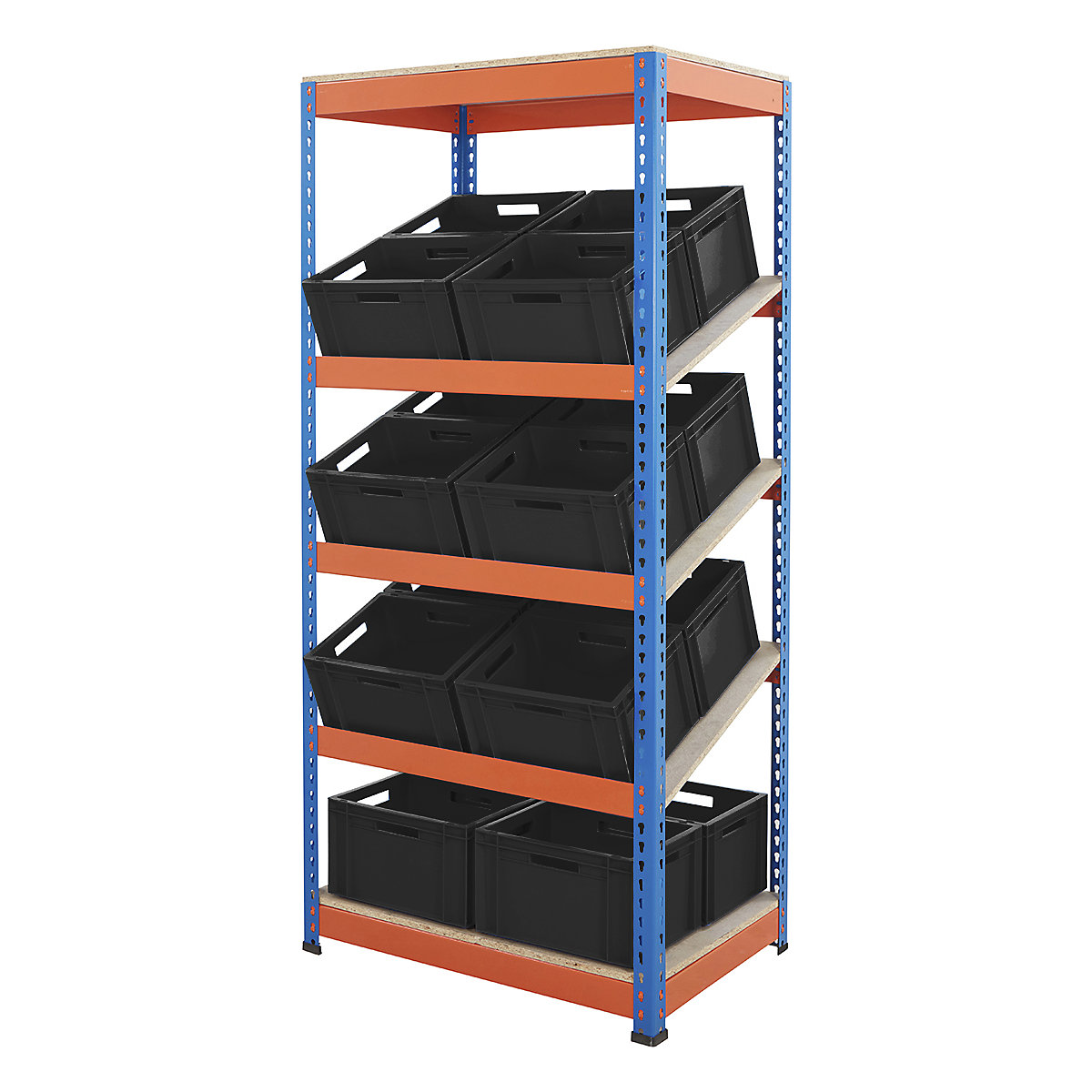

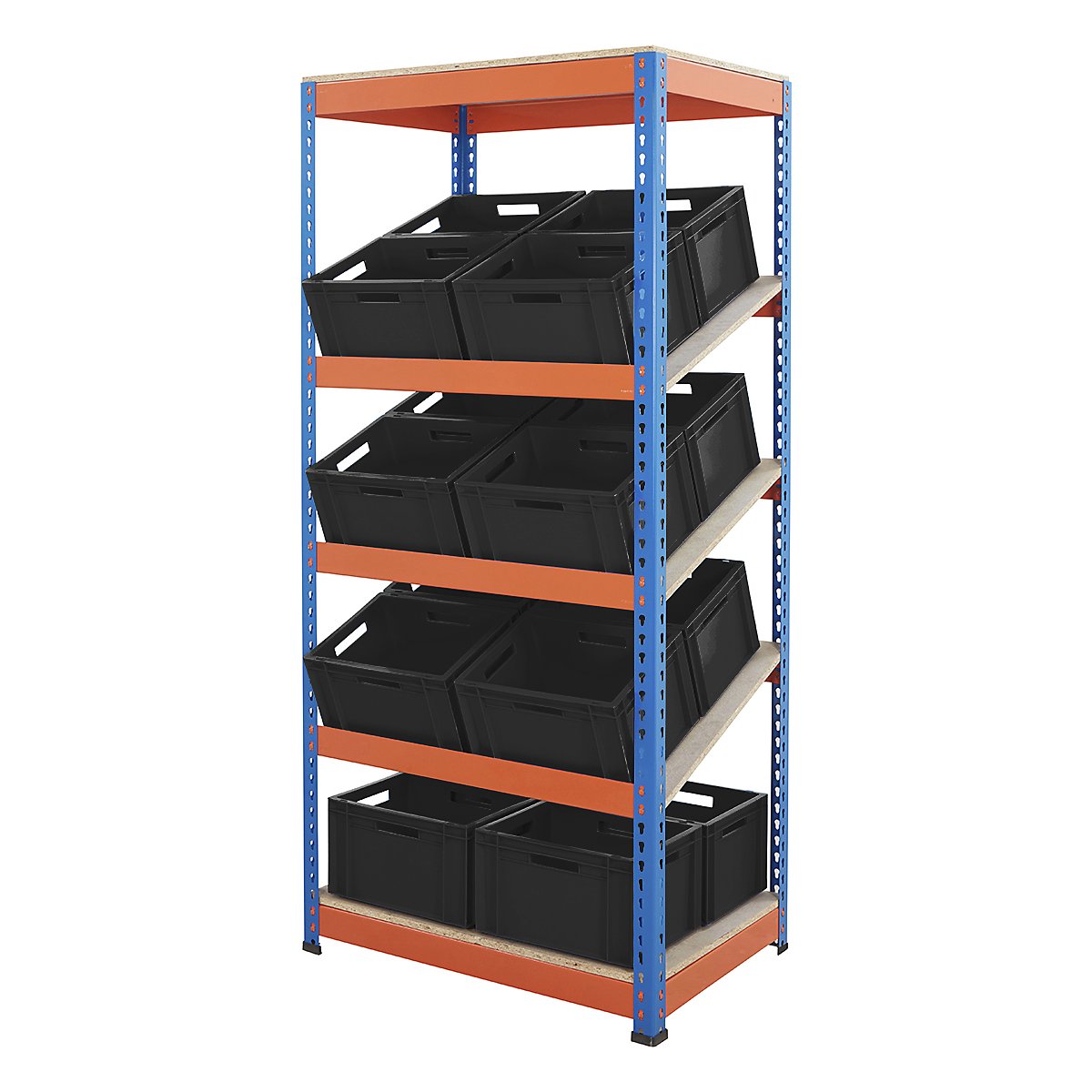

B4KB516GR 5 3 Black Recycled Euro Containers (BDEC2334BK) 16
B4KB58B 5 3 Blue Euro Containers (BNB4622B) 8

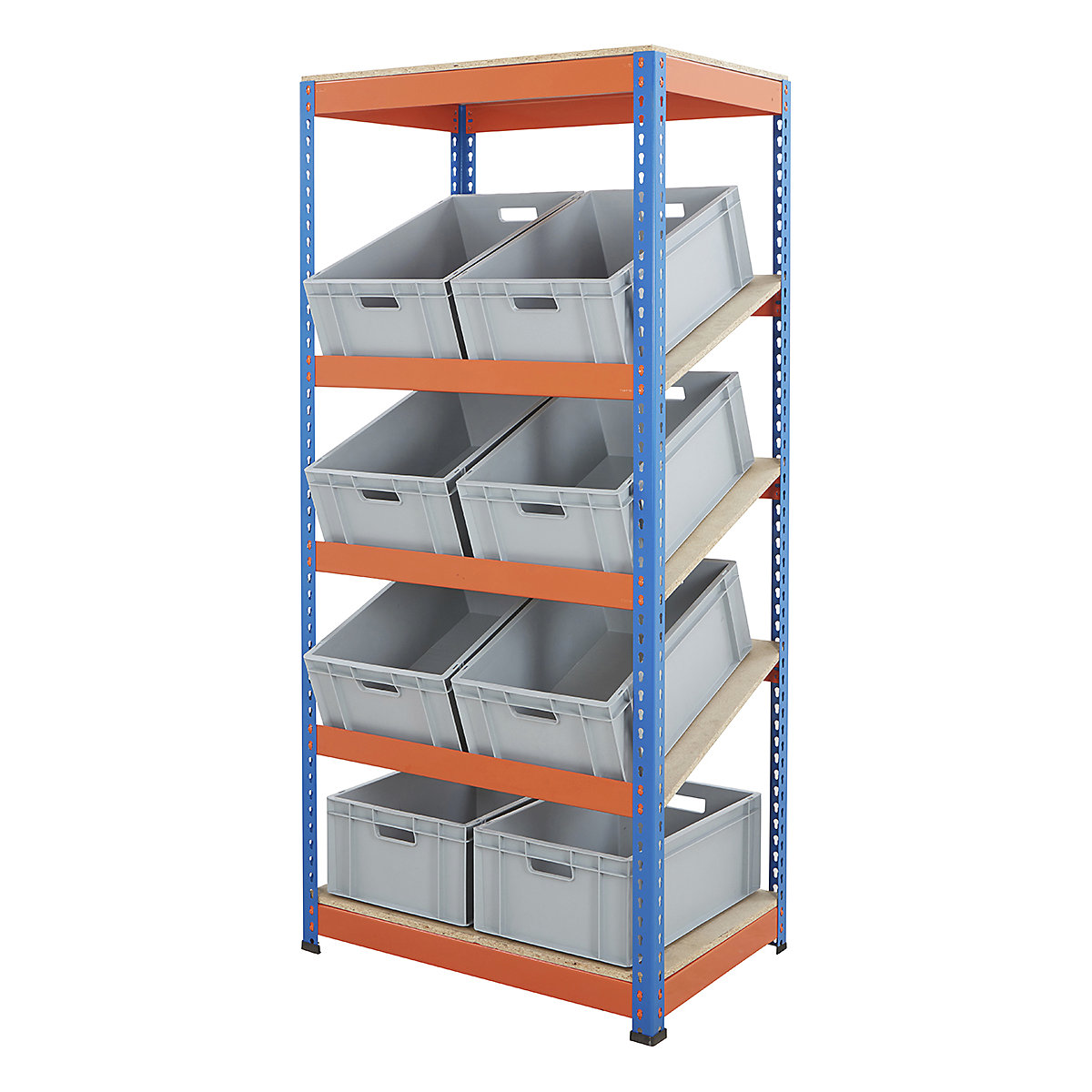

B4KB58G 5 3 Grey Euro Containers (BNB4622G) 8

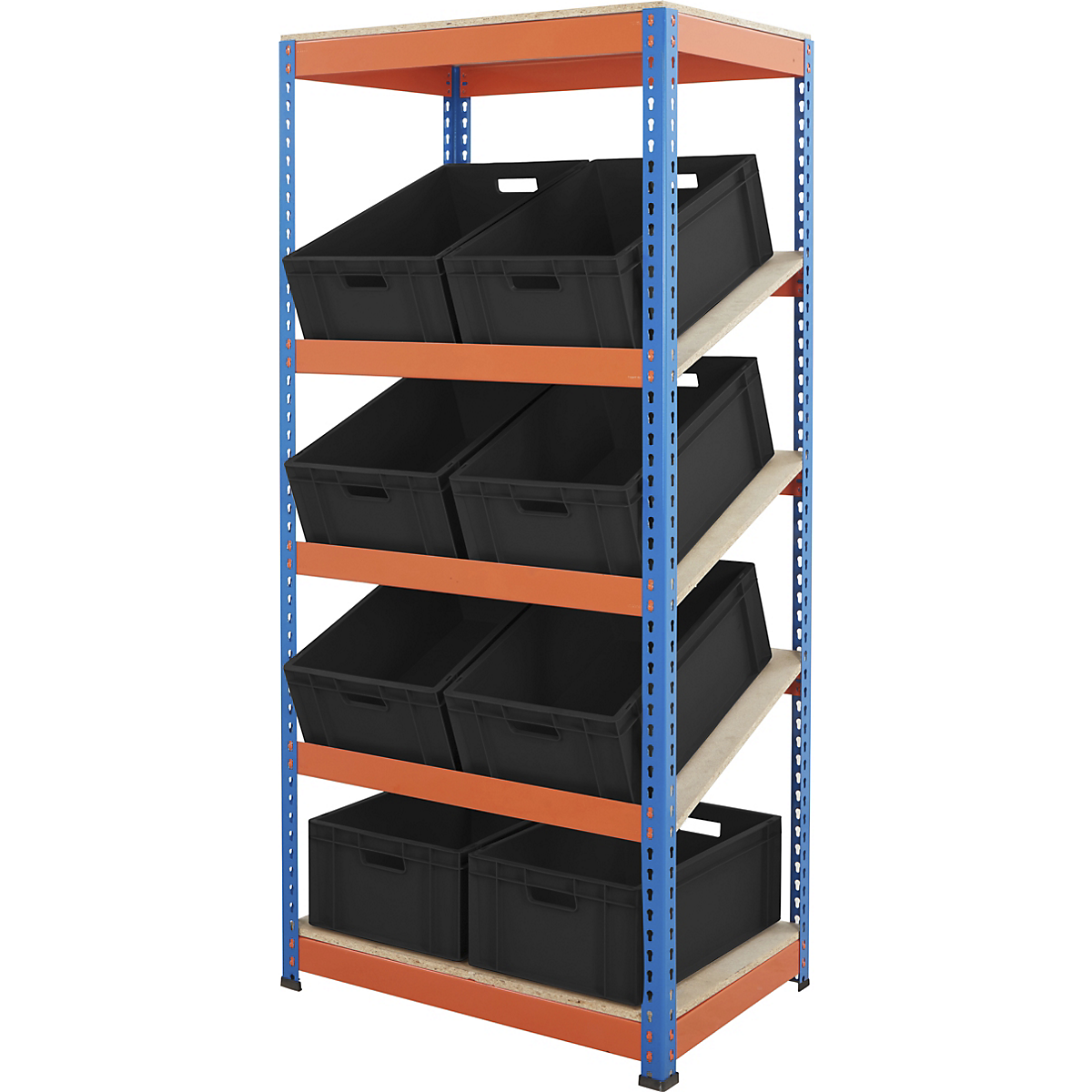

B4KB58GR 5 3 Black Recycled Euro Containers (BDEC2346BK) 8

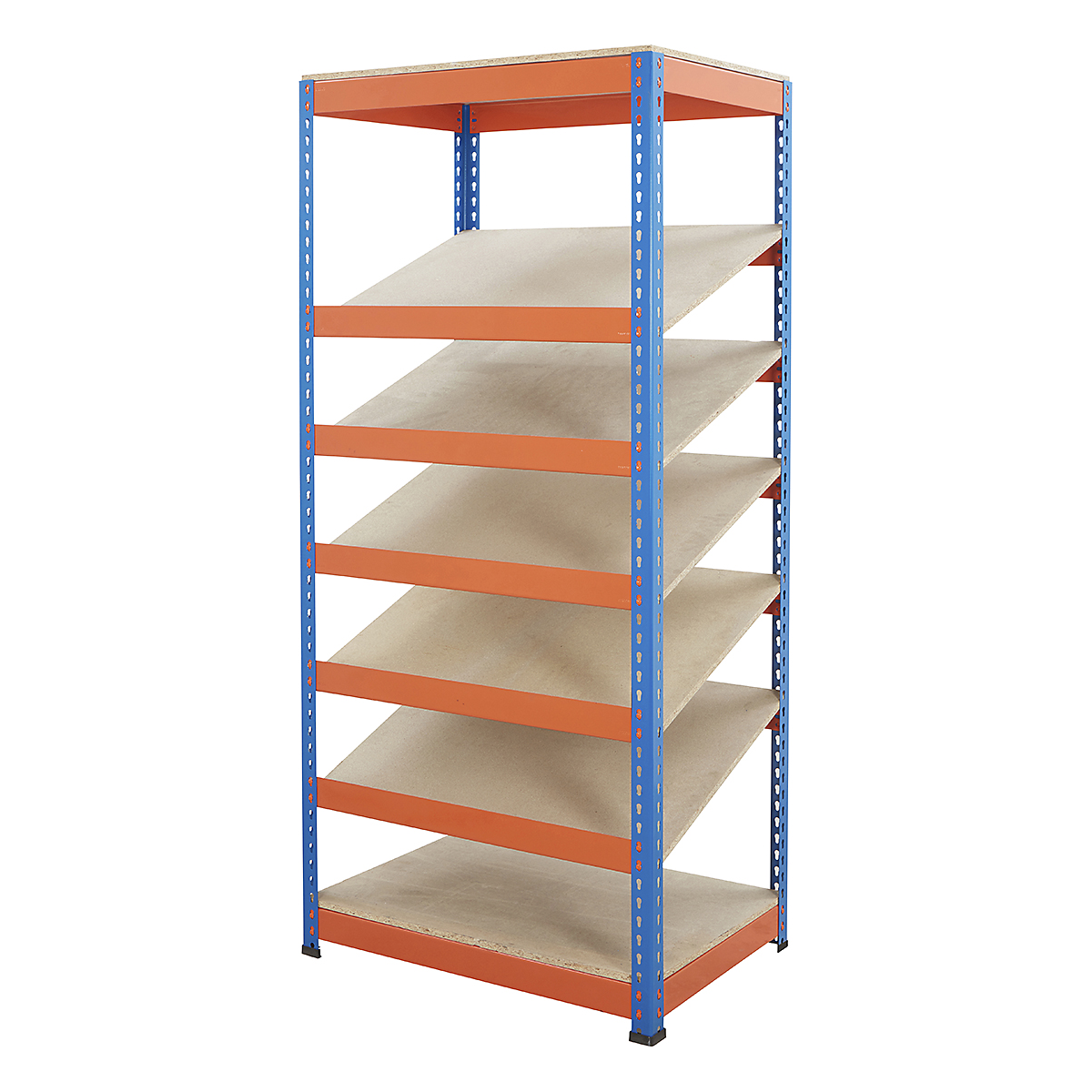

B4KB7 7 5 Unit Only N/A

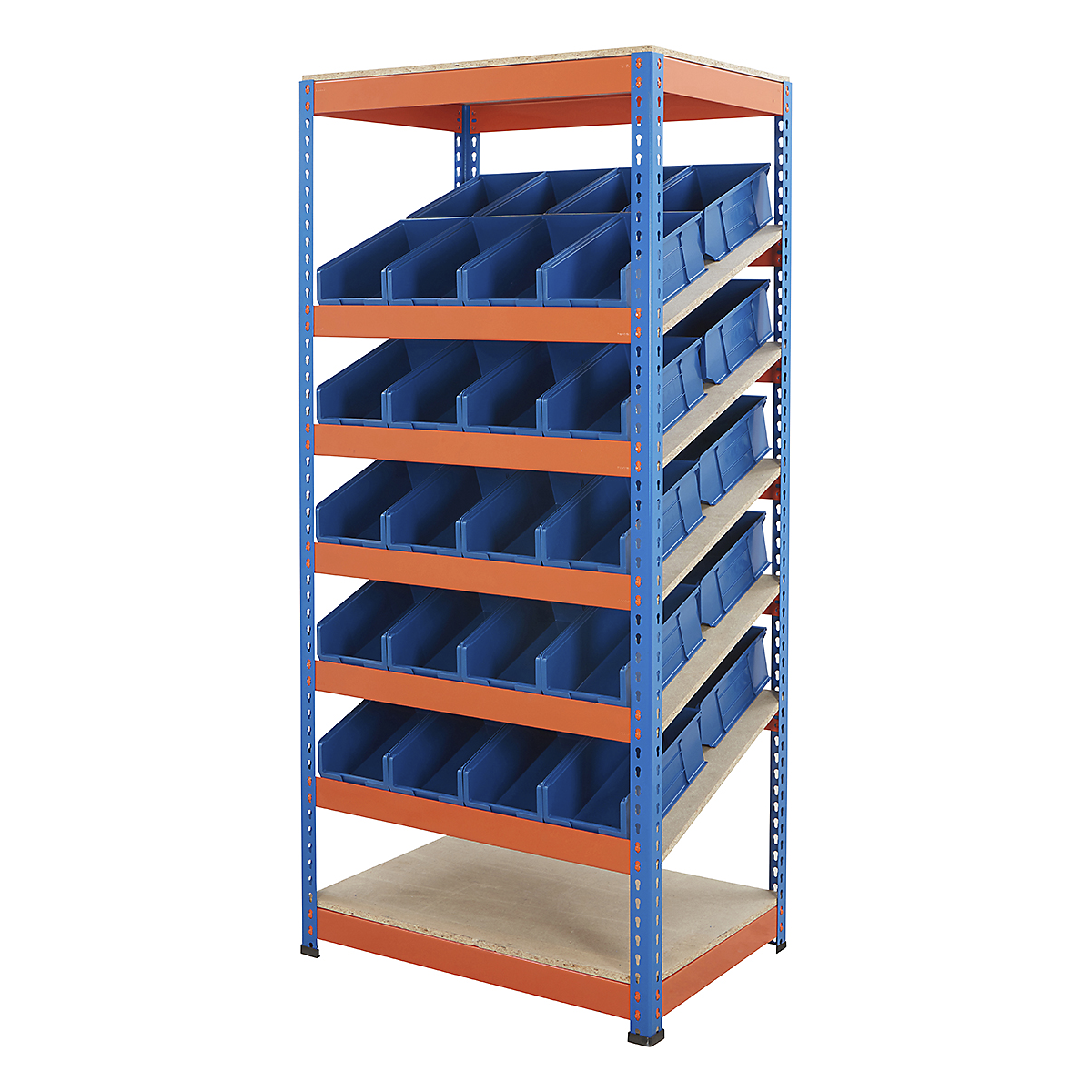

B4KB58G 7 5 Blue Plastic Parts Bins (GKXL4P10B) 40
B4KB58G 7 5 Blue Plastic Parts Bins (GKXL4P10G) 40

Container Specifications

Product Code Materials External Dimensions Internal Dimensions Volume
GKXL4P10B/G 100% Recycled Polypropylene 125h x 200w x 355d mm 123h x 175w x 330d mm N/A
BNB4322 Food Grade Virgin Polypropylene 230h x 300w x 400d mm 216h x 255w x 355d mm 20 Litre
BDEC2334BK 100% Recycled Mixed Material 230h x 300w x 400d mm 225h x 263w x 365d mm 20 Litre
BNB4622B/G Food Grade Virgin Polypropylene 230h x 400w x 600d mm 208h x 357w x 555d mm 42 Litre
BDEC2346BK 100% Recycled Mixed Material 230h x 400w x 600d mm 218h x 365w x 565d mm 46 Litre

Kanban Shelving Specifications

Specifications
Dimensions 1980h x 915w x 610d mm
Upright Type One Piece
Beam Steel Thickness 1.5 mm
Shelf Adjustment Increments 38.1 mm
Chipboard Thickness 15 mm
Total Bay Capacity 560kg
Clear Width 830 mm
Initial Bay External 927 mm
Second Bay External 934 mm
‌
‌
‌
‌
‌
‌
