Code: B4T191504BO

BiG400 Heavy-Duty Tyre Racking, 3 Levels, 1980h x 1525w x 455d mm 200kg UDL, Blue & Orange

(4)

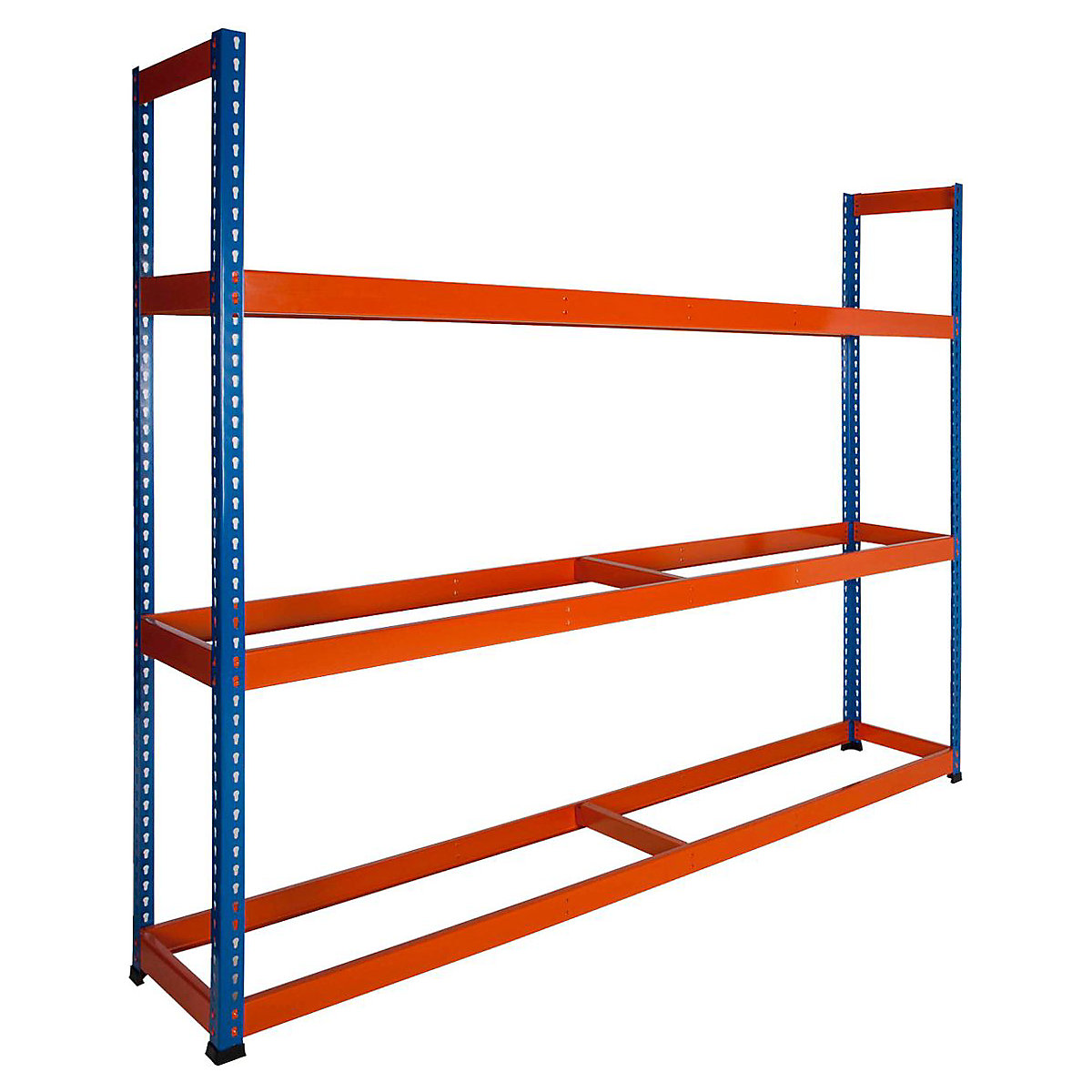

BiG400 Heavy-Duty Tyre Racking
Width [mm]
Delivery time: 2-3 Working Days
Order until 15:00 for next day delivery
Product description

Store your tyres away efficiently using our Heavy-Duty Tyre Racking; designed to create adaptable & reliable tyre storage for use within automotive industries.

  • Store up to 200kg per level UDL*
  • 3x fully-adjustable tyre-storage levels
  • Premium, powder-coated European Steel
  • Choose from 4 widths to suit your needs & space
  • View our range of recommended racking accessories below

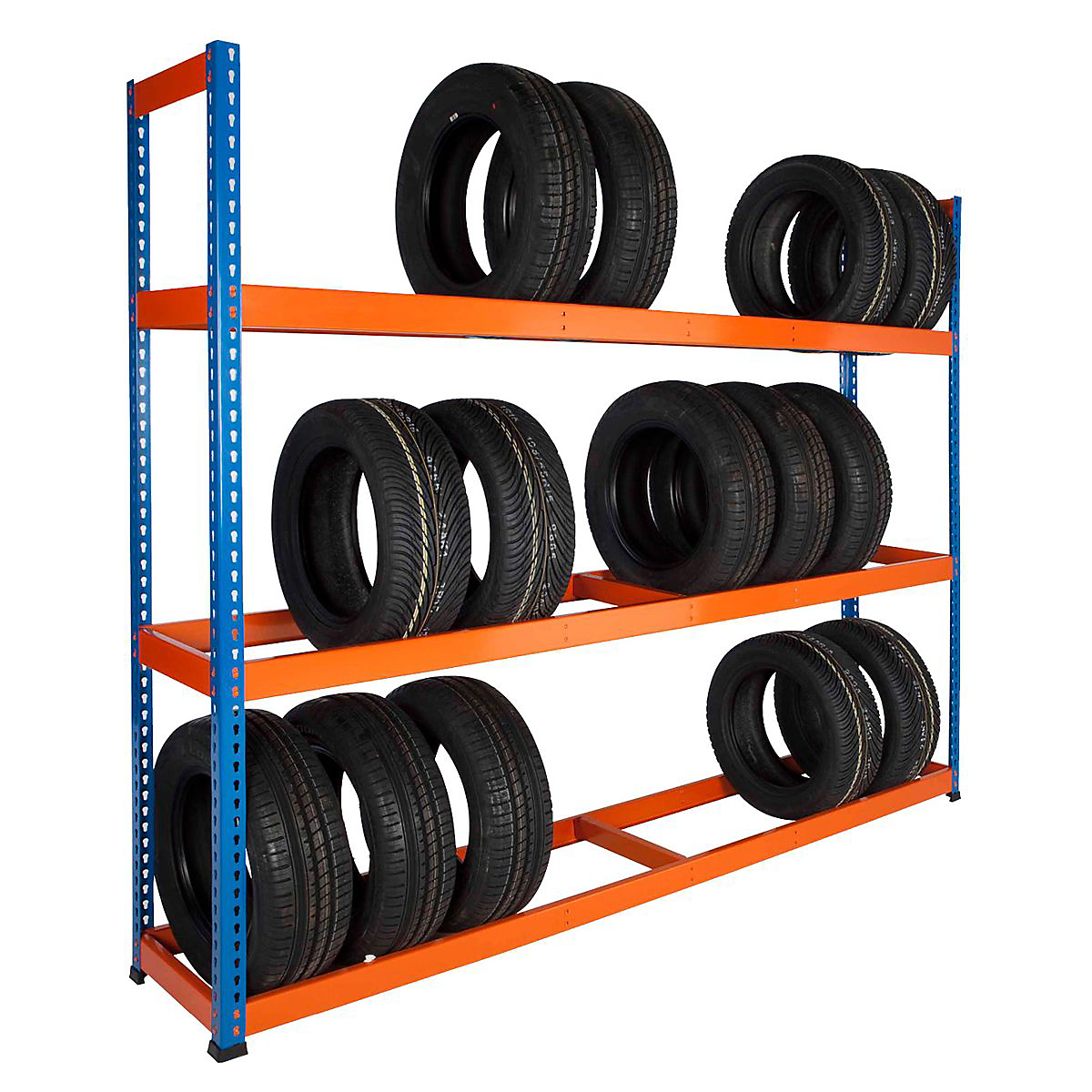

  • Designed for the safe storage of tyres within automotive industries

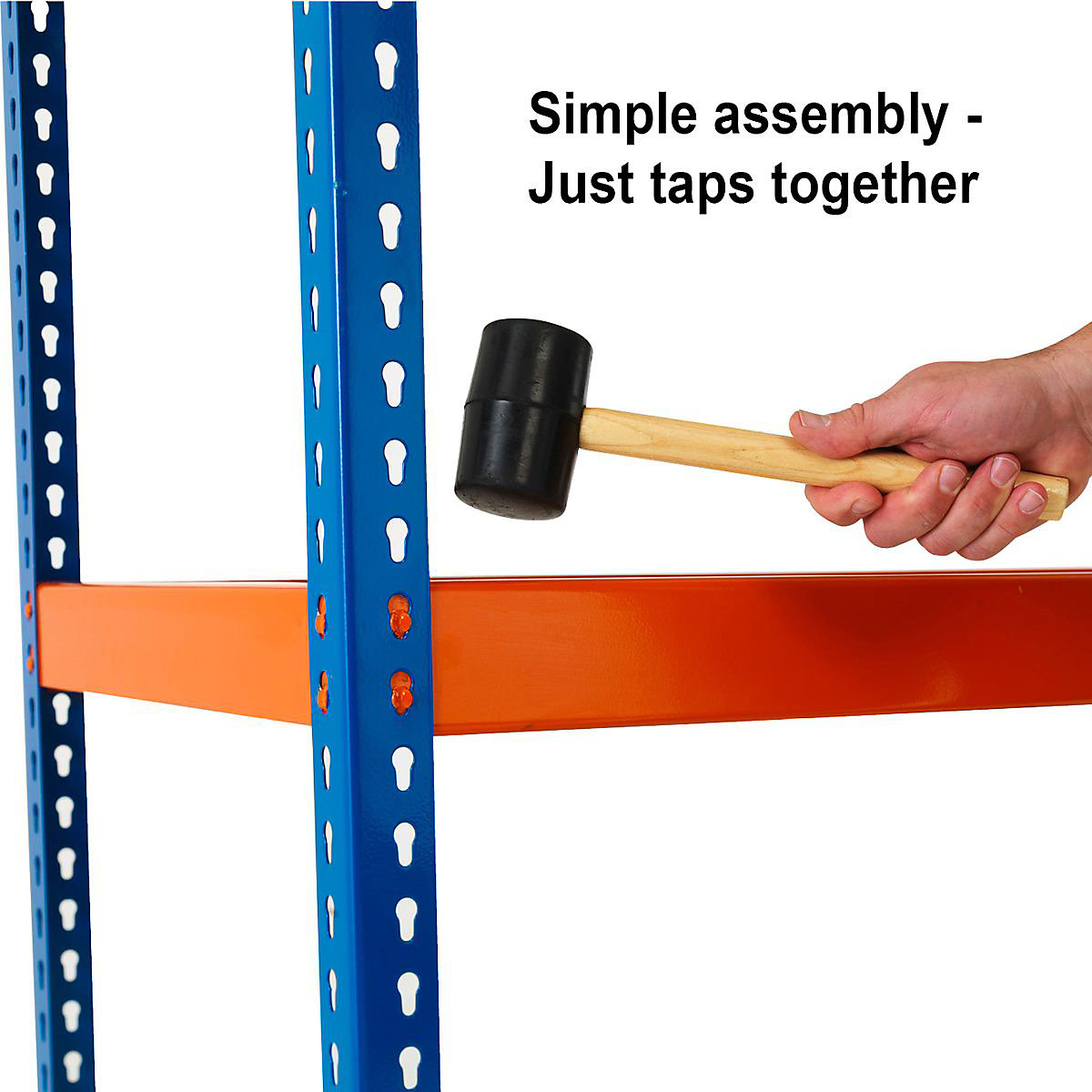

  • Simple boltless assembly - just tap together with a rubber assembly mallet
  • Load up to 200kg per level UDL*
  • 3x fully-adjustable tyre-storage levels
  • Complete with 3x steel central support beams for extra support
  • Profiled, premium-grade European Steel
  • Powder-coated steel in a blue and high visibility orange finish
  • Available in a choice of 4 widths to suit your needs and space
  • Levels adjust in height every 38mm (1.5 inches)
  • Available from stock, eligible for our UK Next day delivery service

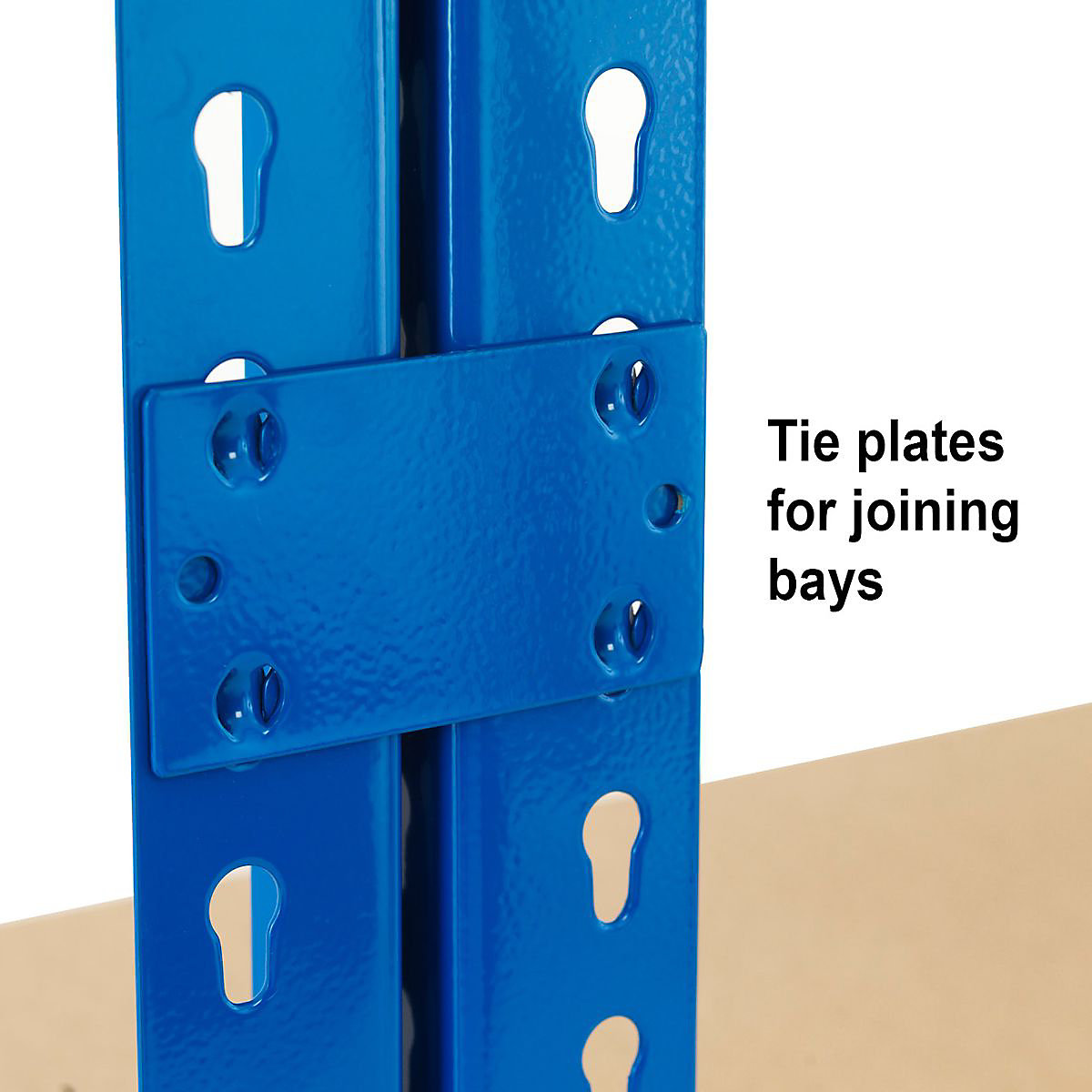

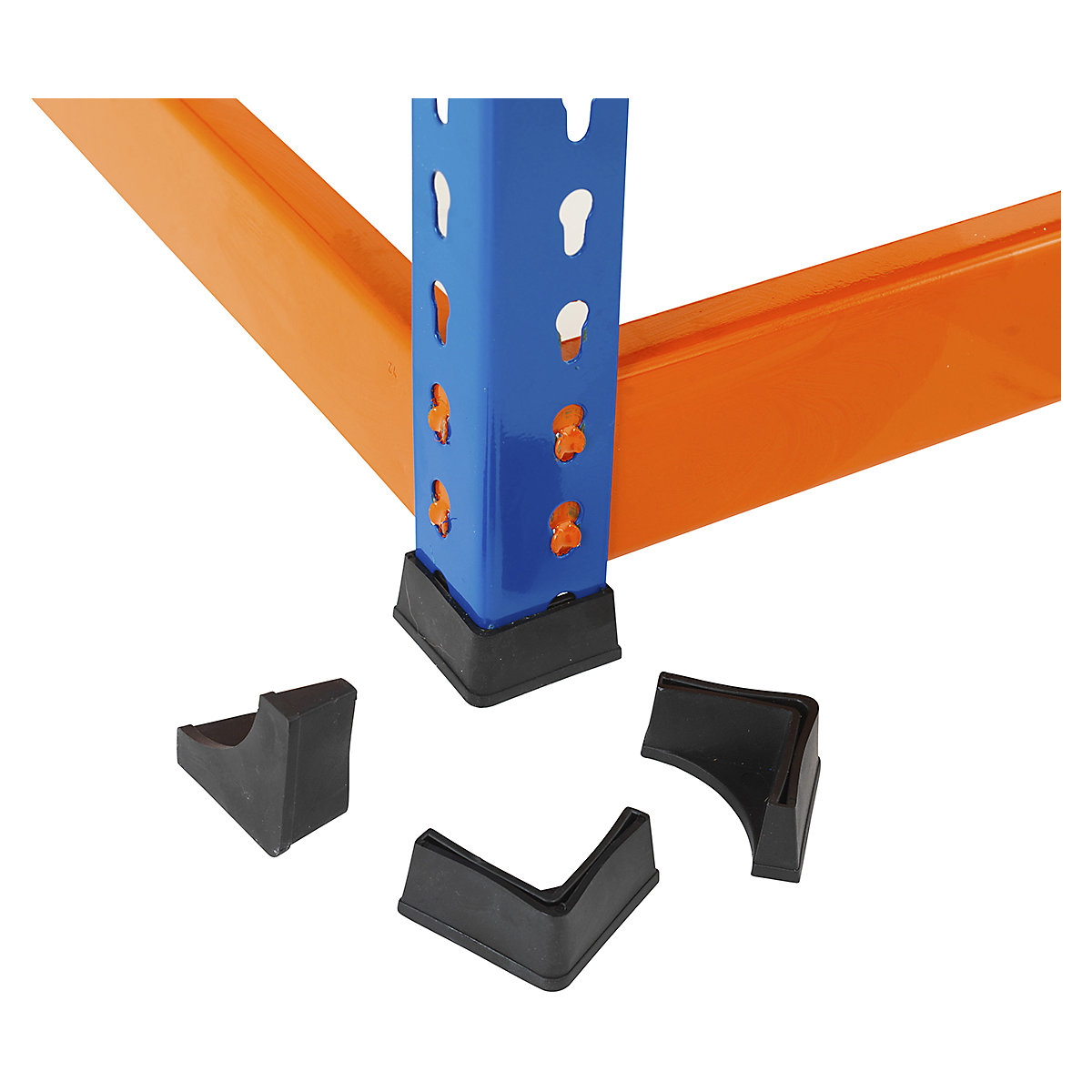

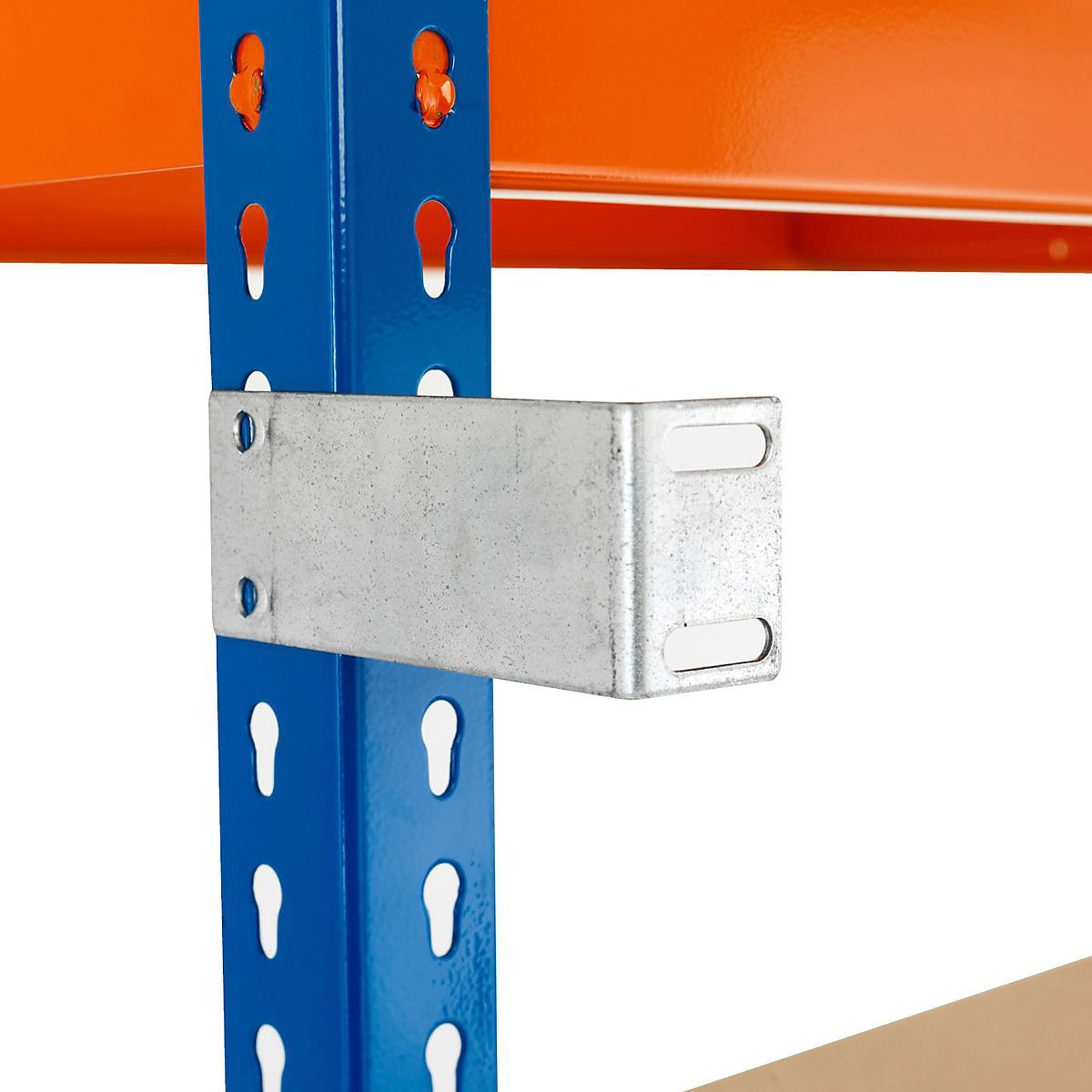

  • Recommended accessories such as Metal feet, Tie plates, Wall brackets & floor fixings available separately

Please note: Our BiG400 tyre racking is suitable for light-commercial use storing up to 200kg per level. For more intensive use & greater load capacities, we recommend our industrial-grade Longspan Tyre Racking

* UDL = Uniformly Distributed Load.

Racking Specifications

Shelving Bay Width 1525mm 1830mm 2134mm 2440mm
Clear Width 1440mm 1745mm 2049mm 2355mm
Tyre Widths Approx. Tyres per Level
165mm 8 10 12 14
185mm 7 9 10 12
195mm 7 8 10 11
205mm 6 8 9 11
225mm 6 7 9 10
‌
‌
‌
‌
‌
‌
