Code: B4AS25BO

BiG400 Archive storage Bay With 25 Boxes 1937h x 1830w x 455d mm 400kg UDL Blue & Orange

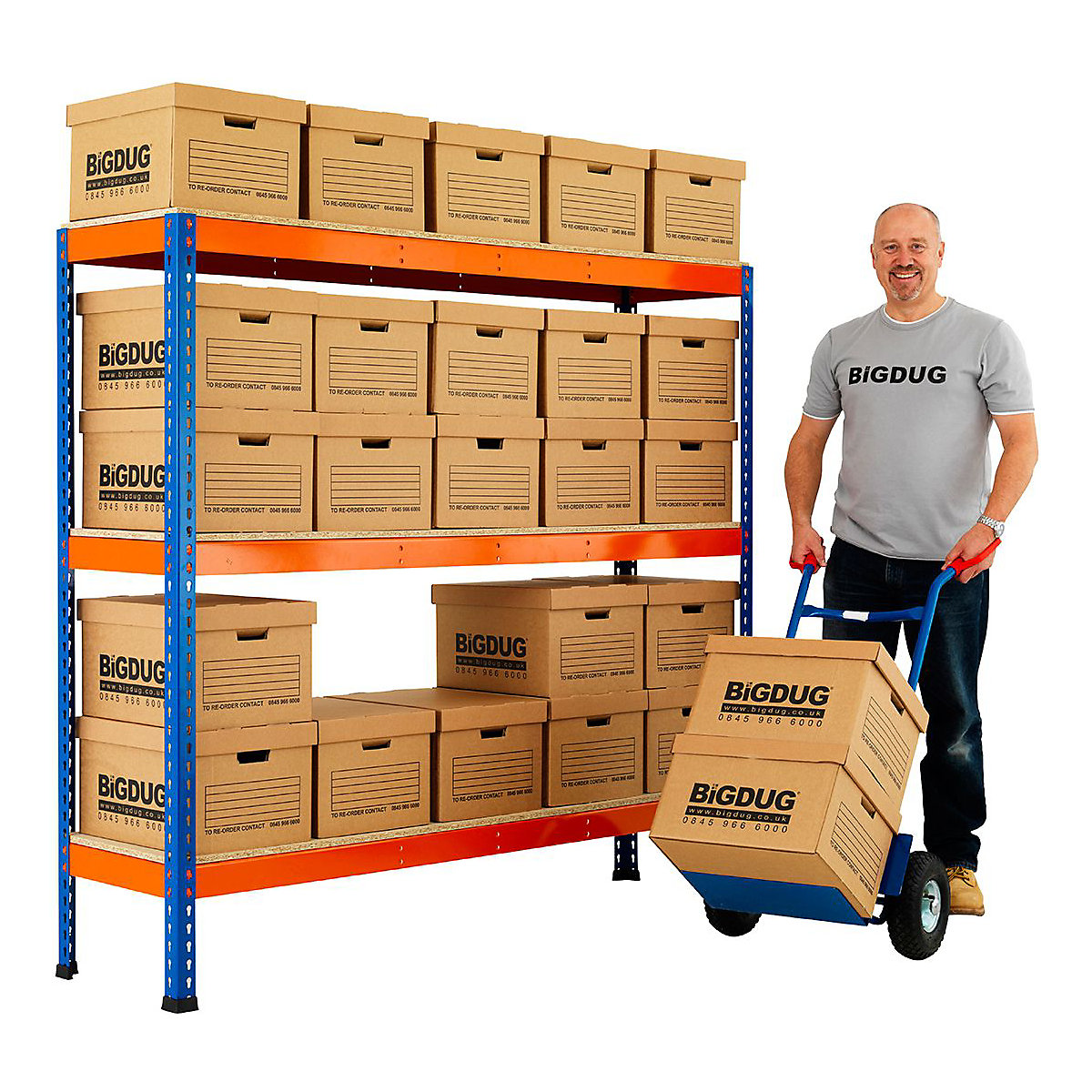

BiG400 Archive Storage Racking With Standard Boxes
Type
£345.00
£325.00
Price / pack (Excl. VAT)
Free delivery on orders over £1000 ex VAT / £1200 inc VAT
Delivery time: 2-3 Working Days
Order until 15:00 for next day delivery
Product description

Industrial-grade Racking purpose designed for heavy load storage and therefore an ideal system for longer term archiving.

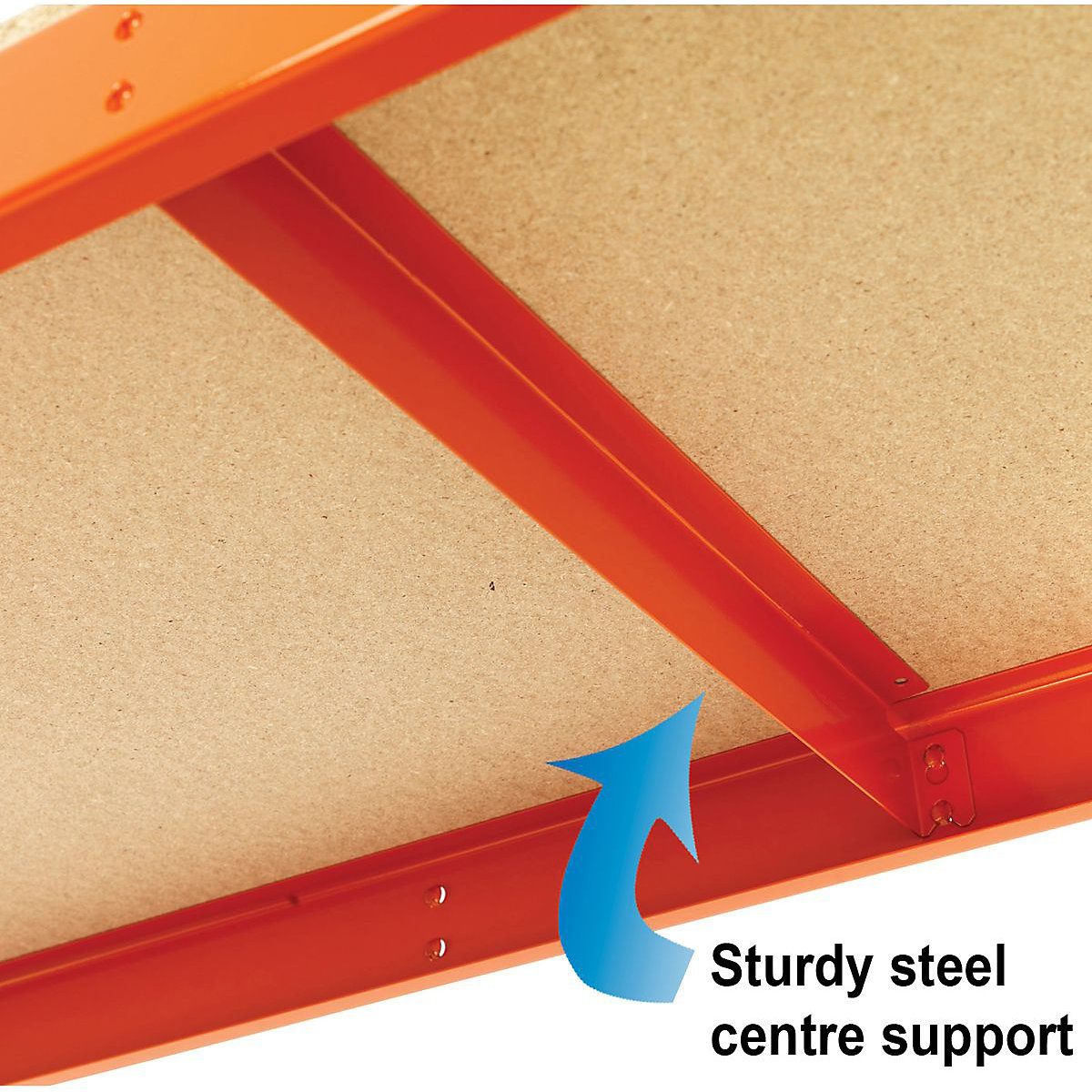

With a load capacity of 400kg UDL*, the BiG400 features strong C-section beams and high-density chipboard shelves with steel central supports.

The racking kit is supplied with our branded Document Boxes. These twin-walled document boxes can hold up to 5x A4 Lever Arch Files and fit neatly and securely into the storage bay.

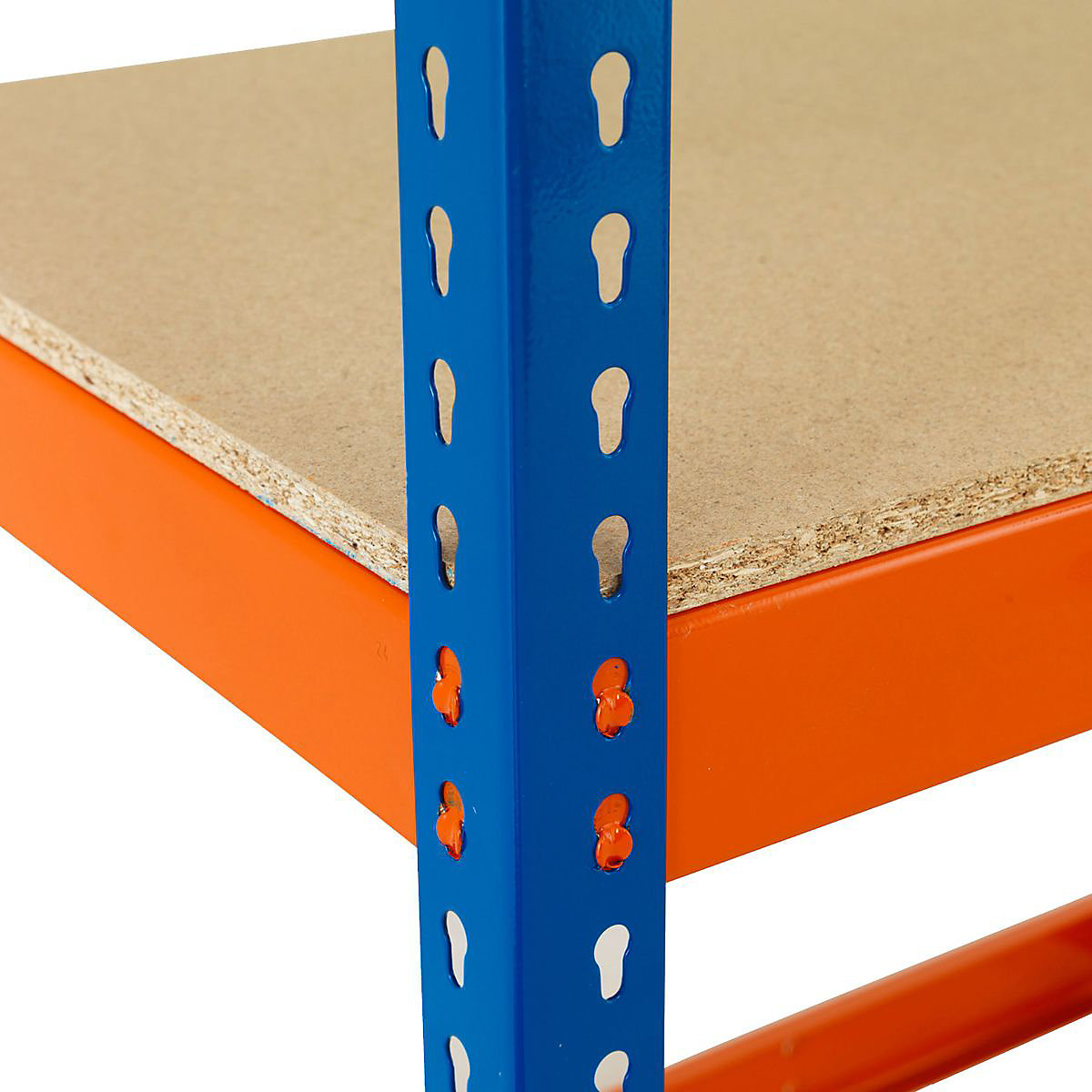

  • Profiled, premium-grade European steel with 3 high-density chipboard shelves**
  • Supplied with twin-walled, cardboard document boxes
  • Document Box dimensions: 265h x 338w x 445d
  • Each box can hold 5 x A4 Lever Arch Files and has a 20kg capacity

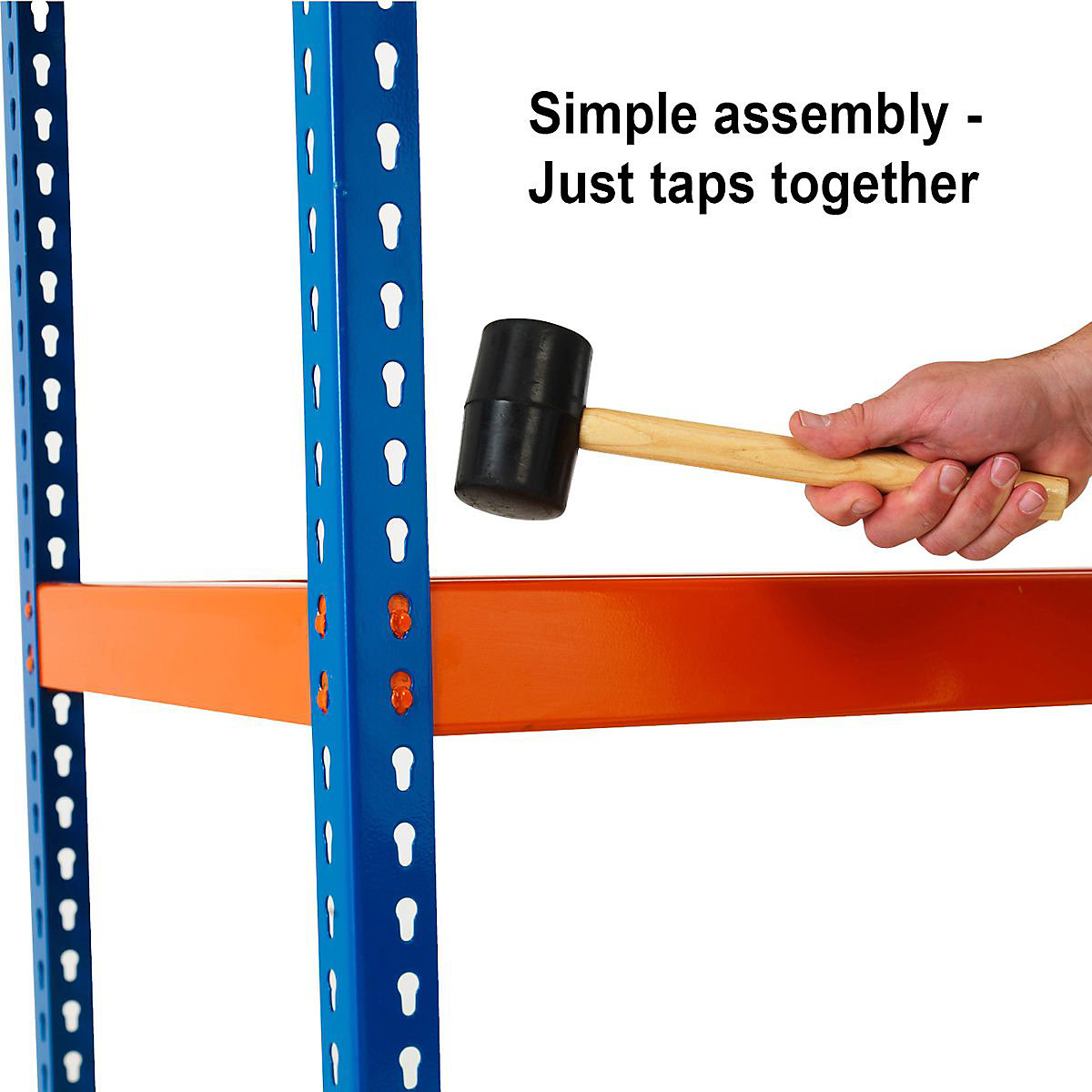

  • Boltless easy assembly of racking - just tap together in minutes with a rubber mallet
  • Each shelf carries up to 400kg UDL*
  • Powder coated in Blue and high visibility Orange
  • Flush-fitting decks and compatible document boxes ensure neat, uncluttered finish
  • Shelves adjust on a 38mm pitch (1.5 inches)

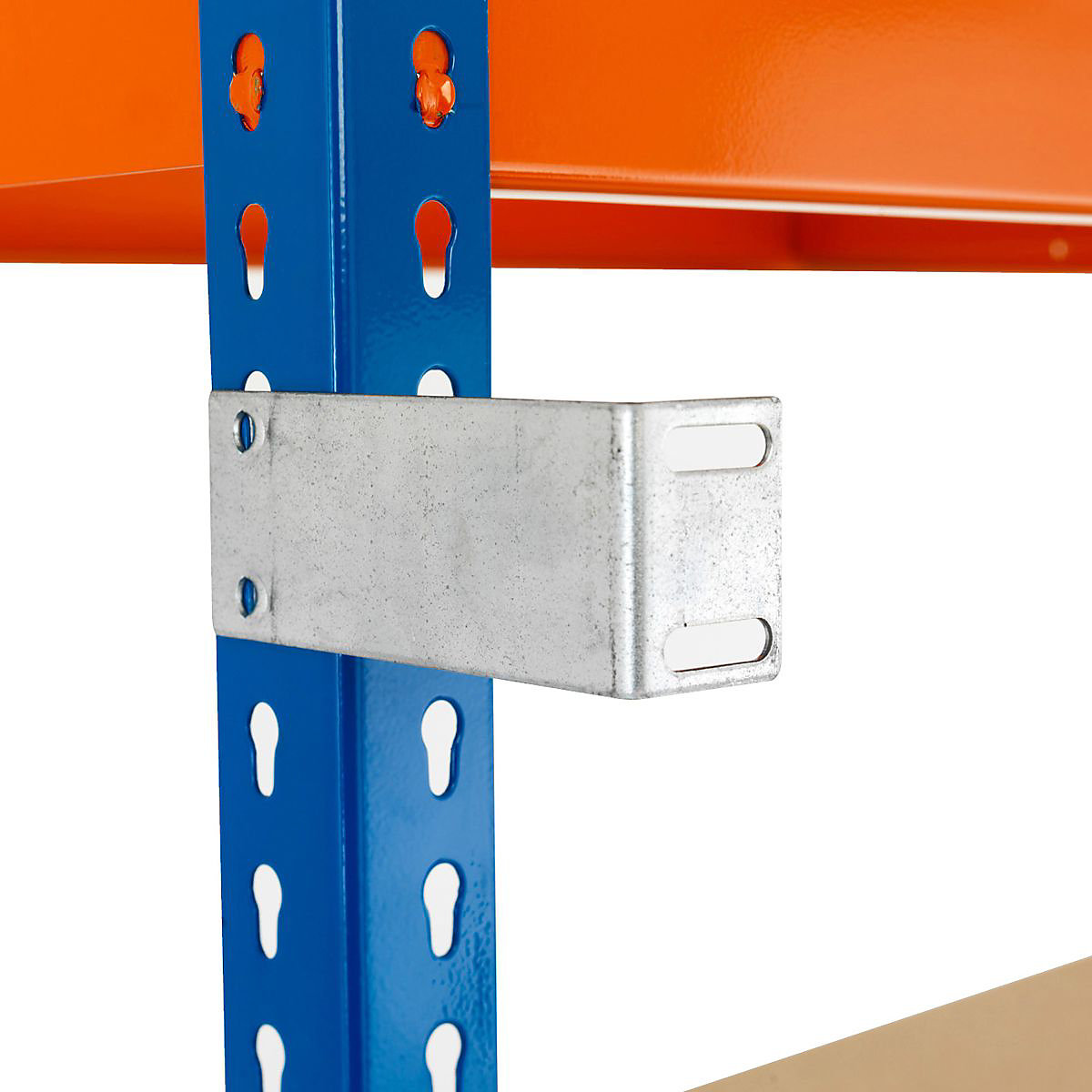

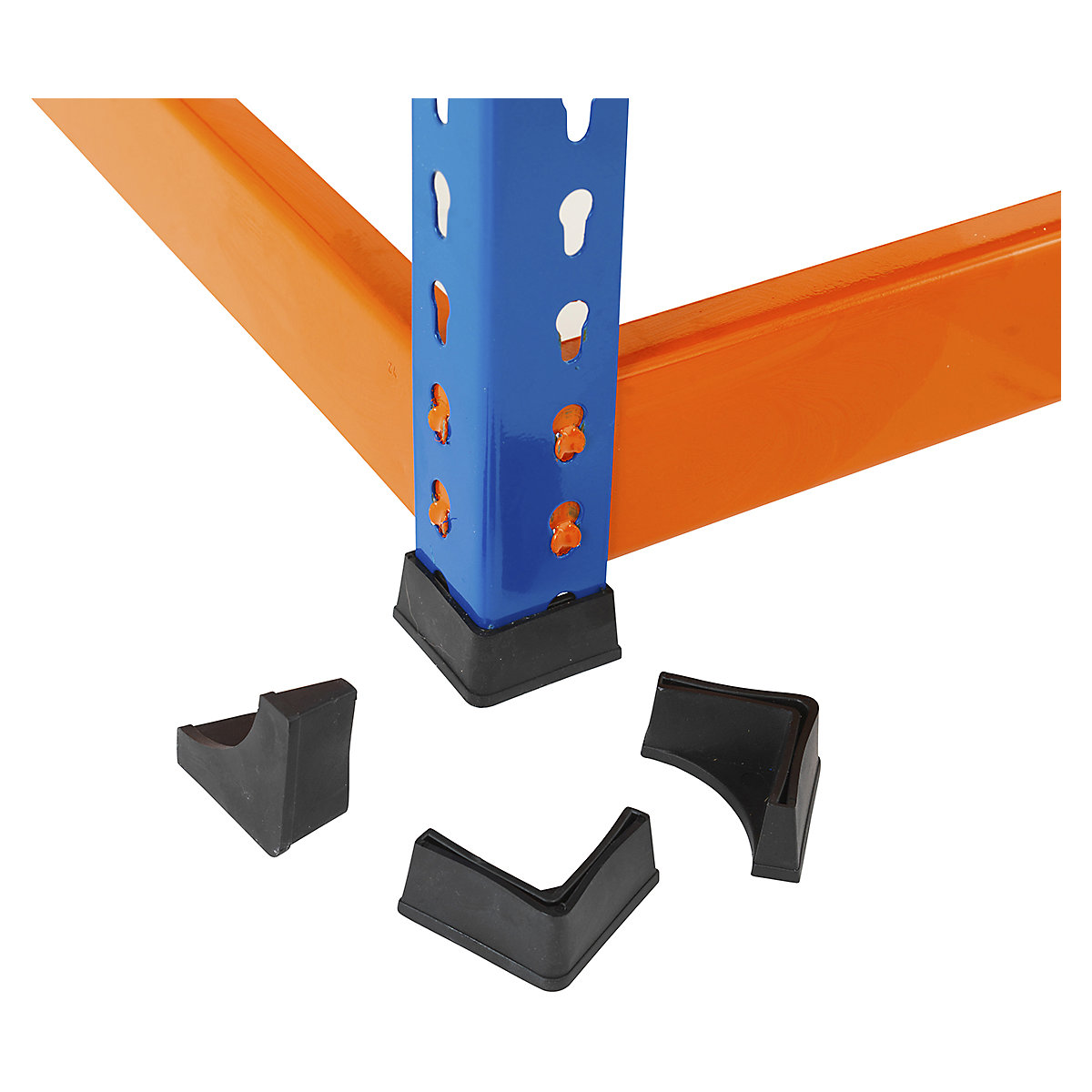

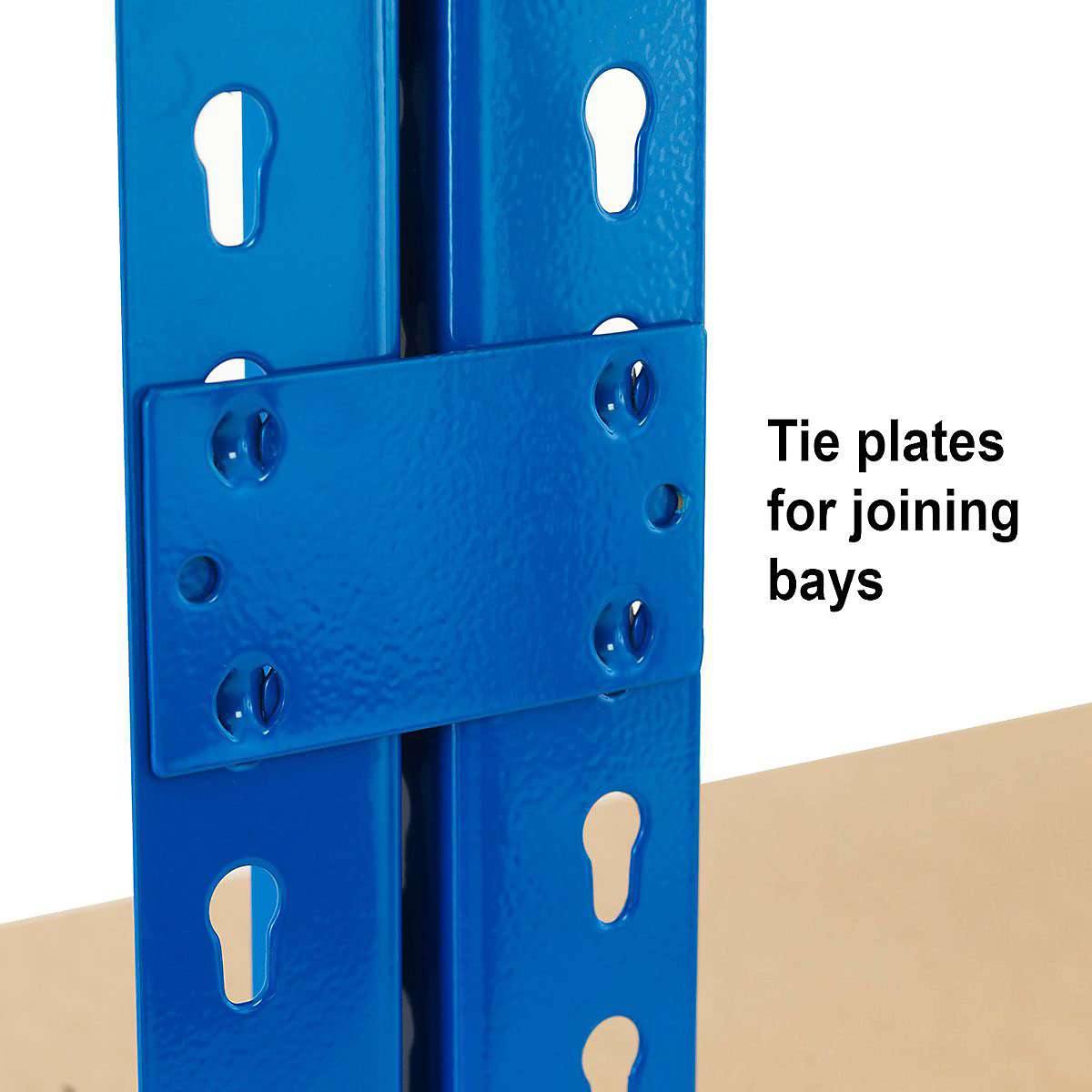

  • Additional document boxes, shelves, tie plates, wall brackets and metal feet are all available separately
  • Available from stock and eligible for our Next Day Delivery service

* UDL= Uniformly Distributed Load. Please note that actual capacity varies according to shelf size.

Shelving Specifications

Data Field 1220mm Width 1525mm Width 1830mm Width 2135mm Width 2440mm Width
Upright Type One Piece One Piece One Piece One Piece One Piece
Upright Steel Thickness 1.5mm 1.5mm 1.5mm 1.5mm 1.5mm
Beam Steel Thickness 1.5mm 1.5mm 1.5mm 1.5mm 1.5mm
Shelf Adjustment Increments 38.1mm 38.1mm 38.1mm 38.1mm 38.1mm
Shelf Thickness 94mm 94mm 94mm 94mm 94mm
Chipboard Thickness 15mm 15mm 15mm 15mm 15mm
MDF Thickness n/a n/a n/a n/a n/a
Melamine Thickness 15mm 15mm 15mm 15mm 15mm
Steel Panel Thickness 0.8mm 0.8mm 0.8mm 0.8mm 0.8mm
Total Bay Capacity 1677h mm 1600kg 1600kg 1600kg 1600kg 1600kg
Total Bay Capacity 1980h mm 1600kg 1600kg 1600kg 1600kg 1600kg
Total Bay Capacity 2440h mm 1320kg 1320kg 1320kg 1320kg 1320kg
Clear Width 1135mm 1440mm 1745mm 2050mm 2355mm
Extra Levels Available Y Y Y Y Y

** Bay heights of 2629mm are supplied with 4 shelves

‌
‌
‌
‌
‌
