Code: B3TR09BO

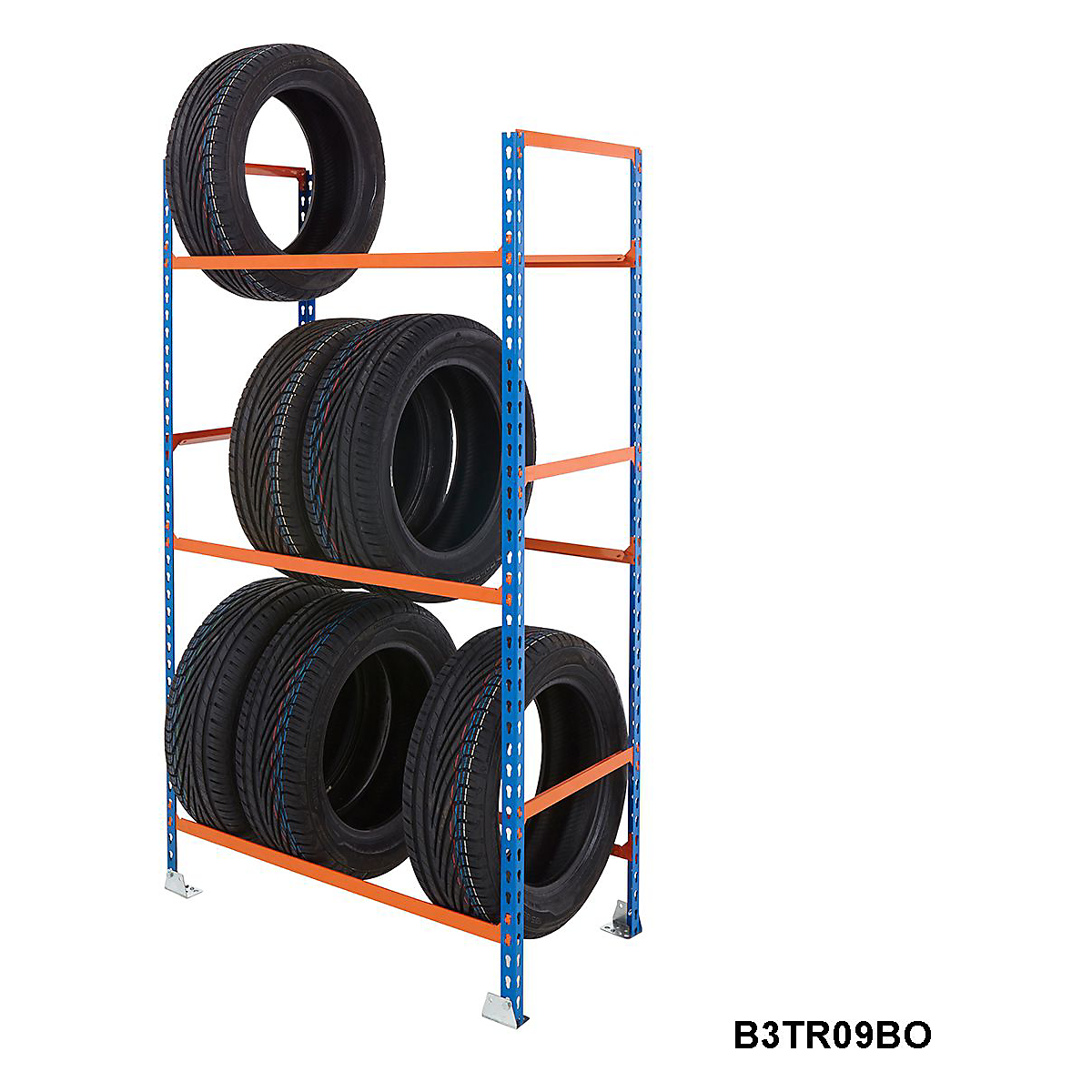

BiG340 Tyre Racking, 3 Levels, 1600h x 915w x 455d mm, 100kg UDL, Blue & Orange

(4)
BiG340 Tyre Racking
BiG340 Tyre Racking, BiG340 Tyre Racking, BiG340 Tyre Racking, 3 Levels, 1600h x 915w x 455d mm, 100kg UDL, Blue & Orange-0
BiG340 Tyre Racking (Product illustration 2)-1
BiG340 Tyre Racking (Product illustration 3)-2
BiG340 Tyre Racking (Product illustration 4)-3
BiG340 Tyre Racking (Product illustration 5)-4
Delivery time: 2-3 Working Days
Order until 15:00 for next day delivery
Product description

Achieve neat, compact tyre storage for occasional & temporary use. Ideal for automotive industries storing winter tyre sets or moving tyres to & from vehicles.

  • Hold up to 4 standard car tyres per level
  • Load capacity: 100kg UDL*
  • 3x height-adjustable tyre storage levels
  • Durable powder-coated steel frame
  • Option of static or mobile tyre racking
  • Use with BiG340 Shelving for a complete automotive solution
  • Simple boltless design - no tools just a rubber mallet needed
  • 3x fully-adjustable tyre storage levels - adjust in height every 38mm
  • Hold up to 4 standard tyres or 100kg UDL* per level

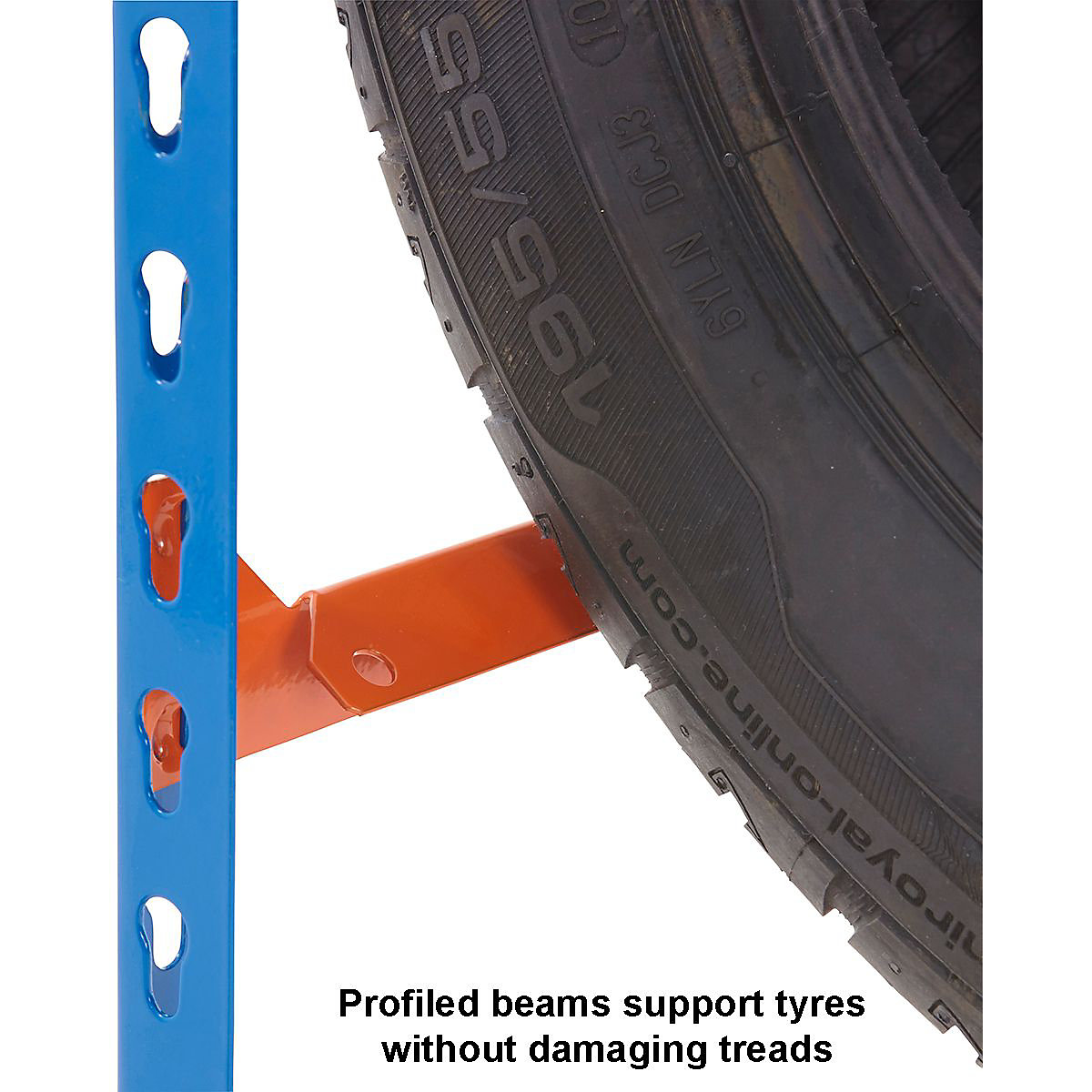

  • Angled beams support tyres without damaging tread
  • Durable powder-coated steel frame
  • Beams simply tap & slot into uprights using a rubber assembly mallet

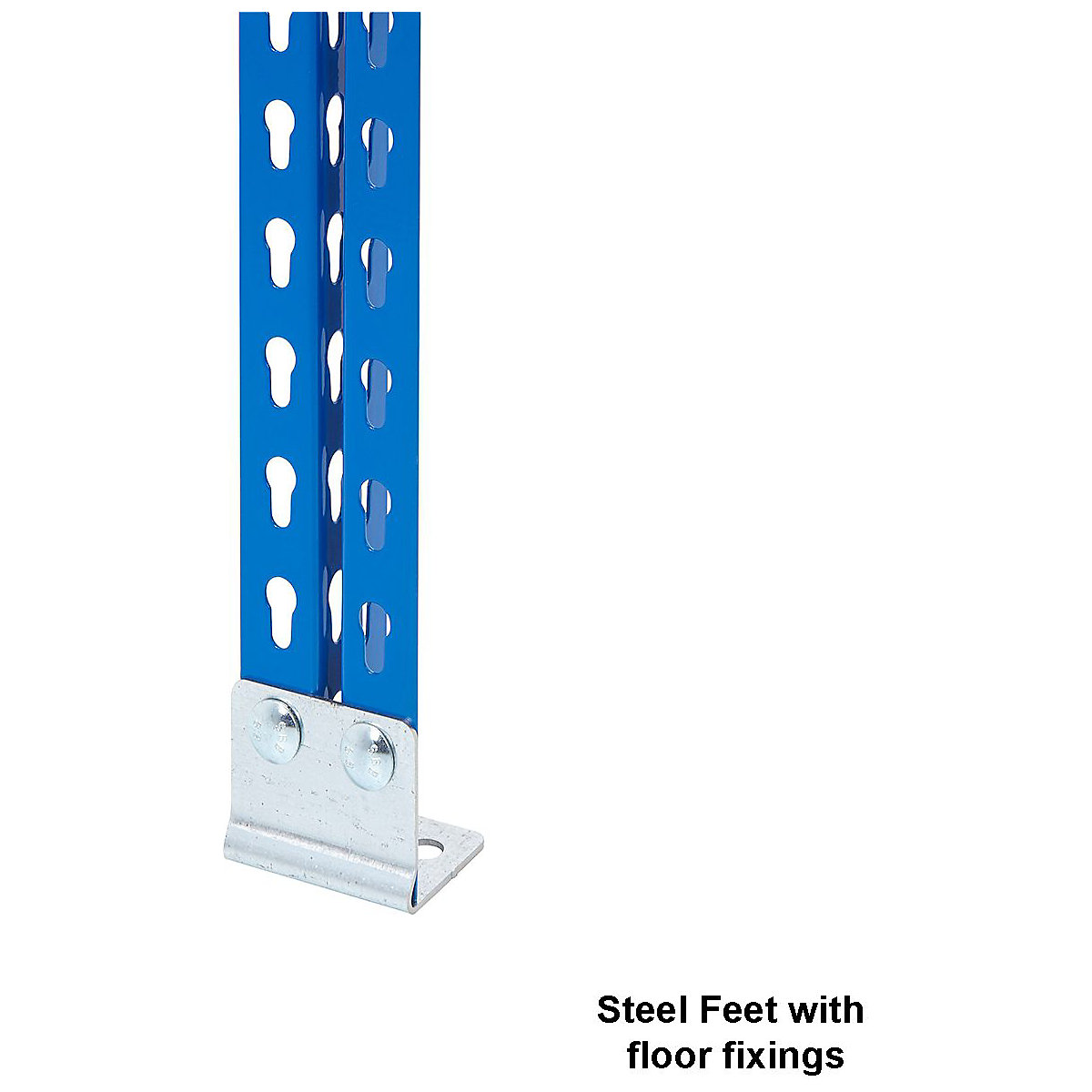

  • Supplied with 4x steel feet & floor fixings
  • Can be adapted with our BiG340 Shelving to build a complete automotive storage solution

*UDL = Uniformly Distributed Load

Racking Specifications

Shelving Bay Width 915mm
Clear Width 851mm
Tyre Widths Approx. Tyres per Level
165mm 5
185mm 4
195mm 4
205mm 3
225mm 6

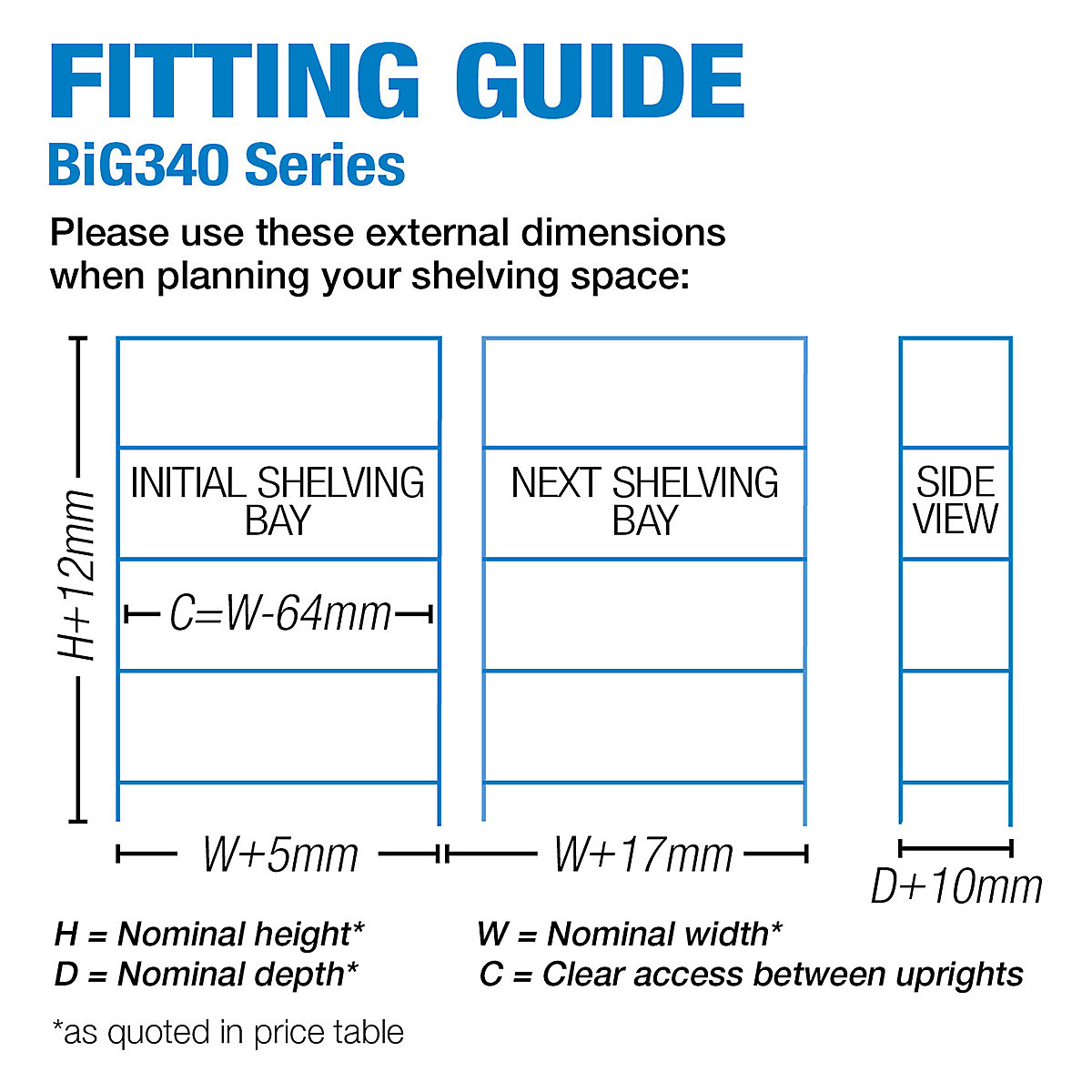

Fitting Guide

Please check our guides for each range when planning your shelving space.

Nominal Shelf Width mm: Clear Entry mm: Initial Bay External mm: Next Bay External mm:
915 851 925 932

    External Height = H+12     External Depth = D+10

    Pitch = 38.1

    Clear height between shelves = (No. x pitch) -30

    All dimensions in Millimetres

‌
‌
‌
‌
‌
‌
