Code: AH41A1Z

Automatic Pallet Positioner Lift Capacity 1800kg Lift Height 267-775mm

Automatic Pallet Positioner
Delivery time: 2-3 Working Days
Product description

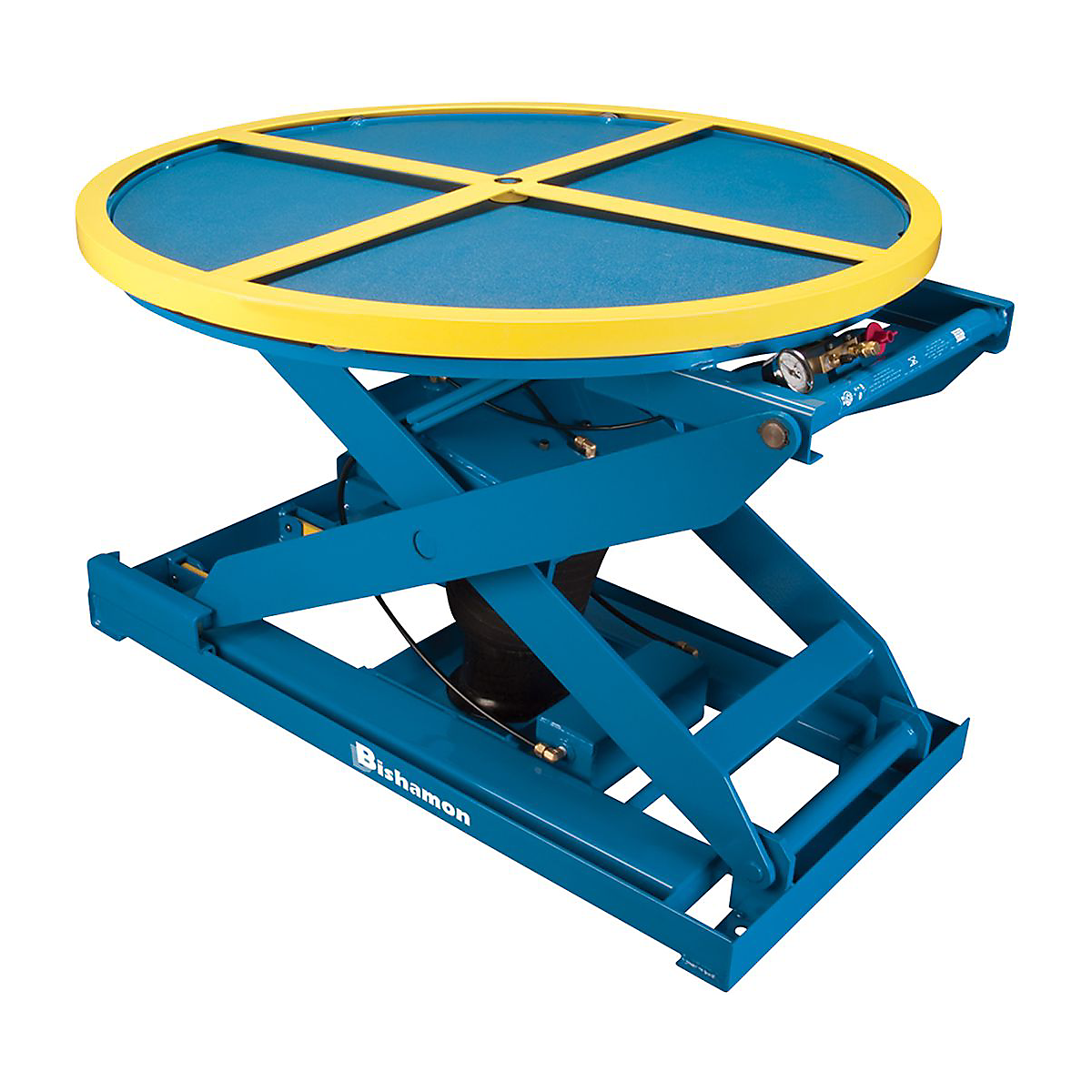

Automatic Pallet Positioner

Minimises operator strain through raising and lowering the pallets during loading and unloading. Fully-rotational load platform also eliminates the need to reach or stretch.

  • Self-levelling pallet lifter keeps the platform at a pre-set working height
  • Load capacity: 1800kg
  • Lift height: 267-755mm
  • Welded steel frame with phosphated and powder-coated finish
  • Pneumatic operating system with either air line or foot pump control
  • Rotator ring - with ball-bearing centre pivot - allows operator to load/unload in fixed position, i.e. at end of assembly line or conveyor system
  • Captive air operation for more controlled (dampened) movement of platform
  • Multi-adjustment positioning - simply add or bleed air
  • Pressure relief valve
    • Finger guards under rotator ring
  • Accessible, but impact-protected, gauges and valves
  • Free standing
  • Reposition or transport unit with forklift truck
  • Rotator ring diameter: 1092mm
  • Dimensions: 1245l x 1092w mm

Please note: this product is made to order and therefore cannot be cancelled once ordered. As these items are made specifically to your request, they are also excluded from our returns policy unless damaged or faulty. Please contact our friendly sales team should you need further help or advice before ordering: 0333 200 5299.

‌
‌
‌
‌
‌
