Code: KKABP1

Aluminium Bridge Plates 1250w x 750d mm 600kg Capacity

Aluminium Bridge Plates
Size
Capacity
Delivery time: 4-7 Working Days
Product description

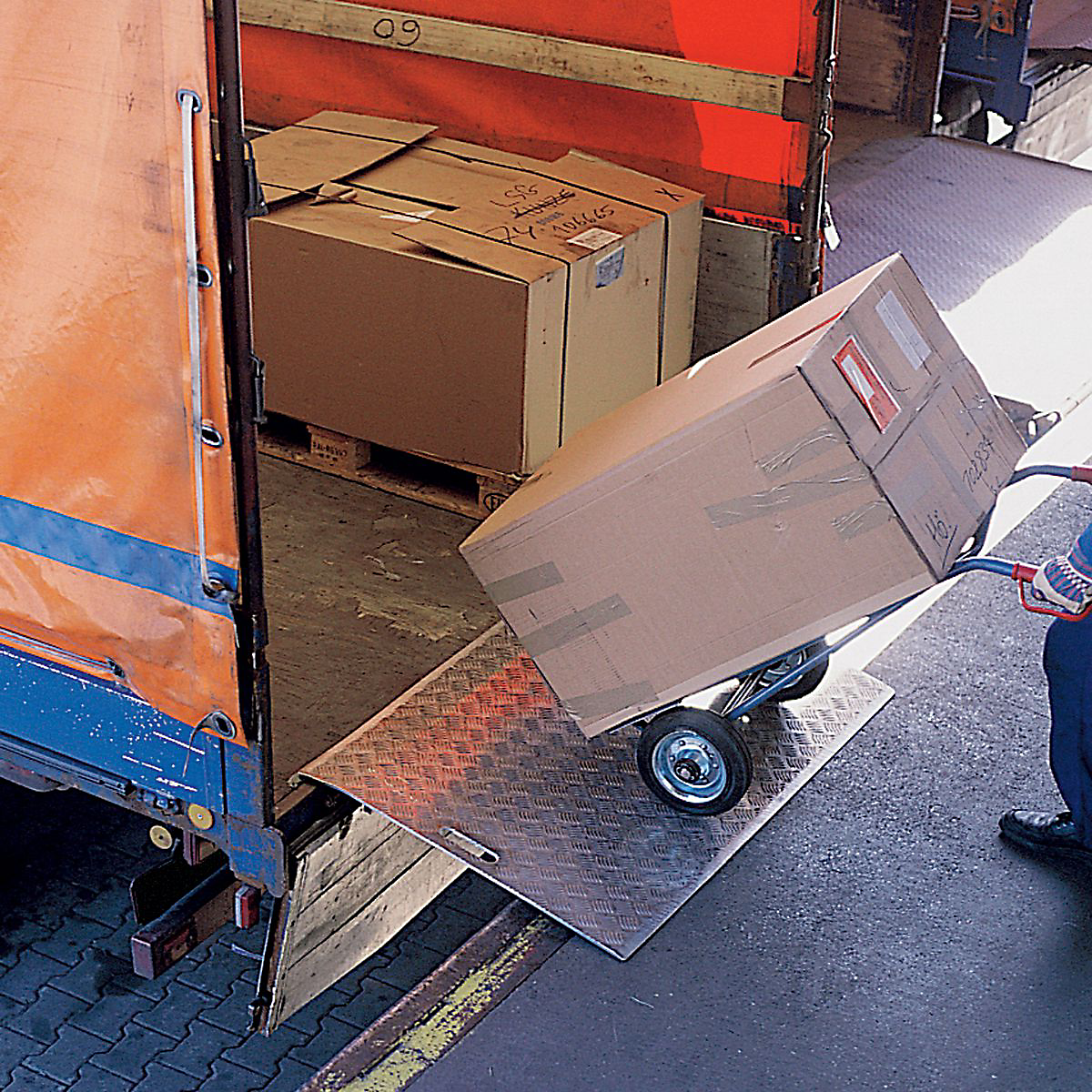

Mobile Aluminium Bridge Plates provide a perfect solution for bridging loading bays to the back of lorries or wagons.

Ideal for use in courier, goods-in/goods-out environments, these plates come in 5 different depths and can have a maximum weight load capacity or either 600kg or 1200kg!

Manufactured out of lightweight, corrosion resistant aluminium. Each plate has a perforated, non-slip surface and comes complete with 2 integrals carrying hand holes, for ease of use and storage.

Angled tops prevent these plates from slipping and coming away from the vehicle when in use.

  • Aluminium - Lightweight and corrosion resistant
  • Perforated, non-slip upper surface
  • Angled tops which secure the plate in place
  • 2x carry hand holes for increased portability
  • Available in 750, 1000, 1200, 1500 & 1800mm depths
  • Each plate is 1250mm wide
  • Maximum weight load capacities of either 600 or 1200kgs

Please note:

  • Plate's angle when in use must not exceed +/-7°
  • Plate must be overlapped onto the loading bay by over 200mm
  • Vehicle and loading ramp must be lined up straight before bridge plate is deployed
  • 350mm must be left each side of the trolley/forklift using the plate
  • Regular maintenance checks must be performed on plates to ensure safety
  • Do not use plates in wet or frosty conditions
Code: Dimensions (W x D): Weight Load Capacity: Product Weight (per rail):
KKABP1 1250 x 750 mm 600 kg 20 kg
KKABP2 1250 x 1000 mm 600 kg 28 kg
KKABP3 1250 x 1200 mm 600 kg 35 kg
KKABP4 1250 x 1500 mm 600 kg 40 kg
KKABP5 1250 x 1800 mm 600 kg 47 kg
KKABP6 1250 x 750 mm 1200 kg 24 kg
KKABP7 1250 x 1000 mm 1200 kg 34 kg
KKABP8 1250 x 1200 mm 1200 kg 41 kg
KKABP9 1250 x 1500 mm 1200 kg 47 kg
KKABP10 1250 x 1800 mm 1200 kg 57 kg

Please note: this product is made to order and therefore cannot be cancelled once ordered. As these items are made specifically to your request, they are also excluded from our returns policy unless damaged or faulty. Please contact our friendly sales team should you need further help or advice before ordering: 0333 200 5299.

‌
‌
‌
‌
‌
