Code: ALLVR01

Alloy Ramps Rest-On Van Aluminium Ramp | 1520l x 800w x 76.2d mm | Max Height: 460mm | 750kg Safe Working Load

Alloy Ramps Rest-On Aluminium Ramp
Alloy Ramps Rest-On Aluminium Ramp, Alloy Ramps Rest-On Aluminium Ramp, Alloy Ramps Rest-On Van Aluminium Ramp | 2350l x 800w x 76.2d mm | Max Height: 710mm | 750kg Safe Working Load-0
Alloy Ramps Rest-On Aluminium Ramp (Product illustration 2)-1
Alloy Ramps Rest-On Aluminium Ramp (Product illustration 3)-2
Alloy Ramps Rest-On Aluminium Ramp (Product illustration 4)-3
Alloy Ramps Rest-On Aluminium Ramp (Product illustration 5)-4
Size
Delivery time: 6-10 Working Days
Product description

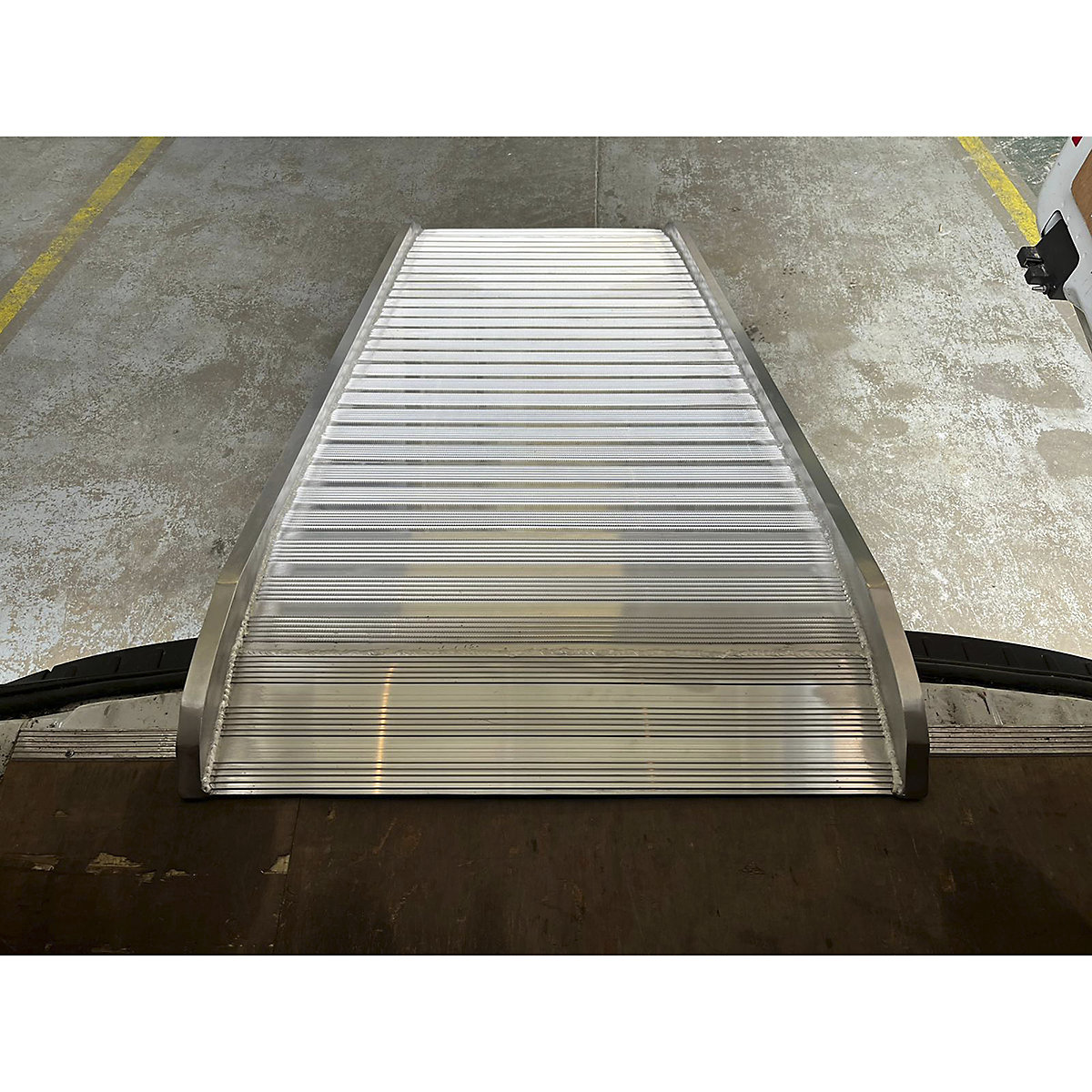

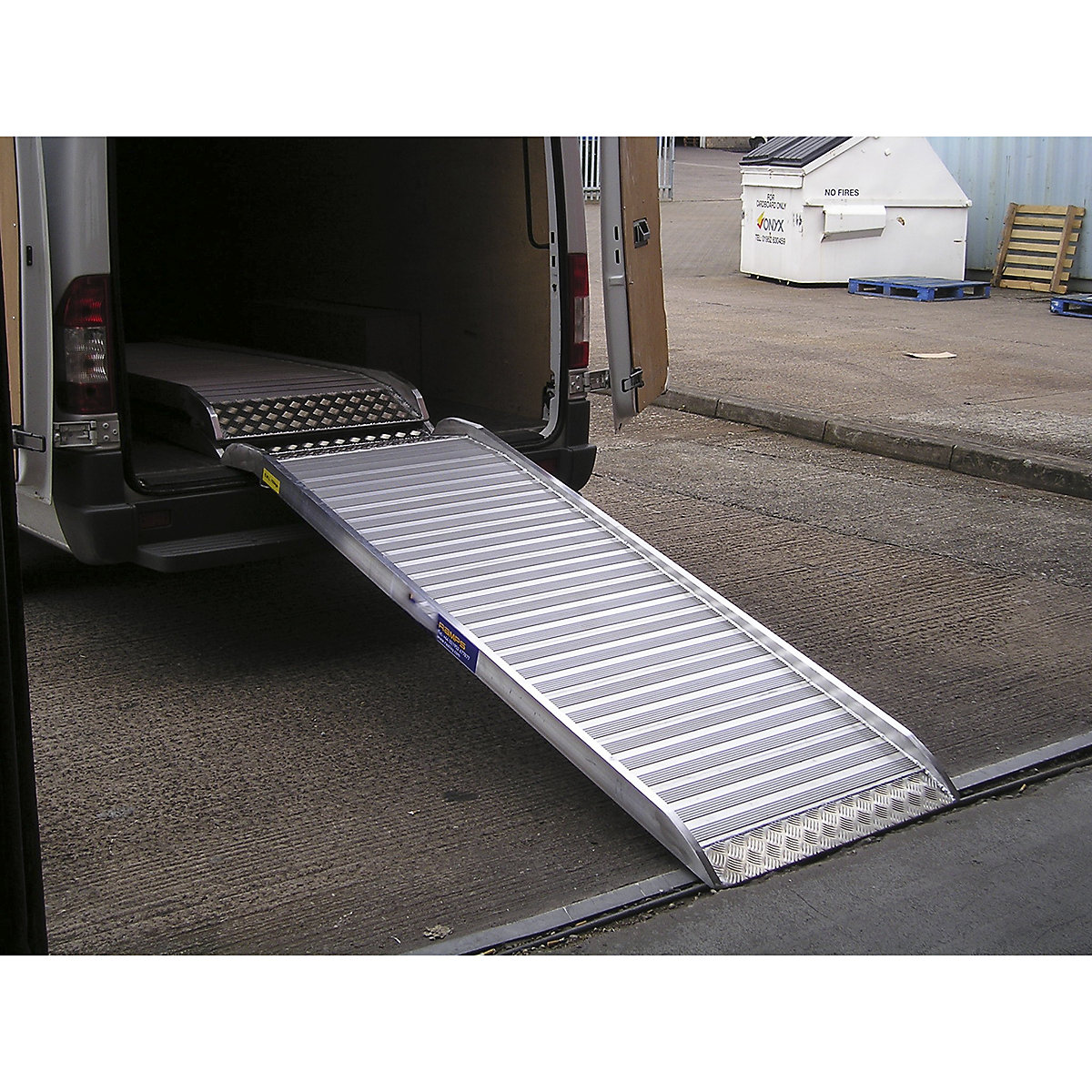

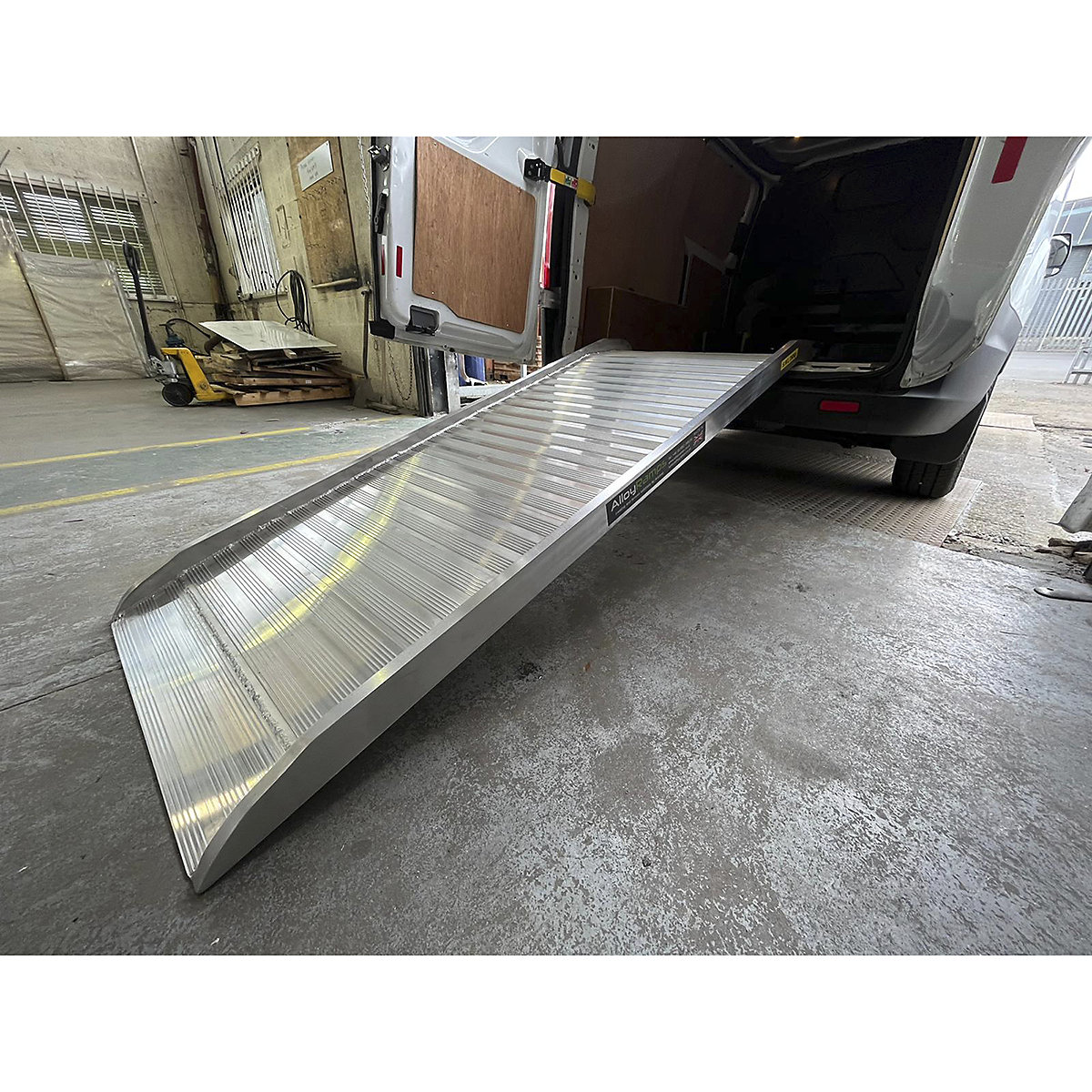

Our rest-on van ramps are the industry standard. They are manufactured in the UK and designed specifically for a range of vans.

  • Slip resistant flooring
  • Rest-on attachment; simply rests on the rear of the vehicle

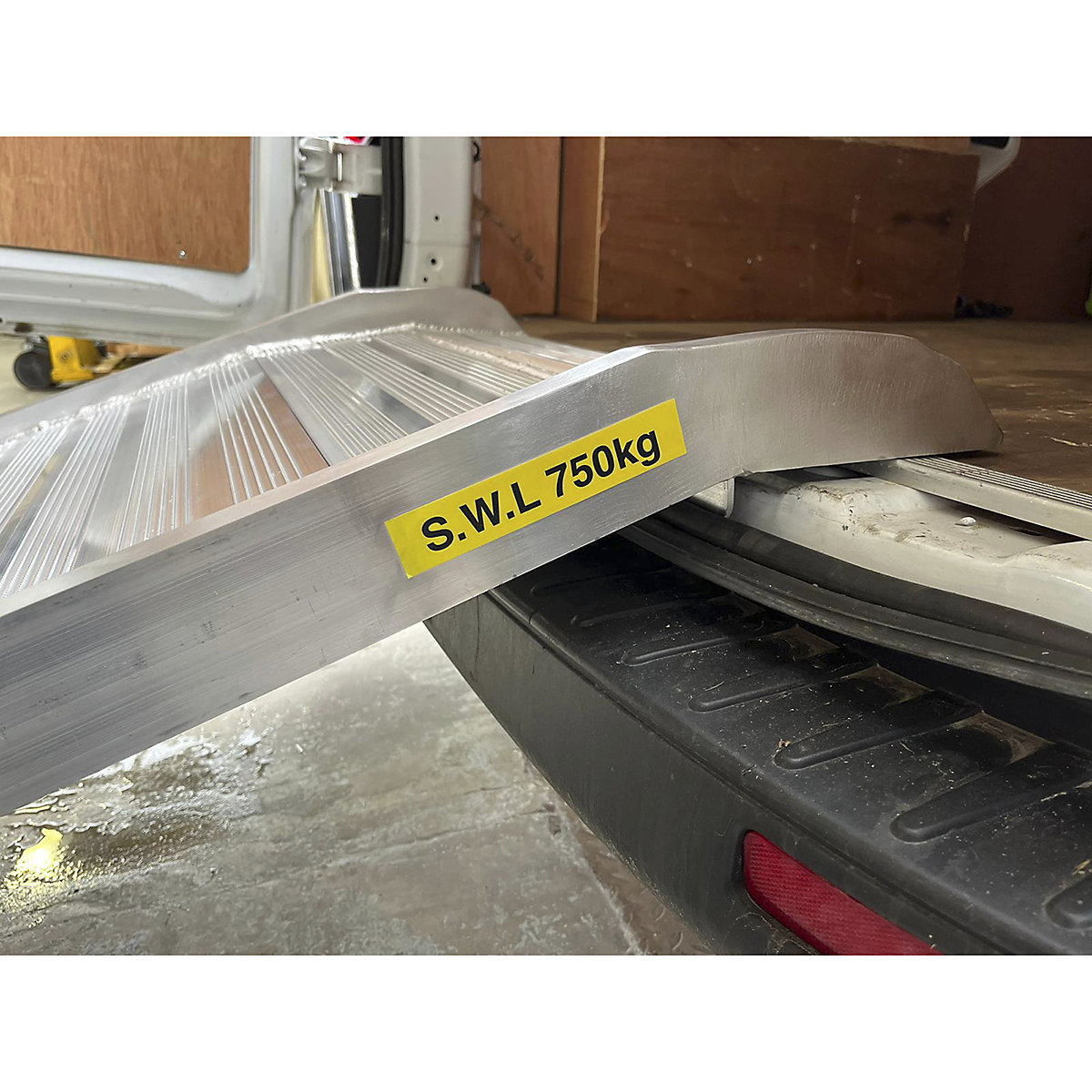

  • Load tested to take 750kg spread load
  • No drilling or fixing required
  • Tapered down to the ground for ease of access to the ramp
  • Can be used on a range of applications
  • Easily lifted off after use
  • To suit a maximum recommended height of 460mm
  • Perfect for flightcase loading
  • The ramp depth is 135mm at the highest point

Specifications

Code Max. Recommended floor height Length Total width Usable width Weight Safe working load
ALLVR01 46cm 152cm 80cm 75cm 25kg 750kg
ALLVR02 56cm 185cm 80cm 75cm 32kg 750kg
ALLVR03 64cm 210cm 80cm 75cm 35kg 750kg
ALLVR04 71cm 235cm 80cm 75cm 38kg 750kg
‌
‌
‌
‌
‌
