Code: AH28A1M

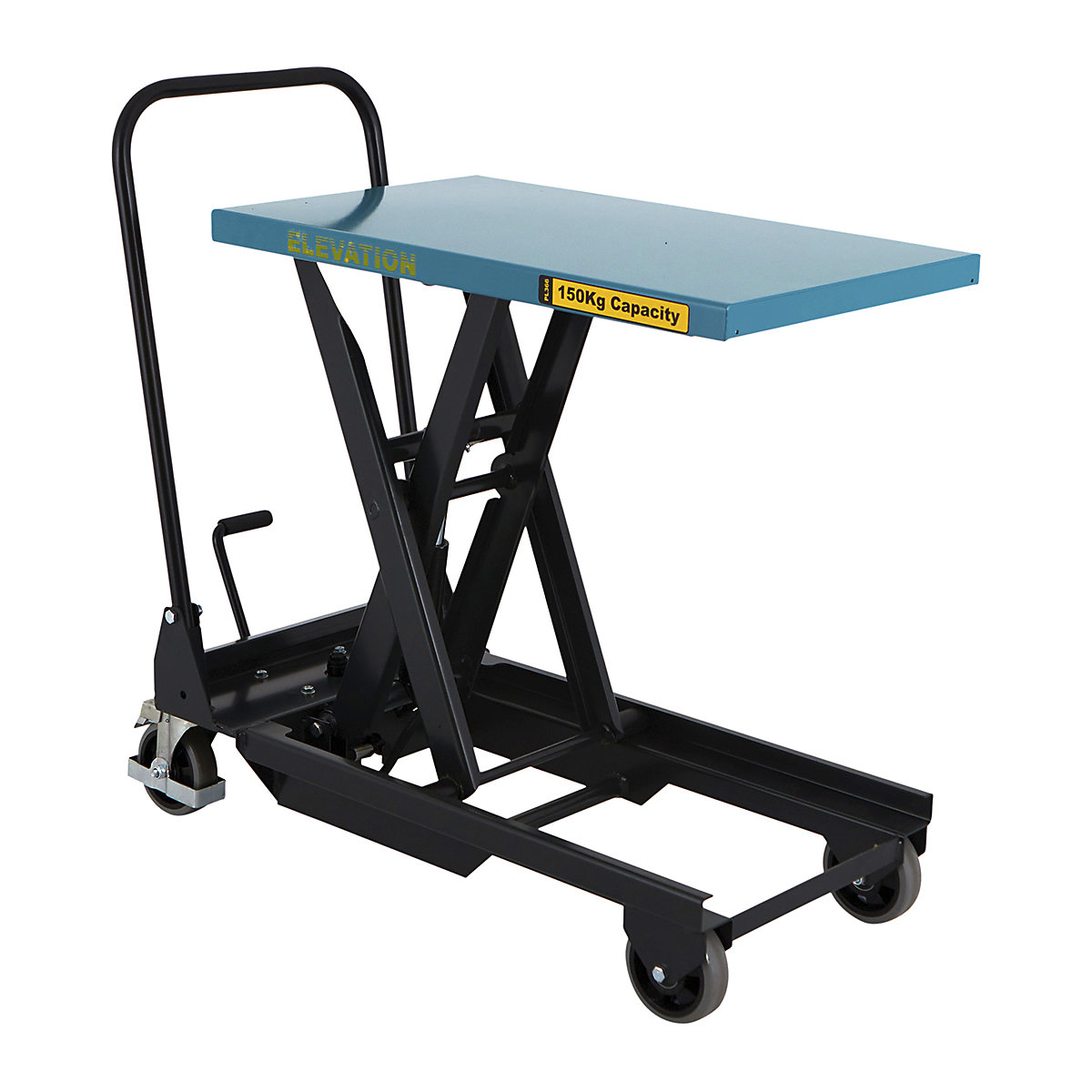

150kg Single Scissor Lift Table | Lift Height 255mm to 780mm Manual Operation | Teal

125kg - 150kg Scissor lift Tables
Capacity
Colour
Delivery time: 2-3 Working Days
Product description

Manoeuvrable and compact lifting table/work positioner. Suitable for loads of up to 150kg in light industrial environments, office buildings and pharmaceutical manufacturing plants.

  • Available in Steel or lightweight Aluminium
  • 2 x braked swivel and two fixed 125mm castors with non-marking rubber tyres
  • Overload valve and slow lowering valve for safe loading and controlled lowering speed
  • Total-stop brakes prevent any movement when loading/unloading

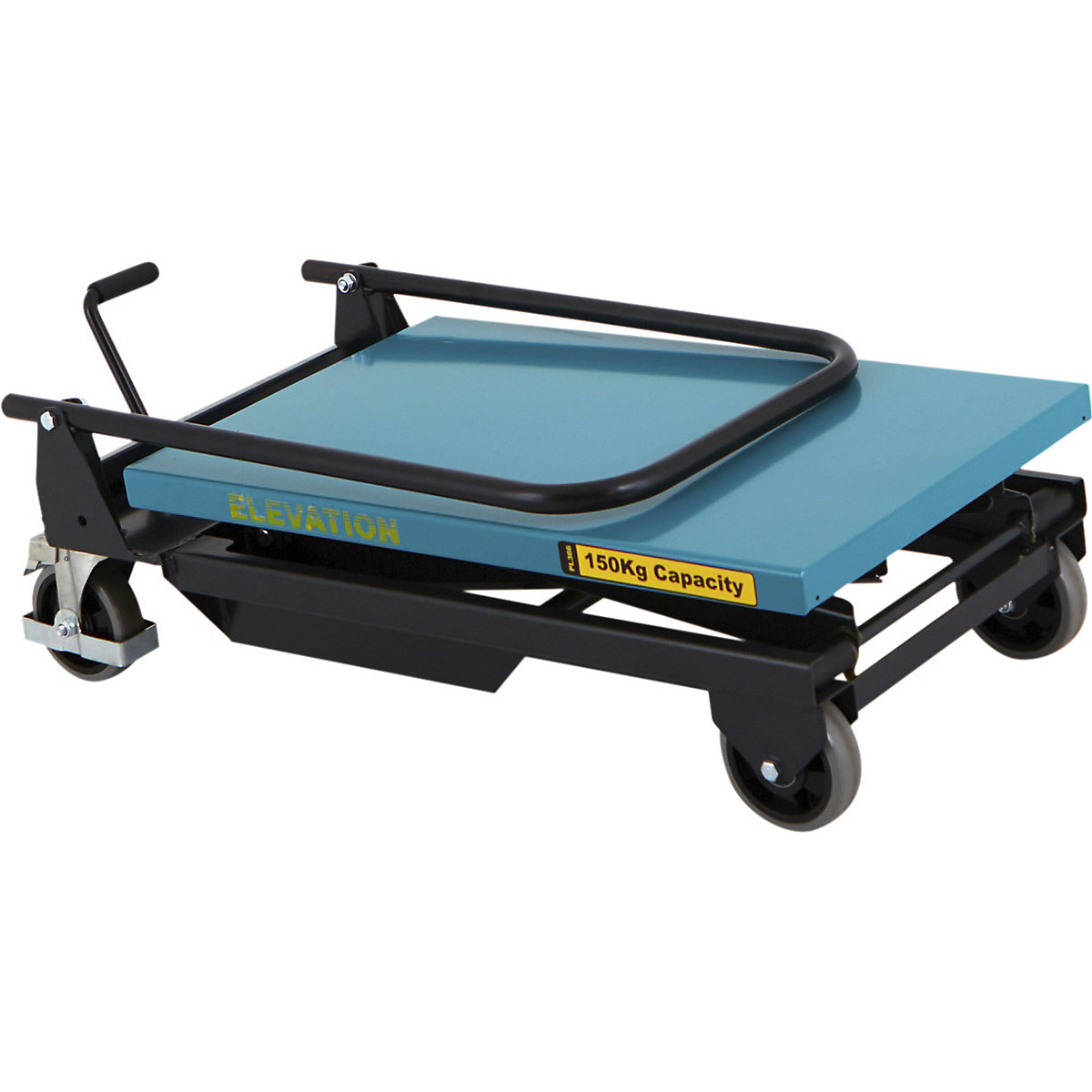

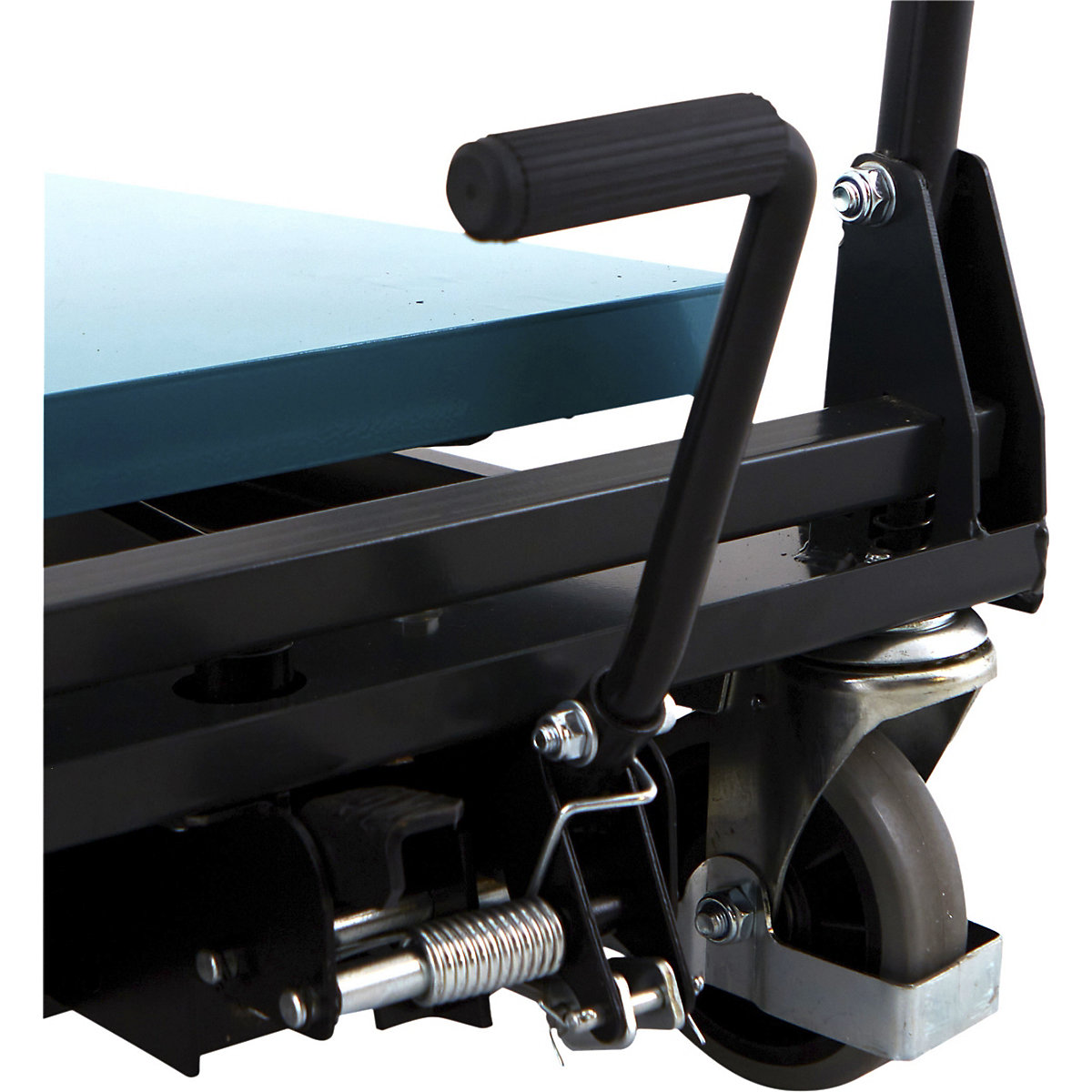

  • Folding, Hinged handle locks table in fold-flat position
  • Weight: 24kgs (Aluminium) and 41kgs (Steel)
  • Wheel Diameter: 125mm
  • Conforms to EU and British manufacturing standard BSEN 1570 and BS:5323:1980
  • 12 month parts and labour warranty

Specification

Code Overall Dimensions Platform Capacity Lift Height Lift Time Material

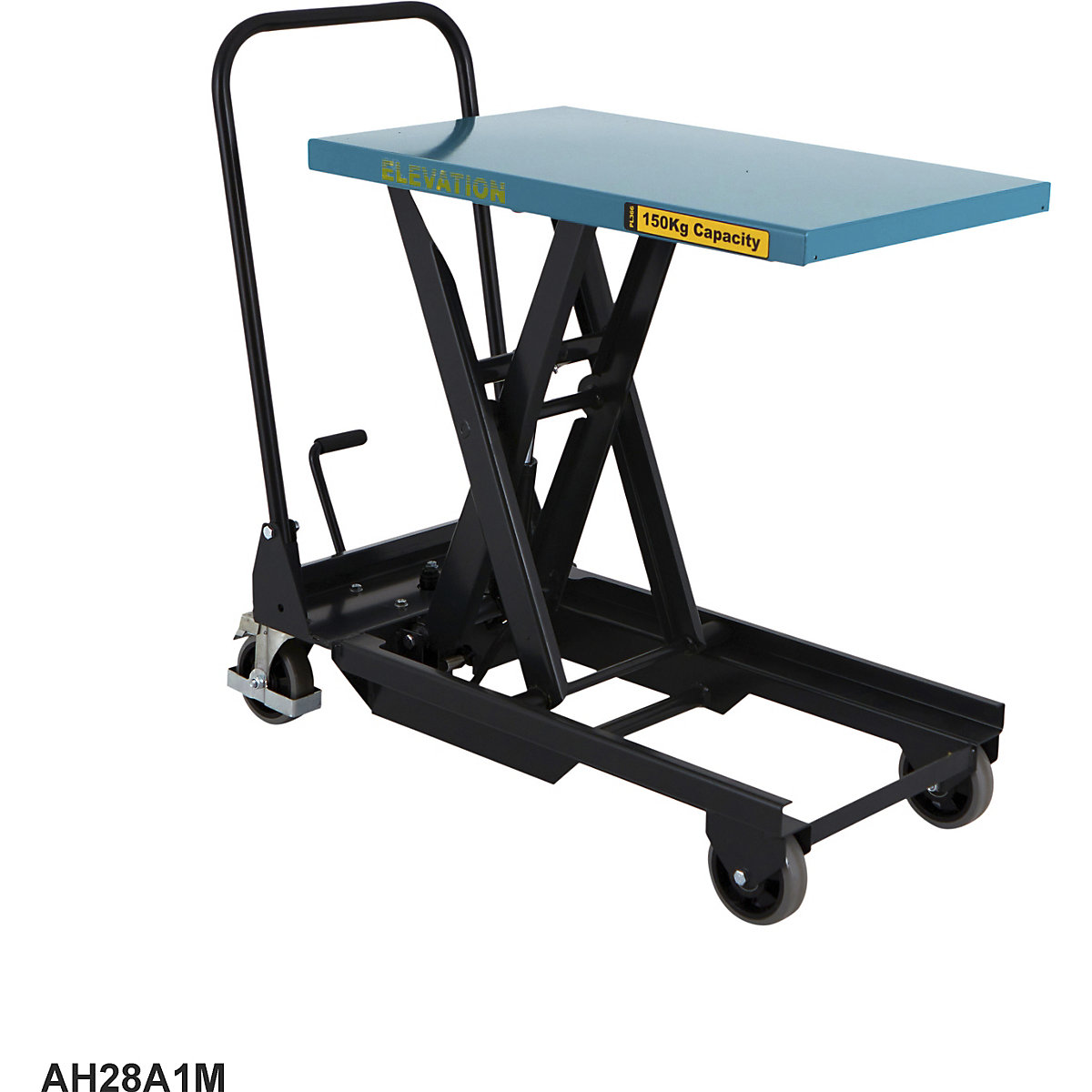

AH28A1M 450w x 990d mm 450w x 760d mm 150kg 255mm to 780mm 14 Pumps Steel

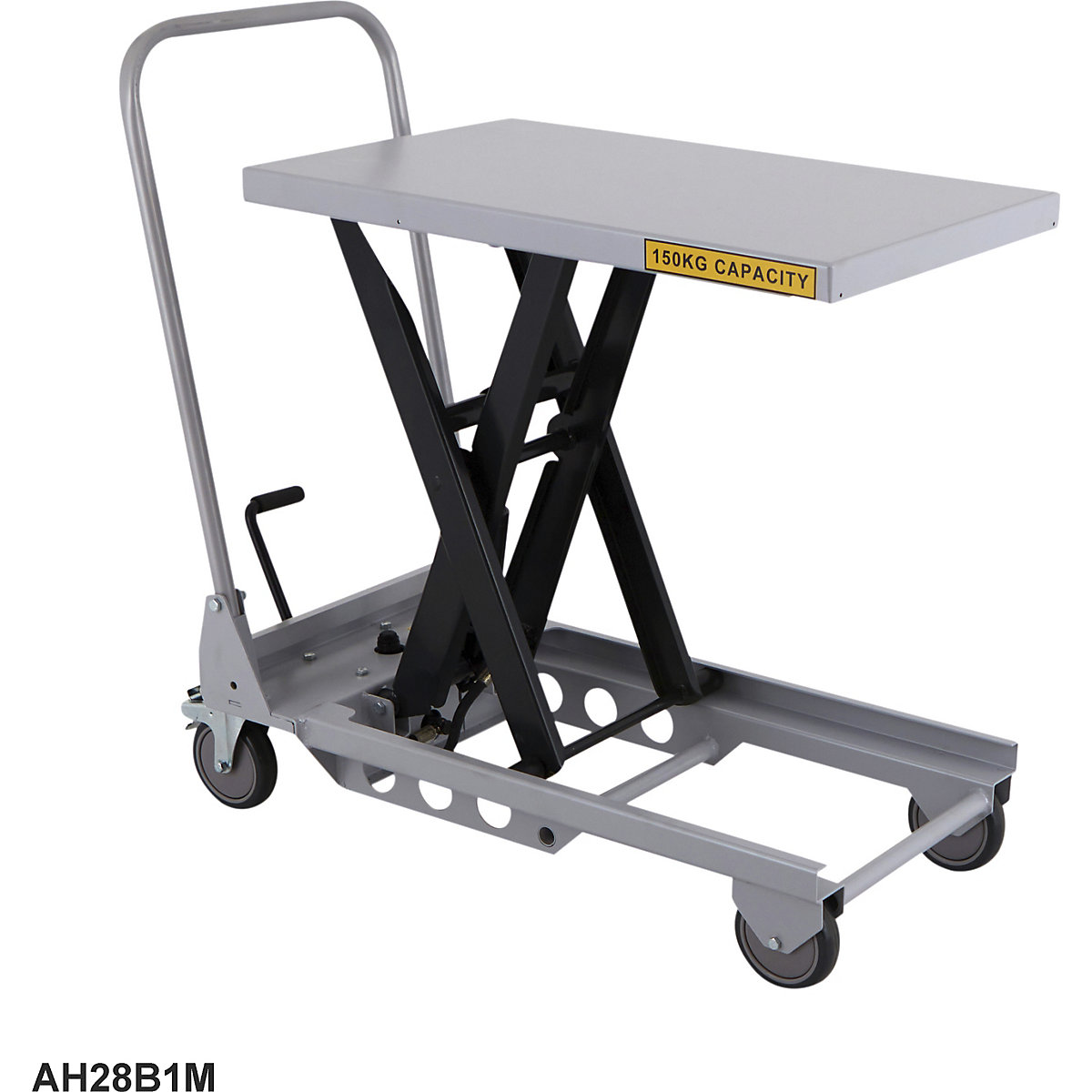

AH28B1M 450w x 990d mm 450w x 760d mm 150kg 255mm to 780mm 14 Pumps Aluminium

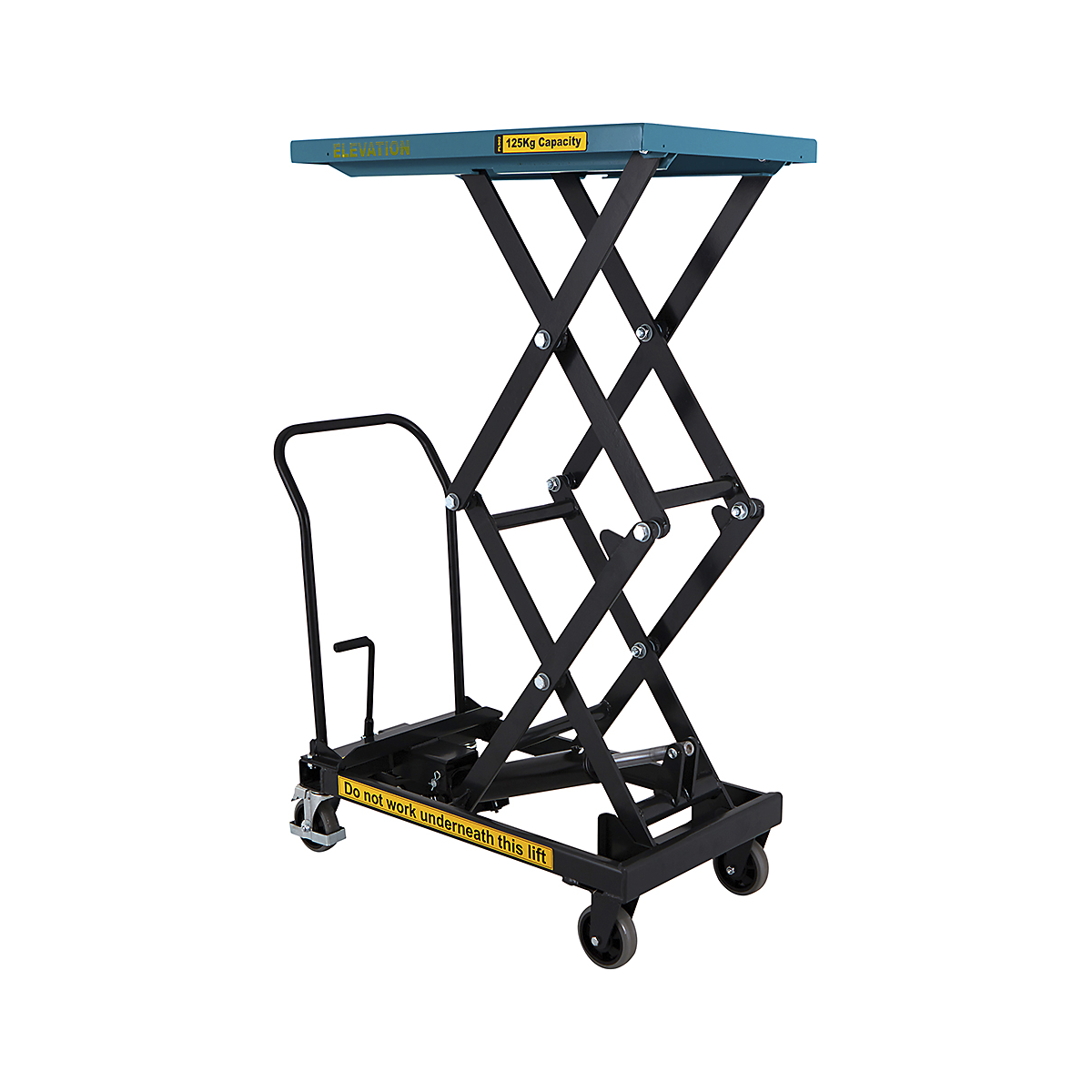

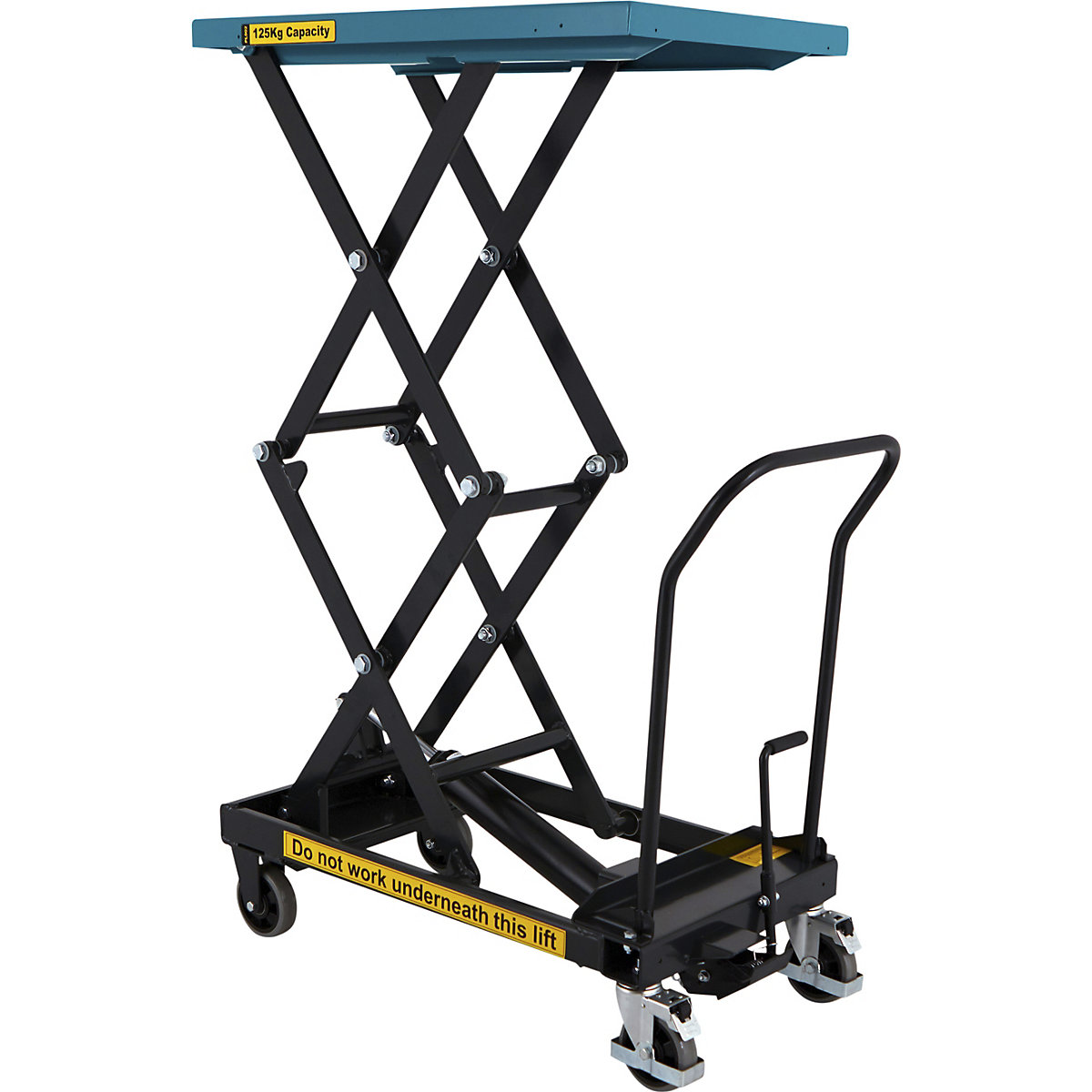

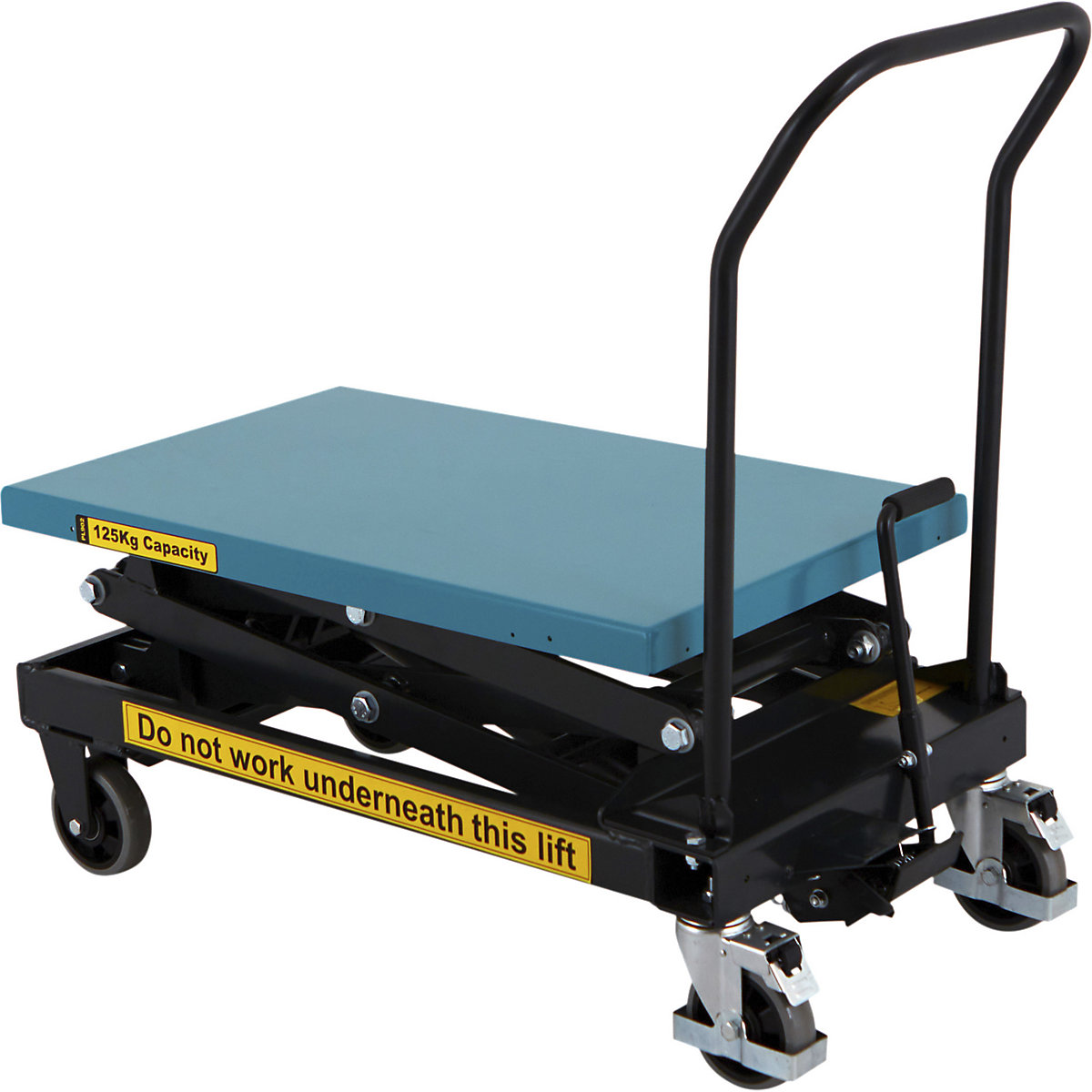

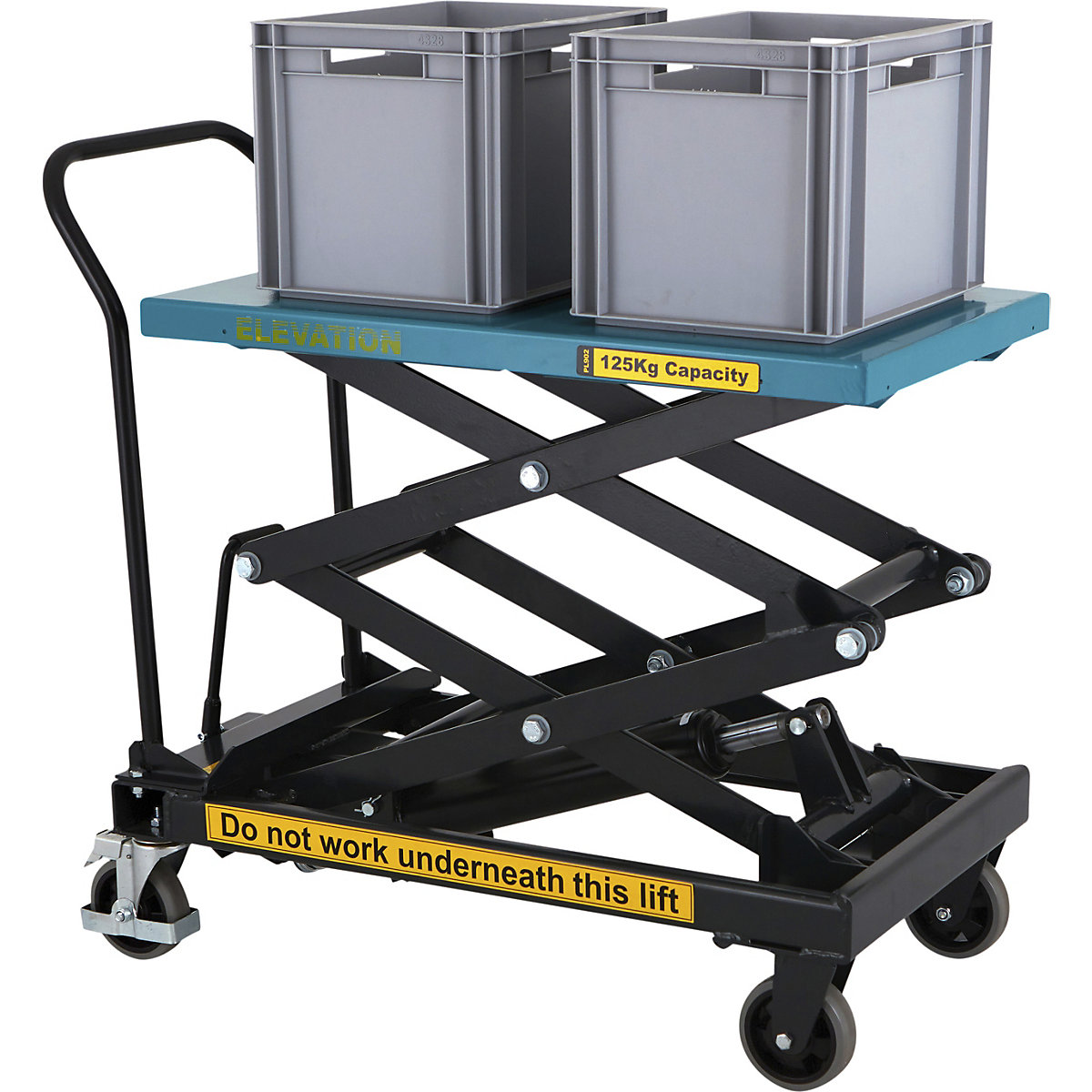

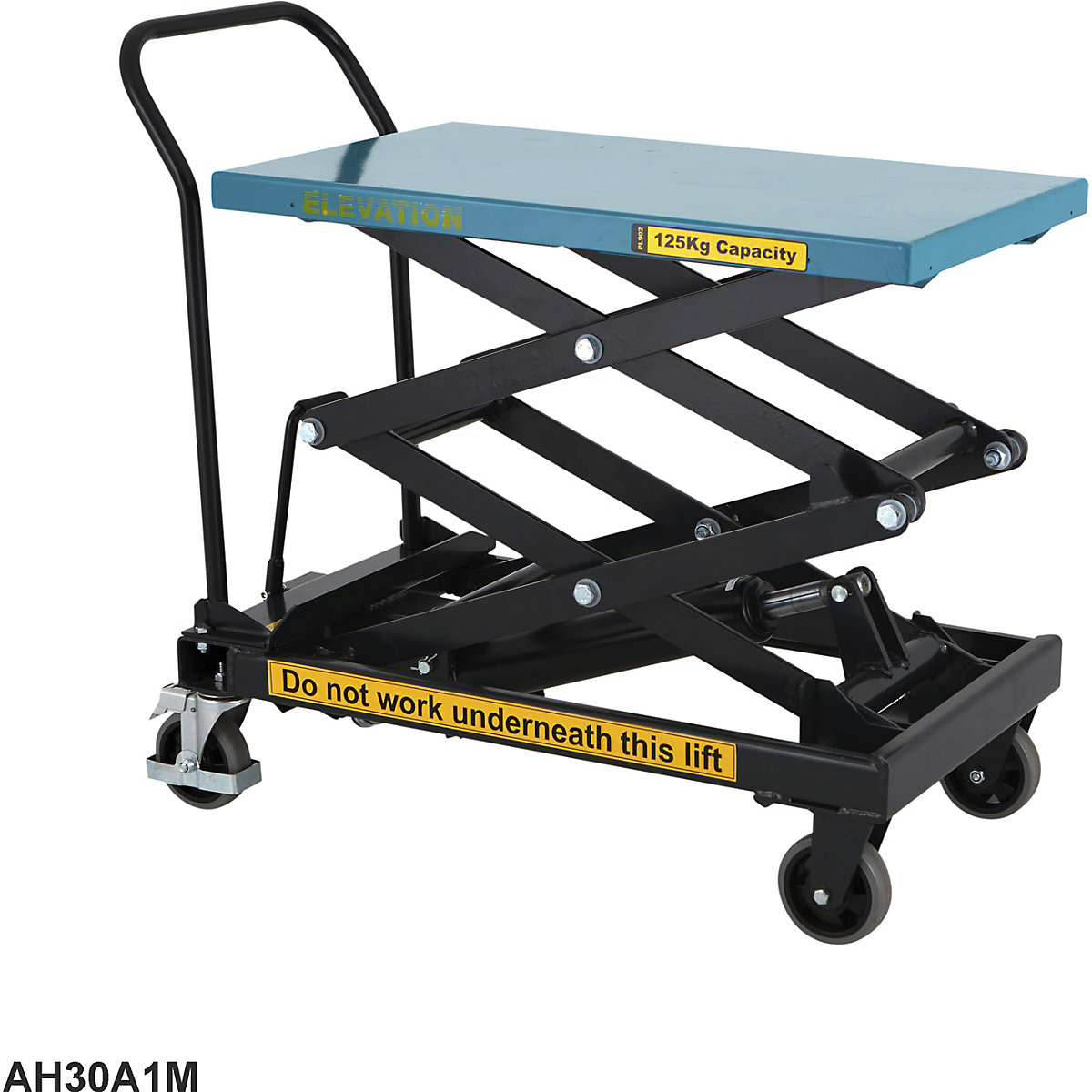

AH30A1M 450w x 990d mm 450w x 760d mm 125kg 430mm to 1420mm 14 Pumps Steel

Please note: this product is made to order and therefore cannot be cancelled once ordered. As these items are made specifically to your request, they are also excluded from our returns policy unless damaged or faulty. Please contact our friendly sales team should you need further help or advice before ordering: 0333 200 5299.

‌
‌
‌
‌
‌
